Hanwha XNP-C8253 6MP 25x AI PTZ Camera, 5-125mm Lens, IP66, White

SKU: XNP-C8253 Hanwha Vision

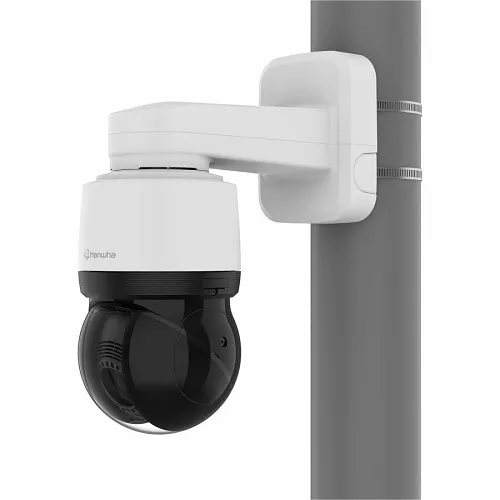

Image of SQ-XNPC8253
Product images for Hanwha XNP-C8253 6MP 25x AI PTZ Camera, 5-125mm Lens, IP66, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Long-range identification with 6MP resolution and 25x optical zoom for clear license plate and face capture
  • AI-powered person/vehicle detection and target-lock auto-tracking to reduce false alarms and ensure continuous monitoring
  • Rugged outdoor reliability: IP66, IK10, lens heater and spin-dry for dependable operation in rain, snow and dust
  • Bandwidth and storage efficient with H.265 and WiseStream III; dual memory slots enable local backup for resilient recording
  • 360° endless pan, -20° tilt look-up and DIS gyro deliver smooth tracking across large perimeters and complex sites
  • PoE+ power and multiple mount options simplify installation and integration with NVRs, access control and alarm systems

Quick Specifications

Product Model
XNP-C8253
Brand Name
Hanwha Vision
Product Name
6MP 25x AI PTZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Secure wide-area perimeters and critical infrastructure with the Hanwha Vision XNP-C8253, a rugged AI PTZ camera built for continuous surveillance and fast incident response. This network PTZ camera combines 6MP imaging and a 25x optical zoom (5–125mm) to deliver crisp, actionable video for identification, while the Wisenet 7 AI engine provides person/vehicle detection, target-lock auto-tracking and analytics-driven alerts that reduce false positives.

Designed for outdoor security, the XNP-C8253 meets IP66 and IK10 standards and operates from -40°C to +55°C; a lens heater and spin-dry feature maintain visibility in adverse weather. WiseStream III with H.265 compression lowers bandwidth and storage needs, and dual memory slots provide local backup for added resilience. The camera’s 360° endless pan, -20° tilt look-up and built-in gyro enable smooth tracking across large sites, and PoE+ simplifies deployment on poles, walls or ceilings.

Ideal for perimeter monitoring, transportation hubs and campus security, the Hanwha XNP-C8253 delivers reliable, intelligent surveillance. Contact us for pricing or deployment guidance and upgrade your monitoring with AI-enabled PTZ performance.

Features

  • Long-range identification with 6MP resolution and 25x optical zoom for clear license plate and face capture
  • AI-powered person/vehicle detection and target-lock auto-tracking to reduce false alarms and ensure continuous monitoring
  • Rugged outdoor reliability: IP66, IK10, lens heater and spin-dry for dependable operation in rain, snow and dust
  • Bandwidth and storage efficient with H.265 and WiseStream III; dual memory slots enable local backup for resilient recording
  • 360° endless pan, -20° tilt look-up and DIS gyro deliver smooth tracking across large perimeters and complex sites
  • PoE+ power and multiple mount options simplify installation and integration with NVRs, access control and alarm systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 6MP 25x AI PTZ Camera
Product Type Network Camera
Product Model XNP-C8253
Manufacturer Part Number XNPC8253
Technical Information
Lens Type Varifocal
Optical Zoom 25x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 5mm
Connectivity Technology Wired
Field of View (Vertical) 33.54°
Field of View (Horizontal) 57.42°
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 5-125mm
Lens Included Yes
Minimum Aperture f/3.73
Maximum Focal Length 125mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 7.05lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Product Information
Diameter 6.2"
Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, PTZ, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
