Hanwha XNP-C9253 PTZ IP Camera, Powered by WN7 PTZ Plus

SKU: XNP-C9253 Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

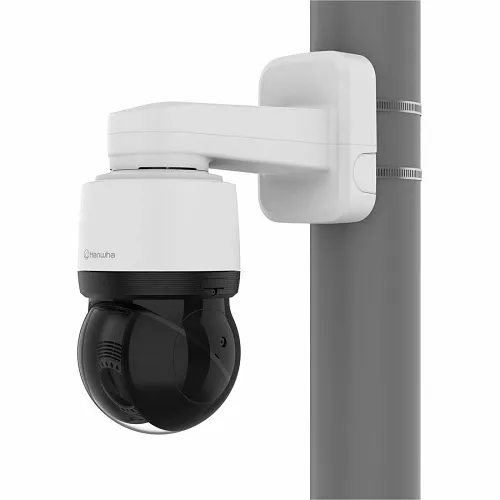

Image of SQ-XNPC9253
Product images for Hanwha XNP-C9253 PTZ IP Camera, Powered by WN7 PTZ Plus. 2 image(s) available. Click on image to view full size.

Key Features

  • AI-powered auto-tracking (Person/Vehicle) reduces false alarms and speeds incident response for faster, more accurate monitoring.
  • 4K resolution with 25x optical zoom delivers forensic detail at long ranges to identify faces, license plates and security threats.
  • Rugged outdoor design (IP66, IK10, NEMA4X) and -40°C to +55°C operation ensure continuous protection in harsh environments.
  • PoE+ and dual SD card recording simplify installation and provide resilient on-site and networked storage options.
  • Wisenet 7 chipset with WiseStream III and H.265/H.264 support lowers bandwidth and storage costs while maintaining image quality.

Quick Specifications

Product Model
XNP-C9253
Brand Name
Hanwha Vision
Product Name
4K, 25x, AI PTZ camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Secure wide-area sites with automated, high-resolution surveillance using the Hanwha Vision XNP-C9253 PTZ IP Camera. Built for critical security and monitoring applications, this PTZ camera combines Wisenet 7 AI analytics with Target Lock tracking to automatically detect and follow people and vehicles—reducing operator load and improving event capture. Capture actionable detail in 4K resolution and close in on subjects up to 25x optical zoom, while True Day/Night performance and extreme WDR preserve image clarity in challenging light. The XNP-C9253 is engineered for outdoors: IP66, IK10 and NEMA4X ratings, Spin Dry water removal, 360° endless pan and a -20° tilt look-up let you monitor perimeters, transport hubs, and city streets reliably. Network-friendly features like PoE+, WiseStream III compression, H.265/H.264 codecs, dual SD slots and TPM 2.0 security keep bandwidth down, storage resilient and data protected. Ideal for enterprise security, perimeter defense and municipal surveillance—specify the XNP-C9253 for projects that demand intelligent, rugged PTZ monitoring. Contact your Hanwha distributor to deploy this camera on your site.

Features

  • AI-powered auto-tracking (Person/Vehicle) reduces false alarms and speeds incident response for faster, more accurate monitoring.
  • 4K resolution with 25x optical zoom delivers forensic detail at long ranges to identify faces, license plates and security threats.
  • Rugged outdoor design (IP66, IK10, NEMA4X) and -40°C to +55°C operation ensure continuous protection in harsh environments.
  • PoE+ and dual SD card recording simplify installation and provide resilient on-site and networked storage options.
  • Wisenet 7 chipset with WiseStream III and H.265/H.264 support lowers bandwidth and storage costs while maintaining image quality.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 4K, 25x, AI PTZ camera
Product Type Network Camera
Product Model XNP-C9253
Manufacturer Part Number XNPC9253
Technical Information
Lens Type Varifocal
Optical Zoom 25x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 5mm
Connectivity Technology Wired
Field of View (Vertical) 33.54°
Field of View (Horizontal) 57.42°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Minimum Illumination 0.01 lux, 0.1
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 5-125mm
Lens Included Yes
Minimum Aperture f/3.73
Maximum Focal Length 125mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces XNP-9250
Physical Characteristics
Color Black, White
Weight 7.05lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Product Information
Diameter 6.2"
Mount Type Cabinet Mount, Ceiling Mount, Corner Mount, Hanging Mount, Parapet Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Country of Origin VN
Impact Protection Rating IK10
Environmental Certification FCC, NEMA, UL
