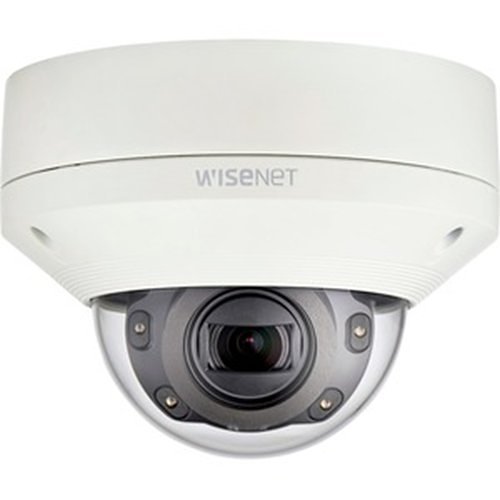

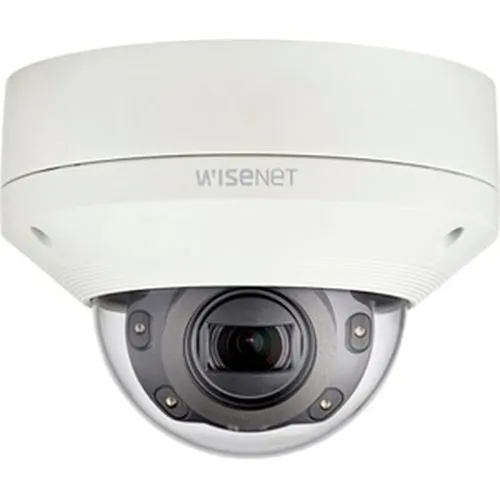

Hanwha XNV-6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 2.8-12mm Varifocal Lens, Ivory
Image of 3
Key Features
- AI-driven analytics for real-time detection of people, vehicles, faces and plates, reducing false alarms and focusing operator attention
- Clear 2MP Full HD imaging with 2.8-12mm motorized varifocal lens and 50m IR for reliable day/night surveillance and forensic playback
- Rugged outdoor design (IP66/IP67, IK10) built to withstand vandalism, dust and harsh weather for continuous perimeter protection
- Efficient H.265 compression and WiseStream II support to lower bandwidth and storage costs while preserving critical detail
- Flexible mounting and local storage (SD up to 512GB) simplify deployment across parking lots, campuses, retail and critical infrastructure
Quick Specifications
- Product Model
- XNV-6080R
- Brand Name
- Hanwha Vision
- Product Name
- 2MP IR Vandal Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha XNV-6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 2.8-12mm Varifocal Lens, Ivory
$703.80
9 items selected
Total: $2,389.80
Explore the details
Product information
XNV-6080R
Overview
Protect outdoor perimeters and critical assets with the Hanwha Vision XNV-6080R X-Series 2MP Outdoor IR Vandal Dome Camera. Engineered for professional surveillance and remote monitoring, this dome camera combines AI-driven analytics with rugged hardware to deliver reliable, actionable security. The camera records Full HD 2MP (1920x1080) video through a 2.8-12mm motorized varifocal lens, providing flexible coverage and precise framing. Built-in IR LEDs reach up to 50 meters for clear night-time identification, while 150dB WDR ensures usable detail in challenging lighting conditions. Advanced deep-learning analytics classify people, vehicles, faces and license plates in real time to reduce false alarms from environmental motion and speed up forensic searches. H.265 and WiseStream II compression reduce storage and bandwidth requirements, and the unit supports local SD storage up to 512GB. Rated IP66/IP67 and IK10, the XNV-6080R is ideal for parking lots, campus perimeters, retail exteriors and other demanding outdoor applications. Upgrade your security monitoring with a resilient, intelligent dome camera—contact us to specify or order.
Features
- AI-driven analytics for real-time detection of people, vehicles, faces and plates, reducing false alarms and focusing operator attention
- Clear 2MP Full HD imaging with 2.8-12mm motorized varifocal lens and 50m IR for reliable day/night surveillance and forensic playback
- Rugged outdoor design (IP66/IP67, IK10) built to withstand vandalism, dust and harsh weather for continuous perimeter protection
- Efficient H.265 compression and WiseStream II support to lower bandwidth and storage costs while preserving critical detail
- Flexible mounting and local storage (SD up to 512GB) simplify deployment across parking lots, campuses, retail and critical infrastructure
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP IR Vandal Dome |
| Product Type | Dome Camera |
| Product Model | XNV-6080R |
| Product Series | X |
| Country of Origin | CN, KR |
| Manufacturer Part Number | XNV-6080R |
| Technical Information | |
| Lens Type | Varifocal |
| Aspect Ratio | 16:9 |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Maximum Aperture | F1.4 |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 60fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 2.80mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 62.80° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 164.04' |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.0015lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8-12mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Focal Length | 12.00mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Height | 4.70" |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 6.30" |
| Mount Type | Corner Mount, Flush Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | SD Card |
| Recording Formats | H.264, H.265 / HEVC |
| Video | |
| Graphics Mode | Full HD |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, Highlight Compensation (HLC), SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
