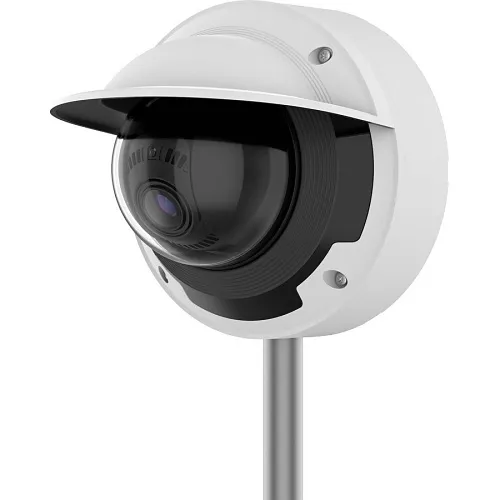

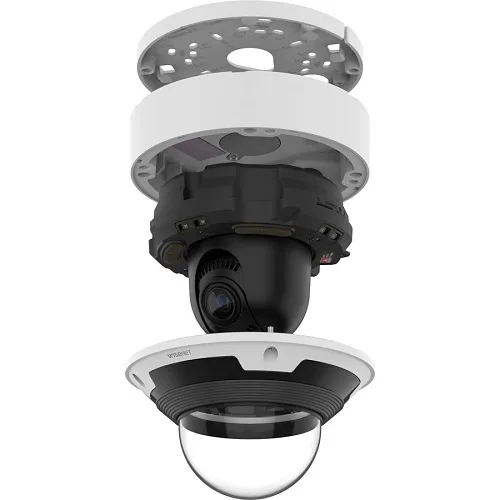

Hanwha XNV-6083RZ X Series 2MP IR Outdoor Vandal Dome AI PTRZ Camera

SKU: XNV-6083RZ Hanwha Vision
Image of SQ-XNV6083RZ
Product images for Hanwha XNV-6083RZ X Series 2MP IR Outdoor Vandal Dome AI PTRZ Camera. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Reliable 24/7 outdoor surveillance with 2MP clarity, WiseIR 50m night vision and extremeWDR for clear images in varied light
  • Motorized 2.8–12 mm varifocal lens with PTRZ remote adjustment for fast, flexible coverage without physical re-focus
  • AI-driven analytics (person, face, vehicle, license plate) plus WiseNRII/WiseStreamIII to reduce false alarms and save bandwidth
  • Rugged IP66/IP67/IP6K9K weatherproofing and IK10 vandal resistance for perimeter, parking and public-space deployments
  • H.265/H.264 support with up to 120 fps, onboard memory and remote management for efficient recording and simplified monitoring

Quick Specifications

Product Model
XNV-6083RZ
Brand Name
Hanwha Vision
Product Name
2MP IR Outdoor Vandal Dome AI PTRZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Protect large outdoor spaces with reliable, AI-enhanced surveillance using the Hanwha Vision XNV-6083RZ X Series 2MP IR Outdoor Vandal Dome AI PTRZ Camera. Designed for perimeter, parking and critical infrastructure monitoring, this network camera delivers 2MP image clarity and a motorized 2.8–12 mm varifocal lens with PTRZ remote adjustment so you can zoom and focus without site visits. Low-light performance is strengthened by WiseIR long-range infrared (up to 50 m) and extremeWDR for readable detail in high-contrast scenes. Built-in AI (NPU) powers WiseNRII and WiseStreamIII for intelligent noise reduction, bandwidth-efficient H.265 streaming and accurate object, face and vehicle detection—reducing false positives and accelerating incident review. The IK10-rated dome and IP66/IP67/IP6K9K ingress protection ensure durability against vandalism and harsh weather. With RJ-45 network connectivity, onboard storage and remote management, the XNV-6083RZ simplifies deployment for security integrators and IT teams. Upgrade your security infrastructure with this rugged, high-performance camera for dependable perimeter monitoring and 24/7 surveillance.

Features

  • Reliable 24/7 outdoor surveillance with 2MP clarity, WiseIR 50m night vision and extremeWDR for clear images in varied light
  • Motorized 2.8–12 mm varifocal lens with PTRZ remote adjustment for fast, flexible coverage without physical re-focus
  • AI-driven analytics (person, face, vehicle, license plate) plus WiseNRII/WiseStreamIII to reduce false alarms and save bandwidth
  • Rugged IP66/IP67/IP6K9K weatherproofing and IK10 vandal resistance for perimeter, parking and public-space deployments
  • H.265/H.264 support with up to 120 fps, onboard memory and remote management for efficient recording and simplified monitoring
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP IR Outdoor Vandal Dome AI PTRZ Camera
Product Type Network Camera
Product Model XNV-6083RZ
Product Series X
Manufacturer Part Number XNV6083RZ
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 4.3x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.4
Night Vision Type Infrared
Maximum Frame Rate 120fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 63°
Field of View (Horizontal) 120°
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -58°F (-50°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 12mm
Lens Included Yes
Minimum Aperture f/3.6
Maximum Focal Length 12mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces XND-6081VZ
Physical Characteristics
Color White
Weight 4.41lb
Durability Dustproof, Impact Resistant, Waterproof
Power Description
Input Voltage 12V DC
Product Information
Diameter 7.1"
Mount Type Pendant Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
