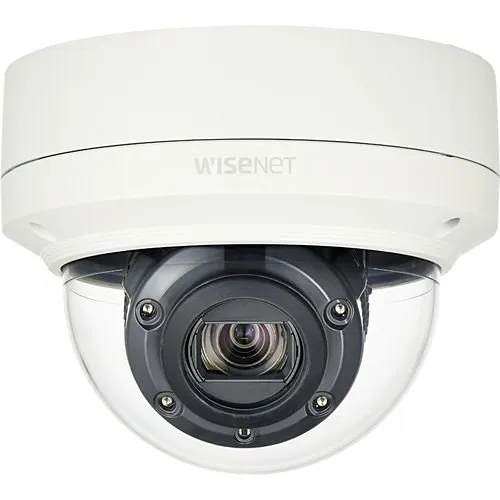

Hanwha XNV-6120R X Series 2MP Dome IP Camera, 5.2-62.4mm Varifocal Lens, 12x Optical Zoom, Outdoor Vandal-Resistant, Ivory

SKU: XNV-6120R Hanwha Vision
Wisenet XNV-6120R 2 Megapixel Indoor/Outdoor Full HD Network Camera - Color - Dome
Product images for Hanwha XNV-6120R X Series 2MP Dome IP Camera, 5.2-62.4mm Varifocal Lens, 12x Optical Zoom, Outdoor Vandal-Resistant, Ivory. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver clear, actionable Full HD images with a 2MP sensor and 12x optical zoom to identify faces and license plates at distance
  • Maintain continuous outdoor surveillance with IP66/IP67, NEMA 4X and IK10 vandal resistance for harsh and high-risk environments
  • Reduce bandwidth and storage needs with H.265, MJPEG support and WiseStream II while retaining smooth 60 fps video for critical events
  • Improve incident response with onboard analytics (loitering, directional/fog/audio detection, digital auto tracking) that cut false alarms
  • Ensure 24/7 monitoring flexibility: up to 70m IR night vision, local SD storage (up to 512GB) and multiple mounting options for easy deployment

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
2MP Outdoor Network IR 12X Optical Zoom Dome Camera
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Built for resilient, high-performance outdoor surveillance, the Hanwha Vision XNV-6120R 2MP Dome IP Camera delivers clear, dependable monitoring for commercial sites, campuses and municipal projects. The 2MP Full HD sensor combined with a 5.2–62.4mm varifocal lens and 12x optical zoom gives security teams the range and detail to quickly identify people and vehicles without relying solely on digital zoom. Engineered for real-world conditions, the XNV-6120R carries IP66/IP67 weatherproofing and IK10 impact protection for uninterrupted operation in harsh environments, plus 70m IR for nighttime visibility. Network-friendly H.265 compression and WiseStream II lower bandwidth and storage costs while maintaining smooth 60 fps streams during critical incidents. Built-in analytics — including loitering, directional detection, audio detection and digital auto-tracking — focus operator attention and reduce false alerts so teams can act faster. NDAA-compliant and backed by a 3-year warranty, this Hanwha Vision dome camera is ideal for perimeter security, parking lots, retail and transit hubs. Add the XNV-6120R to your security infrastructure for reliable, high-resolution monitoring and smarter surveillance today.

Features

  • Deliver clear, actionable Full HD images with a 2MP sensor and 12x optical zoom to identify faces and license plates at distance
  • Maintain continuous outdoor surveillance with IP66/IP67, NEMA 4X and IK10 vandal resistance for harsh and high-risk environments
  • Reduce bandwidth and storage needs with H.265, MJPEG support and WiseStream II while retaining smooth 60 fps video for critical events
  • Improve incident response with onboard analytics (loitering, directional/fog/audio detection, digital auto tracking) that cut false alarms
  • Ensure 24/7 monitoring flexibility: up to 70m IR night vision, local SD storage (up to 512GB) and multiple mounting options for easy deployment
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP Outdoor Network IR 12X Optical Zoom Dome Camera
Product Type Dome Camera
Product Model XNV-6120R
Product Series X
Manufacturer Part Number XNV-6120R
Technical Information
Night Vision Yes
Optical Zoom 12x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 5.2mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 229.66 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.03 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 5.2-62.4mm
Lens Included Yes
Minimum Aperture f/3
Maximum Focal Length 62.4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Ivory
Height 5.1"
Weight 2.19lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 6.3"
Mount Type Box Mount, Ceiling Mount, Flush Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
