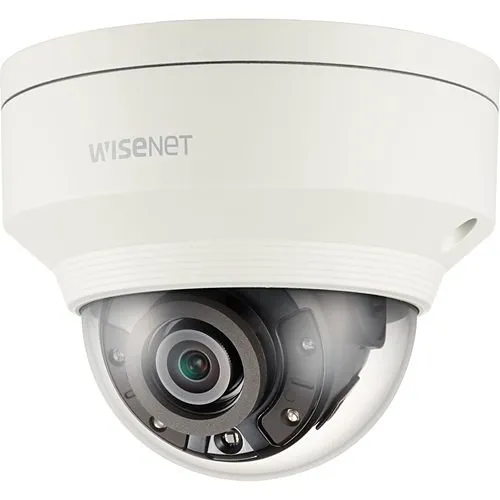

Hanwha XNV-8020R X-Series 5MP IR Outdoor Vandal Dome Camera, 3.7mm Fixed Lens, Ivory
Image of 3
Key Features
- Reliable 24/7 outdoor surveillance with 5MP resolution and 98' (30 m) IR for clear evidence capture day or night
- Tough, tamper-resistant design (IK10, IP67/NEMA 4X) that minimizes maintenance and protects assets in harsh environments
- Bandwidth- and storage-efficient WiseStream II + H.265 encoding reduces operating costs without sacrificing image quality
- Intelligent analytics (people counting, loitering, directional detection, heatmap, sound classification) to support proactive monitoring and operational decisions
- Flexible deployment with PoE, 12VDC/24VAC power options and a simple USB-assisted installation for faster onsite setup
Quick Specifications
- Product Model
- XNV-8020R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP IR Outdoor Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha XNV-8020R X-Series 5MP IR Outdoor Vandal Dome Camera, 3.7mm Fixed Lens, Ivory
$550.80
10 items selected
Total: $2,742.32
Product Information Tabs
Overview
Secure perimeters and high-risk outdoor areas with dependable, high-resolution imaging from the Hanwha Vision XNV-8020R 5MP IR outdoor vandal dome camera. Designed for commercial security and surveillance, this dome camera delivers 5MP detail and a wide 3.7 mm fixed lens to capture critical facial and license plate information, while powerful IR LEDs provide up to 98' (30 m) of night coverage for continuous monitoring. With 120 dB WDR and True D/N performance the camera maintains usable images in challenging lighting and backlit scenes.
Built for real-world deployments, the XNV-8020R combines IK10 vandal resistance and IP67/NEMA 4X weather protection to reduce downtime and service calls. WiseStream II with H.265 compression cuts bandwidth and storage needs—helpful for multi-site installations—while onboard analytics (people counting, loitering, directional detection, sound classification) enable automated alerts and smarter incident response. PoE, 12VDC/24VAC power options and USB-assisted focus make installation fast and cost-effective.
Ideal for retail, transportation hubs, campuses and perimeter monitoring, the Hanwha Vision XNV-8020R is a rugged, high-performance solution for continuous security and operational insight. Contact sales to specify and deploy this camera in your next surveillance project.
Features
- Reliable 24/7 outdoor surveillance with 5MP resolution and 98' (30 m) IR for clear evidence capture day or night
- Tough, tamper-resistant design (IK10, IP67/NEMA 4X) that minimizes maintenance and protects assets in harsh environments
- Bandwidth- and storage-efficient WiseStream II + H.265 encoding reduces operating costs without sacrificing image quality
- Intelligent analytics (people counting, loitering, directional detection, heatmap, sound classification) to support proactive monitoring and operational decisions
- Flexible deployment with PoE, 12VDC/24VAC power options and a simple USB-assisted installation for faster onsite setup
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP IR Outdoor Dome |
| Product Type | Dome Camera |
| Product Model | XNV-8020R |
| Product Series | X |
| Manufacturer Part Number | XNV-8020R |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.7mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3096 x 2094 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.2 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.7mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.7mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Width | 4.7" |
| Height | 3.84" |
| Weight | 1.38 lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.72" |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
