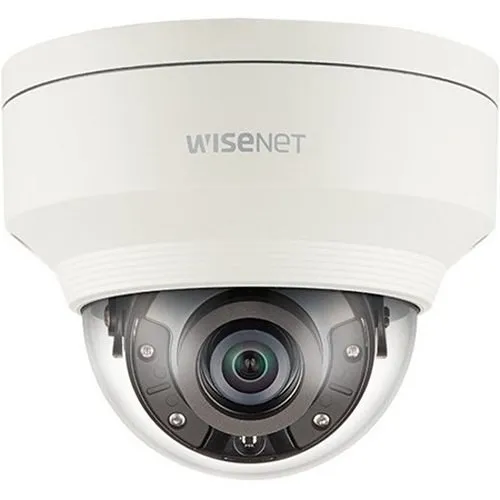

Hanwha XNV-8040R X-Series 5MP IR Outdoor Vandal Dome Camera, 7mm Fixed Lens, Ivory

SKU: XNV-8040R Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Wisenet XNV-8040R 5 Megapixel Network Camera - Dome
Product images for Hanwha XNV-8040R X-Series 5MP IR Outdoor Vandal Dome Camera, 7mm Fixed Lens, Ivory. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crisp 5MP imaging with a 7mm fixed lens for clear identification and evidence capture at distance
  • 30 m IR night vision and strong low-light performance to ensure dependable 24/7 monitoring
  • IK10 vandal resistance plus IP66/IP67 weatherproofing for long-term outdoor durability
  • H.265 with WiseStream II reduces bandwidth and storage costs while preserving image quality
  • Built-in analytics (people counting, loitering, directional detection, tamper) to speed incident response
  • PoE networking and remote management simplify installation and integration into existing security systems

Quick Specifications

Product Model
XNV-8040R
Brand Name
Hanwha Vision
Product Name
5M Vandal-Resistant Network IR Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Secure outdoor perimeters and high-traffic areas with the Hanwha Vision XNV-8040R X-Series 5MP IR Outdoor Vandal Dome Camera. Designed for enterprise surveillance and continuous monitoring, this vandal-resistant dome delivers high-resolution 5MP video through a 7mm fixed lens so you can identify people and incidents with confidence. Night-time and low-light events are reliably captured with up to 30 meters of IR illumination, while IK10 impact protection and IP66/IP67 sealing keep the camera operational in harsh environments.

The XNV-8040R lowers operational costs through H.265 compression and WiseStream II support, reducing bandwidth and storage without sacrificing image clarity. Advanced edge analytics — including people counting, loitering and directional detection — turn footage into actionable security intelligence for faster response and smarter resource allocation. PoE connectivity and remote management make deployment and integration straightforward for IT and security teams.

Ideal for retail, transportation hubs, campuses and critical infrastructure, the Hanwha Vision XNV-8040R is a robust, analytics-ready dome camera for demanding outdoor security applications. Add it to your surveillance system today.

Features

  • Crisp 5MP imaging with a 7mm fixed lens for clear identification and evidence capture at distance
  • 30 m IR night vision and strong low-light performance to ensure dependable 24/7 monitoring
  • IK10 vandal resistance plus IP66/IP67 weatherproofing for long-term outdoor durability
  • H.265 with WiseStream II reduces bandwidth and storage costs while preserving image quality
  • Built-in analytics (people counting, loitering, directional detection, tamper) to speed incident response
  • PoE networking and remote management simplify installation and integration into existing security systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5M Vandal-Resistant Network IR Dome Camera
Product Type Network Camera
Product Model XNV-8040R
Product Series X
Manufacturer Part Number XNV-8040R
Technical Information
Lens Type Fixed
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 7mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1600 x 1200
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 7mm
Maximum Focal Length 7mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.8"
Weight 1.36 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 4.7"
Mount Type Corner Mount, Pole Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
