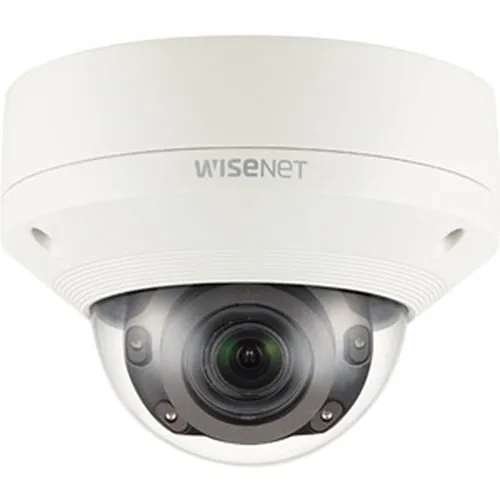

Hanwha XNV-8080R X-Series 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Varifocal Lens, Ivory

SKU: XNV-8080R Hanwha Vision
Wisenet XNV-8080R 5 Megapixel Network Camera
Product images for Hanwha XNV-8080R X-Series 5MP IR Outdoor Vandal Dome Camera, 3.9-9.4mm Varifocal Lens, Ivory. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Capture actionable 5MP detail for identification and forensic review, even at distance
  • Motorized 3.9–9.4mm varifocal lens lets installers quickly adjust field-of-view for entrances, lots or corridors
  • 50m IR and advanced low-light processing deliver reliable night-time monitoring and clear video after dark
  • IK10 vandal resistance and IP66/IP67/NEMA4X weatherproofing ensure continuous outdoor operation
  • Built-in analytics (loitering, directional detection, tamper, sound classification) reduce false alarms and speed response
  • H.265/WiseStream II support plus onboard SD (up to 512GB) minimize bandwidth and storage costs; includes 3-year warranty

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Product Line
Wisenet
Product Name
5MP Vandal IR Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect perimeters and critical assets with the Hanwha Vision XNV-8080R X-Series 5MP IR Outdoor Vandal Dome Camera — a rugged network camera engineered for demanding outdoor surveillance and 24/7 monitoring. The XNV-8080R delivers true 5MP resolution so you capture readable license plates and facial detail, while the 3.9–9.4mm motorized varifocal lens lets integrators fine-tune the field of view for entrances, lots, or corridors without swapping lenses. Powerful IR illumination reaches up to 50 meters (164 ft) and, combined with Hanwha’s X-Series image processor and H.265/WiseStream II compression, provides clear low-light performance while reducing bandwidth and storage demands.

Built for real-world installations, the dome’s IK10 vandal resistance and IP66/IP67/NEMA4X rating protect against tampering, dust and harsh weather. Intelligent analytics — including loitering, directional detection, tamper and sound classification — cut false alarms and accelerate incident response. With multiple streams, onboard SD storage up to 512GB and a 3-year warranty, the XNV-8080R is ideal for parking lots, retail exteriors, campuses and transportation hubs. Contact your distributor or add to cart to upgrade your security and monitoring solution.

Features

  • Capture actionable 5MP detail for identification and forensic review, even at distance
  • Motorized 3.9–9.4mm varifocal lens lets installers quickly adjust field-of-view for entrances, lots or corridors
  • 50m IR and advanced low-light processing deliver reliable night-time monitoring and clear video after dark
  • IK10 vandal resistance and IP66/IP67/NEMA4X weatherproofing ensure continuous outdoor operation
  • Built-in analytics (loitering, directional detection, tamper, sound classification) reduce false alarms and speed response
  • H.265/WiseStream II support plus onboard SD (up to 512GB) minimize bandwidth and storage costs; includes 3-year warranty
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line Wisenet
Product Name 5MP Vandal IR Dome Camera
Product Type Network Camera
Product Model XNV-8080R
Product Series X
Manufacturer Part Number XNV-8080R
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 2.4x
Field of View H : 92.1° ~ 38.7°/ V : 67.2° ~ 29.0°/ D : 119.9° ~ 48.6°
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.3
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.9mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 164.04 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.9-9.4mm
Lens Included Yes
Maximum Focal Length 9.4mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces XNV-8080R/VWF
Physical Characteristics
Color White
Width 6.3"
Height 4.7"
Weight 2.23 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 6.3"
Mount Type Ceiling Mount, Corner Mount, Flush Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
