Hanwha XNV-9083RZ 4K AI IR PTRZ Vandal Dome Camera

SKU: XNV-9083RZ Hanwha Vision
Image of SQ-XNV9083RZ

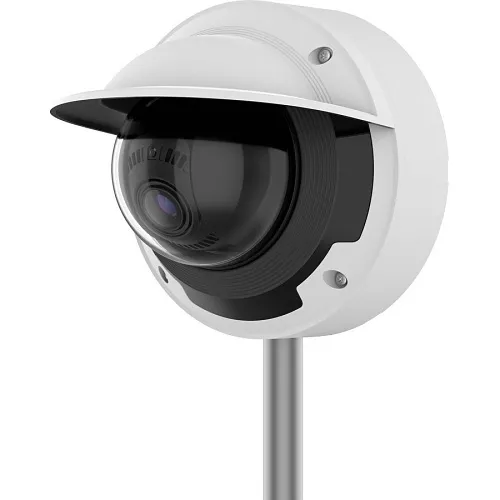

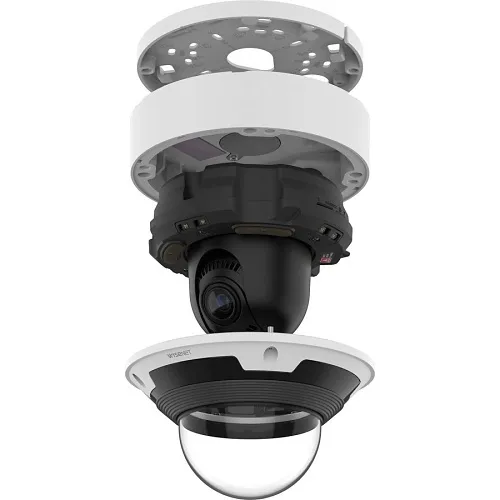

Product images for Hanwha XNV-9083RZ 4K AI IR PTRZ Vandal Dome Camera. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Deliver crisp identification and evidence-grade video with 4K resolution and up to 30m IR – ideal for perimeter and parking lot surveillance
  • Reduce false alarms and streamline monitoring with on-board AI (person, face, vehicle, license plate) for intelligent event detection
  • Flexible coverage and fast scene setup via 2.1x motorized varifocal lens (4.4–9.3mm) with remote PTRZ control for zoom, tilt and focus adjustments
  • Durable outdoor protection (IP66/IP67/IP6K9K, IK10) ensures continuous operation in harsh or vandal-prone environments
  • Lower bandwidth and storage costs using H.265, WiseStream III and WiseNR for efficient video streaming and clearer low-light images

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Product Name
4K IR Outdoor Vandal Dome AI PTRZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Protect high-value sites with reliable, high-resolution outdoor monitoring from the Hanwha Vision XNV-9083RZ dome camera. Engineered for security professionals, this 4K AI IR vandal dome camera delivers detailed, evidence-ready images and automated event detection so teams can respond faster and focus on true threats. The motorized 2.1x varifocal lens (4.4–9.3mm) with remote PTRZ control simplifies installation and lets you quickly reframe scenes without physical access. Capture clear color at low light and up to 30m of IR visibility for night surveillance, while H.265 and WiseStream III reduce network bandwidth and storage demands. Rugged IP66/IP67/IP6K9K ingress protection and IK10 impact resistance mean the camera withstands weather and vandal attempts, making it ideal for perimeter, transit, retail or campus deployments. Built-in AI analytics (person, face, vehicle, license plate) cut down false alarms and provide actionable alerts for security teams. Upgrade your surveillance system with the Hanwha Vision XNV-9083RZ to improve detection, lower operating costs, and keep critical areas monitored — contact sales or add to your cart to secure your site today.

Features

  • Deliver crisp identification and evidence-grade video with 4K resolution and up to 30m IR – ideal for perimeter and parking lot surveillance
  • Reduce false alarms and streamline monitoring with on-board AI (person, face, vehicle, license plate) for intelligent event detection
  • Flexible coverage and fast scene setup via 2.1x motorized varifocal lens (4.4–9.3mm) with remote PTRZ control for zoom, tilt and focus adjustments
  • Durable outdoor protection (IP66/IP67/IP6K9K, IK10) ensures continuous operation in harsh or vandal-prone environments
  • Lower bandwidth and storage costs using H.265, WiseStream III and WiseNR for efficient video streaming and clearer low-light images
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 4K IR Outdoor Vandal Dome AI PTRZ Camera
Product Type Network Camera
Product Model XNV-9083RZ
Manufacturer Part Number XNV9083RZ
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 2.1x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.3
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4.4mm
Connectivity Technology Wired
Field of View (Vertical) 58°
Field of View (Horizontal) 113°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -58°F (-50°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.4-9.3mm
Lens Included Yes
Minimum Aperture f/2.15
Maximum Focal Length 9.3mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 4.41lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 7.1"
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
