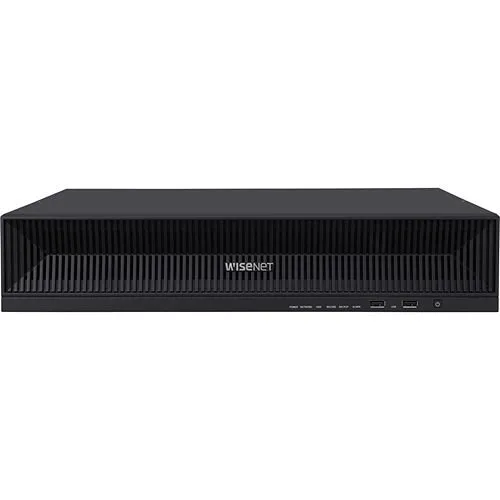

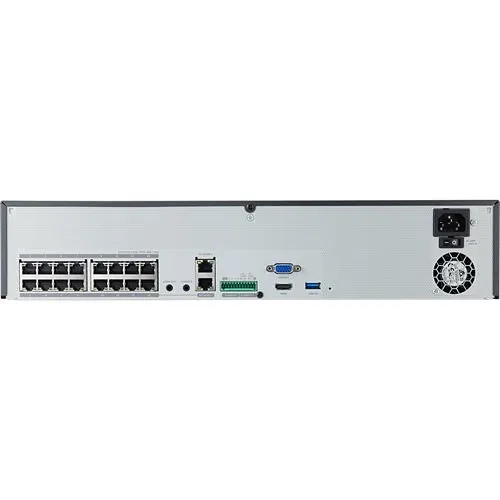

Hanwha XRN-1620SB1 X-Series 4K 16-Channel NVR with PoE Switch and AI Search, 140Mbps, HDD Not Included, (Replaces XRN-1610SA)
Image of 3
Key Features
- Simplify installation and cut hardware costs with an integrated 16-port PoE switch for plug-and-play camera power and auto-detection
- Speed investigations with AI Search, timeline preview and bookmark management for rapid event retrieval across 16 channels
- Reliable, high-throughput recording (140 Mbps) supporting up to 32MP/4K cameras for crystal-clear surveillance coverage
- Efficient storage and bandwidth with H.265/H.264 codecs and support for high-resolution video to extend retention times
- Enterprise-ready: NDAA compliance, HDMI/VGA outputs, remote management and flexible HDD options (HDD not included) for scalable deployments
Quick Specifications
- Product Model
- XRN-1620SB1
- Bandwidth
- 140 Mbps
- Brand Name
- Hanwha Vision
- Product Name
- XRN-1620SB1 Video Surveillance Station
Frequently Bought Together
Hanwha XRN-1620SB1 X-Series 4K 16-Channel NVR with PoE Switch and AI Search, 140Mbps, HDD Not Included, (Replaces XRN-1610SA)
$1,183.61
4 items selected
Total: $1,776.09
Product Information Tabs
Overview
Streamline multi-camera security and monitoring with the Hanwha Vision XRN-1620SB1 network video recorder (NVR). Designed for commercial and enterprise surveillance, this 16-channel 4K NVR delivers a robust 140 Mbps recording throughput and built-in 16-port PoE to power cameras directly—reducing installation time and cabling complexity. AI Search and an intuitive timeline preview let security teams find critical events fast, while bookmark management saves up to 100 major incidents for quick review.
Supporting H.265/H.264 codecs and up to 32MP camera resolution, the XRN-1620SB1 maximizes video clarity while conserving storage. HDMI/VGA outputs and remote management allow flexible monitoring from control rooms or remote sites, and NDAA compliance makes it suitable for government and regulated environments. Note: unit ships without HDD to let you size storage to your retention policy.
Ideal for retail, education campuses, healthcare and critical infrastructure, the Hanwha Vision XRN-1620SB1 simplifies surveillance deployment and improves incident response. Contact sales to configure storage and camera integration for your security project or add to cart to get started.
Features
- Simplify installation and cut hardware costs with an integrated 16-port PoE switch for plug-and-play camera power and auto-detection
- Speed investigations with AI Search, timeline preview and bookmark management for rapid event retrieval across 16 channels
- Reliable, high-throughput recording (140 Mbps) supporting up to 32MP/4K cameras for crystal-clear surveillance coverage
- Efficient storage and bandwidth with H.265/H.264 codecs and support for high-resolution video to extend retention times
- Enterprise-ready: NDAA compliance, HDMI/VGA outputs, remote management and flexible HDD options (HDD not included) for scalable deployments
| General Information | |
|---|---|
| Bandwidth | 140 Mbps |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | XRN-1620SB1 Video Surveillance Station |
| Product Type | Video Surveillance Station |
| Product Model | XRN-1620SB1 |
| Manufacturer Part Number | XRN-1620SB1 |
| Technical Information | |
| Video Formats | H.264, H.265, MJPEG |
| Power Consumption | 310W |
| Maximum Frame Rate | 200fps |
| Number of Channels | 16 |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 32MP |
| Certifications | |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | XRN-1610SA, XRN-1610SA-12TB, XRN-1610SA-4TB |
| Physical Characteristics | |
| Depth | 16.9" |
| Width | 17.3" |
| Height | 3.5" |
| Weight | 12.70lb |
| Storage | |
| Recording Formats | 8K |
| Hard Drive Capacity | No HDD |
| Video | |
| Maximum Resolution | 8160 x 6120 |
| Miscellaneous | |
| Country of Origin | VN |
