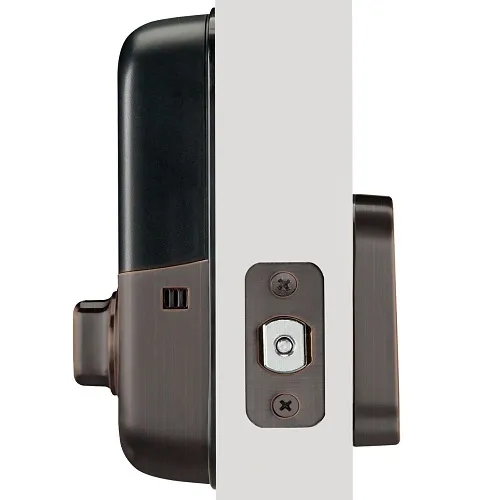

Yale YRD156-ZW2-0BP Pro SL Key-Free Touchscreen Deadbolt with Z-Wave Plus, Oil Rubbed Bronze

SKU: YRD156-ZW2-0BP Yale Locks
Yale Electric Deadbolt
Product images for Yale YRD156-ZW2-0BP Pro SL Key-Free Touchscreen Deadbolt with Z-Wave Plus, Oil Rubbed Bronze. 2 image(s) available. Click on image to view full size.

Key Features

  • Key-free touchscreen access eliminates keys and reduces rekeying costs; durable backlit keypad resists wear and prevents guessable markings
  • Built-in Z-Wave Plus with one-touch enrollment for fast integration into smart home, alarm and access control systems
  • Fast pro installation: replaces a standard deadbolt in minutes with a screwdriver and fits standard 2-1/8 in. or 1-1/2 in. bore holes
  • Battery reliability and backup: runs on four AA alkaline batteries with a 9V external terminal to prevent lockouts
  • Auto-lock and user code management let contractors provide secure, auditable access for tenants, staff or service personnel

Quick Specifications

Product Model
YRD156-ZW2-0BP
Brand Name
Yale Locks
Product Line
Pro SL
Product Name
Pro Electric Deadbolt
View Full Technical Specifications

Explore the details

Product information

YRD156-ZW2-0BP

Overview

Improve site security and simplify access management with the Yale Locks Pro SL YRD156-ZW2-0BP key-free touchscreen deadbolt. Designed for professional installs, this Yale smart lock delivers tamper-resistant, pick-proof protection while eliminating lost-key hassles. The illuminated touchscreen accepts multiple user codes and the numbers are engineered not to wear off, reducing service calls and maintenance costs. Built-in Z-Wave Plus and one-touch enrollment let integrators add the lock to Z-Wave smart home, alarm and monitoring systems quickly for remote control and event logging. Powered by four AA alkaline batteries and equipped with a 9V external backup terminal, the Pro SL ensures reliable operation and prevents lockouts due to dead cells. The oil rubbed bronze finish provides a premium aesthetic for commercial and multi-family properties while fitting standard 2-1/8 in. or 1-1/2 in. bore holes for broad compatibility. Ideal for access control, security and surveillance-focused deployments, the YRD156 gives installers a cost-effective, professional-grade option. Add the Yale Pro SL deadbolt to your security offering for streamlined installs and robust, smart locking capability.

Features

  • Key-free touchscreen access eliminates keys and reduces rekeying costs; durable backlit keypad resists wear and prevents guessable markings
  • Built-in Z-Wave Plus with one-touch enrollment for fast integration into smart home, alarm and access control systems
  • Fast pro installation: replaces a standard deadbolt in minutes with a screwdriver and fits standard 2-1/8 in. or 1-1/2 in. bore holes
  • Battery reliability and backup: runs on four AA alkaline batteries with a 9V external terminal to prevent lockouts
  • Auto-lock and user code management let contractors provide secure, auditable access for tenants, staff or service personnel
27 of 27 specifications
Technical specifications for Yale YRD156-ZW2-0BP Pro SL Key-Free Touchscreen Deadbolt with Z-Wave Plus, Oil Rubbed Bronze
General Information
Brand Name Yale Locks
Manufacturer Yale
Product Line Pro SL
Product Name Pro Electric Deadbolt
Product Type Electric Deadbolt
Product Model YRD156-ZW2-0BP
Product Series YRD156
Application/Usage Door
Country of Origin VN
Manufacturer Part Number YRD156-ZW2-0BP
Technical Information
Virtual Assistant Supported Samsung Bixby
Battery Information
Battery Life 12-Month
Battery Chemistry Alkaline (Manganese Dioxide)
Battery Size Supported AA
Number of Batteries Supported 4
Certifications
Certifications ANSI/BHMA Grade 2
Display & Graphics
Touchscreen Yes
Environmental Conditions
Operating Temperature (T-T) -22-140°F
Physical Characteristics
Weight 4.00lb
Dimensions 11/16" x 2 9/16" x 3 9/16"
Product Information
Finishing Oil Rubbed Bronze
Remote Control
Battery Included Yes
Warranty
Limited Warranty 1-Year
Additional Warranty Information 2-Year Warranty on Electronics
Wireless Specifications
Z-Wave Yes
Miscellaneous
Features Adjustable drive-in latch available for Canadian pro channel
Compatibility Standard Cylinder Deadbolts
