AXIS FA3105-L FA Series 2MP Discreet Indoor IR Sensor Turret Camera, 3.13mm Lens, White

SKU: 01026-001 Axis Communications

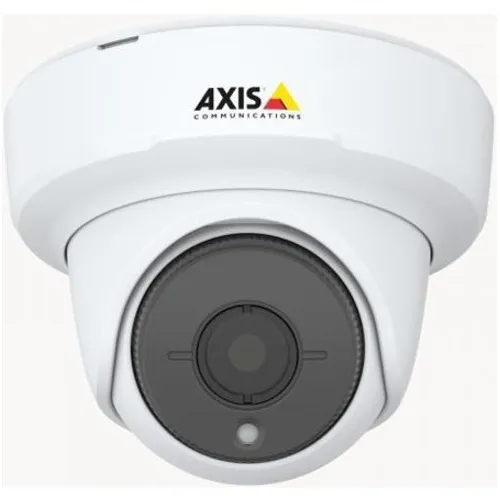

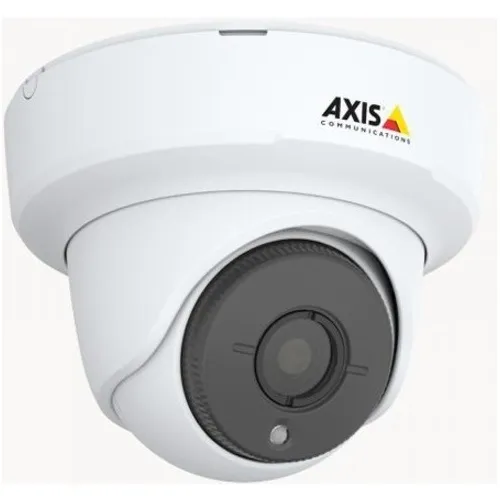

AXIS FA3105-L 2MP Discreet Indoor IR Sensor Surveillance Turret Camera, 3.13mm Lens
Product images for AXIS FA3105-L FA Series 2MP Discreet Indoor IR Sensor Turret Camera, 3.13mm Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable 24/7 surveillance with built-in IR LEDs and automatic IR cut for clear day/night monitoring
  • Forensic WDR and 2MP HDTV image quality for readable evidence in challenging light conditions
  • Discreet eyeball design and corridor format optimize coverage in retail, bank lanes, and fuel stations
  • Compact surface-mount sensor with 3.13 mm fixed lens and 8 m cable for fast, flexible installation with AXIS FA Main Units
  • NDAA-compliant, low-power (2W) operation for secure, cost-effective deployments

Quick Specifications

Product Model
FA3105-L
Brand Name
AXIS Communications
Product Line
FA
Product Name
AXIS FA3105-L EYEBALL SENSOR UNIT
View Full Technical Specifications

Product Information Tabs

Overview

Designed for discreet, always-ready security monitoring, the AXIS FA3105-L Eyeball Sensor Unit from Axis Communications delivers dependable video evidence where it matters most. As a compact turret-style sensor for use with an AXIS FA Main Unit, it provides HDTV 1080p (2MP) clarity and a 3.13 mm fixed lens that makes faces and actions easier to identify. Built-in IR illumination and an automatic IR cut filter enable true day/night operation with 0 lux performance, while Forensic WDR preserves detail across backlit and high-contrast scenes. The low-profile eyeball form and corridor format maximize coverage in narrow aisles, teller lines, and pump islands without drawing attention. With an 8 m (26 ft) connection cable and simple surface-mount plate, installations are faster and neater—reducing labor and disruption. NDAA compliance and robust environmental certifications make this sensor unit a secure choice for enterprise security programs. Ideal for retail, banking, and fuel retail surveillance, the AXIS FA3105-L is built to simplify monitoring and improve incident response. Contact us to specify or order this sensor for your next surveillance deployment.

Features

  • Reliable 24/7 surveillance with built-in IR LEDs and automatic IR cut for clear day/night monitoring
  • Forensic WDR and 2MP HDTV image quality for readable evidence in challenging light conditions
  • Discreet eyeball design and corridor format optimize coverage in retail, bank lanes, and fuel stations
  • Compact surface-mount sensor with 3.13 mm fixed lens and 8 m cable for fast, flexible installation with AXIS FA Main Units
  • NDAA-compliant, low-power (2W) operation for secure, cost-effective deployments
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line FA
Product Name AXIS FA3105-L EYEBALL SENSOR UNIT
Product Type Sensor units
Product Model FA3105-L
Product Series FA31
Manufacturer Part Number 01026-001
Technical Information
Aperture f/2.0
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Maximum Aperture f/2
Maximum Frame Rate 30fps
Minimum Focal Length 3.13mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
NDAA Compliant Yes
Display & Graphics
Image Sensor Size 1/3"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.85
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0 lux
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/32500 Second
Lens
Focal Length 3.13mm
Lens Included Yes
Maximum Focal Length 3.13mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 3.10oz
Form Factor Eyeball
Power Description
Maximum Power Consumption 2W
Product Information
Diameter 2.9"
Mount Type Surface Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Built-in IR LED, Day/Night
Certifications EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Indoor
Country of Origin TH
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
