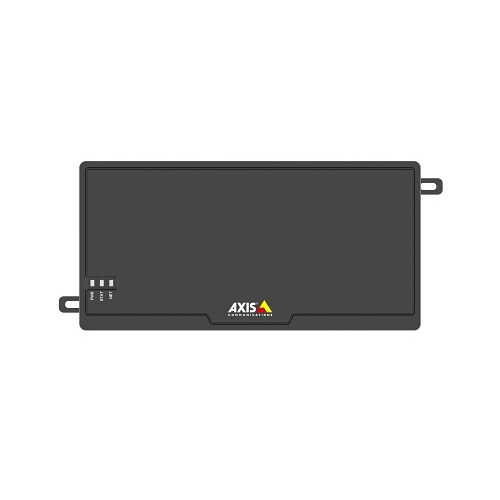

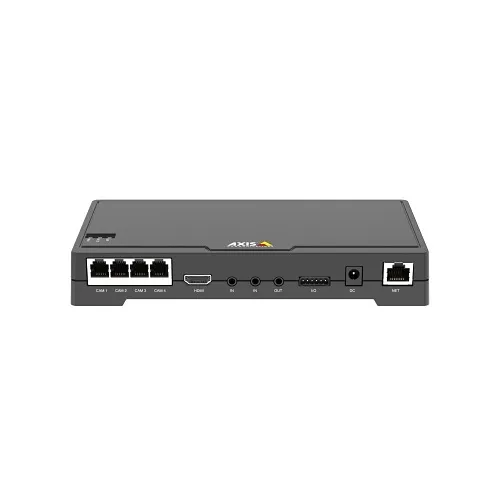

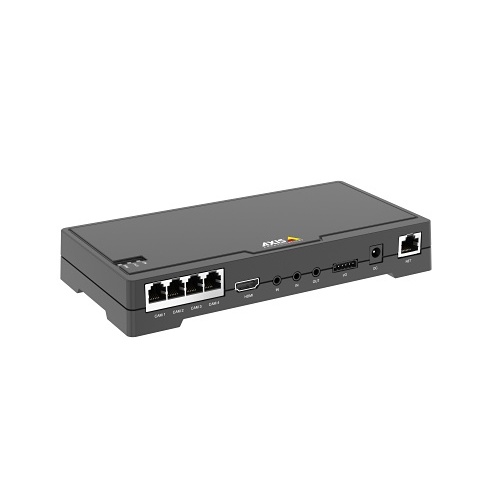

AXIS FA54 High Performance Multi-View Surveillance Main Unit with Forensic WDR, Black
Image of 4
Key Features
- Discreet multi-area coverage: monitor four closely located zones with a single AXIS FA54 main unit and one IP address, reducing cabling and management overhead.
- High-quality evidence capture: simultaneous full frame-rate HDTV 1080p streams from four sensor units deliver clear video for identification and incident review.
- Motion‑tuned Forensic WDR: optimized wide dynamic range preserves detail on moving subjects in challenging lighting—ideal for retail, banking and corridor monitoring.
- Lower bandwidth and storage costs: Axis Zipstream compression reduces network load without compromising critical image detail, cutting total cost of ownership.
- Flexible deployment and monitoring: HDMI output, quad-view streaming, two-way audio and dual microSD support enable local viewing, integration with monitors and streamlined on-site operations.
Quick Specifications
- Product Model
- FA54
- Brand Name
- AXIS Communications
- Product Line
- F
- Product Name
- AXIS FA54 MAIN UNIT US
Frequently Bought Together
AXIS FA54 High Performance Multi-View Surveillance Main Unit with Forensic WDR, Black
$575.54
6 items selected
Total: $1,592.78
Explore the details
Product information
0878-004
Overview
Centralize discreet, high-performance surveillance for adjacent areas with the AXIS FA54 main unit from Axis Communications. Designed as a compact video decoder and main unit, the FA54 supports up to four AXIS FA Sensor Units and streams full frame-rate HDTV 1080p from all sensors simultaneously using a single IP address—simplifying network configuration and reducing infrastructure costs. Forensic WDR tuned for motion ensures moving subjects remain clear in high-contrast scenes, while Axis Zipstream compression lowers bandwidth and storage requirements without sacrificing essential detail. Built for professional security and monitoring applications, the FA54 also offers HDMI output for local public-view or surveillance monitors, quad-view streaming, two-way audio and dual microSD card slots for flexible recording. NDAA-compliant and engineered for reliable indoor use, this Axis video decoder is ideal for retail stores, banks, offices and corridor surveillance where discreet multi-view monitoring and forensic-quality footage matter. Upgrade your security setup today—contact sales to integrate the AXIS FA54 into your surveillance network.
Features
- Discreet multi-area coverage: monitor four closely located zones with a single AXIS FA54 main unit and one IP address, reducing cabling and management overhead.
- High-quality evidence capture: simultaneous full frame-rate HDTV 1080p streams from four sensor units deliver clear video for identification and incident review.
- Motion‑tuned Forensic WDR: optimized wide dynamic range preserves detail on moving subjects in challenging lighting—ideal for retail, banking and corridor monitoring.
- Lower bandwidth and storage costs: Axis Zipstream compression reduces network load without compromising critical image detail, cutting total cost of ownership.
- Flexible deployment and monitoring: HDMI output, quad-view streaming, two-way audio and dual microSD support enable local viewing, integration with monitors and streamlined on-site operations.
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | F |
| Product Name | AXIS FA54 MAIN UNIT US |
| Product Type | Main units |
| Product Model | FA54 |
| Product Series | FA54 |
| Manufacturer Part Number | 0878-004 |
| Technical Information | |
| Material | Plastic |
| Video Formats | H.264 / AVC |
| Application/Usage | Bank, Corridors, Door, Indoor, Light, Lock, Office, Store |
| Certifications | |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | 0-45°C |
| Physical Characteristics | |
| Color | Black |
| Depth | 1.3" |
| Width | 8.5" |
| Height | 4.6" |
| Weight | 15.59oz |
| Power Description | |
| Maximum Power Consumption | 30W |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Certifications | EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Indoor |
| Country of Origin | TH |
| Environmentally Friendly | Yes |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X |
