AXIS M3216-LVE M32 Series 4MP Fixed IR WDR Dome IP Camera, White (Replaces M3206-LVE)

SKU: 02372-001 Axis Communications
AXIS M3216-LVE 4MP Fixed IR WDR IP Dome Camera (Replaces M3206-LVE)

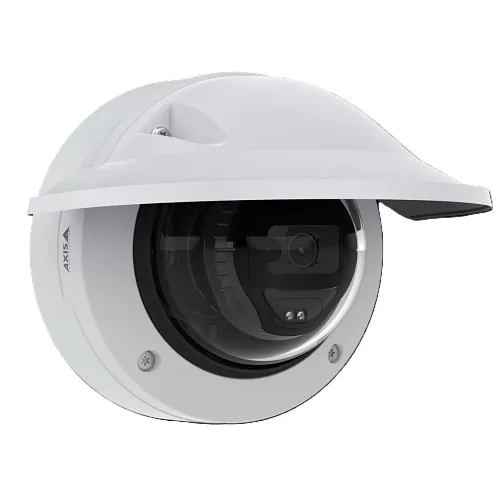

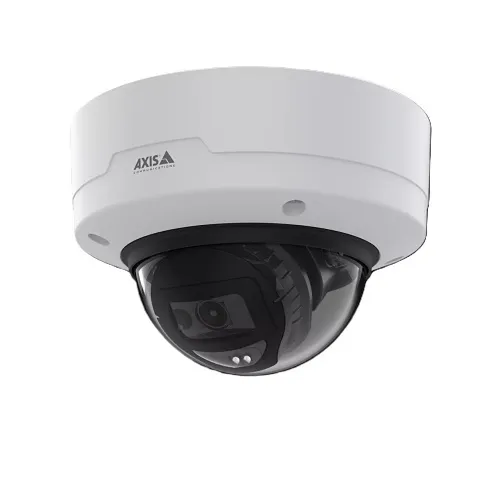

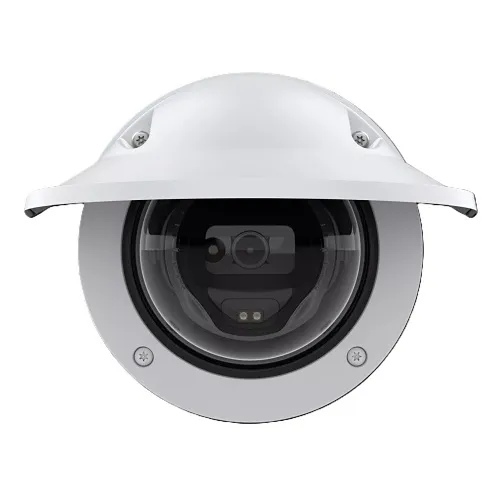

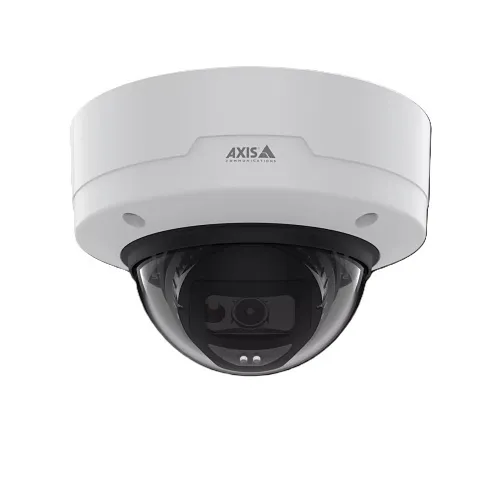

Product images for AXIS M3216-LVE M32 Series 4MP Fixed IR WDR Dome IP Camera, White (Replaces M3206-LVE). 5 image(s) available. Click on image to view full size.

Key Features

  • Intelligent on‑edge analytics with ARTPEC‑8 and deep learning for accurate detection and fast forensic search
  • Reliable 24/7 surveillance with Lightfinder, Forensic WDR and OptimizedIR for clear 4MP images in challenging light
  • Weatherproof, vandal‑resistant IP66/IK10 housing for dependable outdoor monitoring and reduced maintenance
  • Flexible integration with PoE, audio/I/O and ONVIF support to simplify installations and expand system capability
  • Low power operation (max 11W) and local memory support for efficient edge recording and reduced network load

Quick Specifications

Product Model
M3216-Lve
Brand Name
AXIS Communications
Product Line
M
Product Name
AXIS M3216-LVE
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Deliver reliable, high‑quality security and surveillance where it matters most. The AXIS M3216‑LVE 4MP fixed IR dome camera from Axis Communications is built for demanding outdoor monitoring — combining 4MP resolution (2688 x 1512), OptimizedIR night vision and Lightfinder/Forensic WDR to produce usable images in low light, backlight and high‑contrast scenes. Powered by ARTPEC‑8 with a dedicated deep learning processing unit, the camera runs advanced analytics at the edge to classify humans and vehicles and generate searchable metadata, speeding incident investigations and reducing false alarms. Robust IP66 and IK10 ratings protect the unit in harsh environments, while PoE, audio/I/O and ONVIF compatibility make integration with VMS and access control straightforward. With a compact dome form factor and low power draw, this camera lowers installation complexity and ongoing operational cost for perimeter, retail, transportation and critical infrastructure deployments. Enhance your security posture with intelligent, weatherproof monitoring — contact us to specify the AXIS M3216‑LVE for your next surveillance project.

Features

  • Intelligent on‑edge analytics with ARTPEC‑8 and deep learning for accurate detection and fast forensic search
  • Reliable 24/7 surveillance with Lightfinder, Forensic WDR and OptimizedIR for clear 4MP images in challenging light
  • Weatherproof, vandal‑resistant IP66/IK10 housing for dependable outdoor monitoring and reduced maintenance
  • Flexible integration with PoE, audio/I/O and ONVIF support to simplify installations and expand system capability
  • Low power operation (max 11W) and local memory support for efficient edge recording and reduced network load
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line M
Product Name AXIS M3216-LVE
Product Type Fixed dome cameras
Product Model M3216-Lve
Product Series M32
Manufacturer Part Number 02372-001
Supported Network Protocols IPv6 USGv6, NIST SP500-267
Technical Information
Aperture f/2.0
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Maximum Frame Rate 30fps
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66
Display & Graphics
Image Sensor Size 1/2.7"
Maximum Video Resolution 2688 x 1512
Exposure
Minimum Illumination 0 lux
Lens
Focal Length 2.9mm
Memory
Memory Card Supported Yes
Others
Model Number Replaces 01518-001, M3206-LVE
Physical Characteristics
Color White
Durability Vandal Resistant
Form Factor Dome
Power Description
Maximum Power Consumption 11W
Power over Ethernet (PoE) Yes
Product Information
Mount Type Bracket Mount, Ceiling Mount, Conduit Mount, Junction Box Mount, Wall Mount
Miscellaneous
Certifications EAC, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
