AXIS 02859-001 HDTV 1080p Mk II Modular Varifocal Dome IP Camera, 99°-55° Field of View, 2.8-6mm Lens
Key Features
- Modular design lets the small main unit be hidden and the dome sensor placed up to 15 m away for truly discreet installations
- 2.8–6 mm varifocal lens with 99°–55° field of view for flexible coverage from wide overviews to detailed close-ups
- HDTV 1080p and Wide Dynamic Range deliver clear, actionable video in challenging lighting for reliable security monitoring
- On-device deep learning processing and AXIS Object Analytics reduce false alarms and enable intelligent edge analytics
- Power over Ethernet (PoE) and a detachable cable simplify installation, lowering labor and infrastructure costs
- TAA compliant, ONVIF support and a 5-year warranty provide long-term reliability and integration confidence
Quick Specifications
- Product Model
- P1275 Mk II
- Brand Name
- AXIS Communications
- Package Type
- Box
- Product Line
- P
Frequently Bought Together
AXIS 02859-001 HDTV 1080p Mk II Modular Varifocal Dome IP Camera, 99°-55° Field of View, 2.8-6mm Lens
$503.47
8 items selected
Total: $3,420.31
Explore the details
Product information
02859-001
Overview

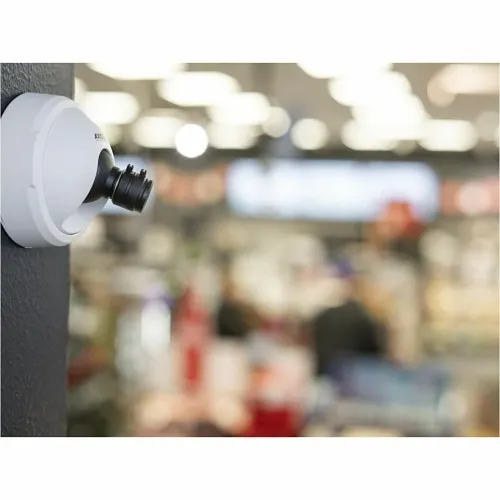

For discreet, high-quality surveillance in tight or sensitive spaces, the Axis Communications AXIS P1275 Mk II modular varifocal dome IP camera delivers flexible placement and reliable image quality. Designed as a covert camera solution, the split main unit and sensor allow concealment of electronics while the dome sensor can be mounted up to 15 m away, ideal for retail, banking, and corporate monitoring. The 2.8–6 mm varifocal lens (99°–55° FOV) lets you quickly choose wide-area coverage or zoomed detail, and HDTV 1080p with Wide Dynamic Range ensures clear footage in mixed lighting conditions. Built-in deep learning processing and AXIS Object Analytics run at the edge to cut false alarms and enable smarter security workflows. PoE support and a detachable cable streamline installation and future upgrades, reducing total cost of ownership. TAA compliance, ONVIF interoperability and a 5-year warranty make this Axis covert dome camera a dependable choice for integrators and security teams. Contact your reseller to specify the AXIS P1275 Mk II for your next surveillance or monitoring deployment.
Features
- Modular design lets the small main unit be hidden and the dome sensor placed up to 15 m away for truly discreet installations
- 2.8–6 mm varifocal lens with 99°–55° field of view for flexible coverage from wide overviews to detailed close-ups
- HDTV 1080p and Wide Dynamic Range deliver clear, actionable video in challenging lighting for reliable security monitoring
- On-device deep learning processing and AXIS Object Analytics reduce false alarms and enable intelligent edge analytics
- Power over Ethernet (PoE) and a detachable cable simplify installation, lowering labor and infrastructure costs
- TAA compliant, ONVIF support and a 5-year warranty provide long-term reliability and integration confidence
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Package Type | Box |
| Product Line | P |
| Product Name | AXIS P1275 Mk II |
| Product Type | Fixed cameras |
| Product Model | P1275 Mk II |
| Product Series | P12 |
| Manufacturer Part Number | 02859-001 |
| Supported Network Protocols | IPv6 |
| Technical Information | |
| PoE | Yes |
| Aperture | f/2.0 |
| Lens Type | Varifocal |
| Aspect Ratio | 16:9 |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Lens Mount Type | M12 |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 2.80mm |
| Connectivity Technology | Wired |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Ingress Protection Rating | IP3X |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Display & Graphics | |
| Image Sensor Size | 1/2.9" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 85% |
| Operating Temperature (T-T) | -20-45°C |
| Maximum Operating Temperature | 113°F |
| Minimum Operating Temperature | -4°F |
| Exposure | |
| Minimum Illumination | 0.2000lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/16500 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8-6mm |
| Lens Included | Yes |
| Maximum Focal Length | 6.00mm |
| Memory | |
| SD Card Slot | Yes |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Height | 2.20" |
| Form Factor | Dome |
| Power Description | |
| Maximum Power Consumption | 4.10W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Diameter | 3.46" |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 01559-001, 0928-001, P1275 |
| Storage | |
| Storage Type | SD Card |
| Recording Formats | H.264, H.265 / HEVC |
| Video | |
| Graphics Mode | Full HD |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Alarm Triggering, Automatic White Balance, HTTPS Encryption, Mirror, Password Protection, Privacy Masking, Privacy Protection, SD Card Local Storage, White Balance, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Package Contents | 8 m (26 ') black cable, Installation Guide, Mounting Bracket, Owner authentication key Main unit, Sensor unit |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS, REACH, RoHS |
