AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
Image of 4
Key Features
- Powers Axis PoE cameras up to 30 W for hours, enabling uninterrupted on-site commissioning and fewer return visits
- Built-in WiFi connects to your smartphone or tablet in seconds for live video, focus adjustment and quick configuration via the free app
- PoE+ support with two RJ45 Fast Ethernet ports for flexible testing of network feeds and camera power
- Multiple camera discovery (including ONVIF) speeds deployment across mixed-brand surveillance and security systems
- Portable, battery-driven design and 3-year warranty give installers a reliable, field-ready tool for monitoring and setup
Quick Specifications
- Product Model
- T8415
- Brand Name
- AXIS Communications
- Product Line
- T
- Product Name
- AXIS T8415 WIRELESS INSTALL TOOL
Frequently Bought Together
AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
$709.39
9 items selected
Total: $2,746.97
Explore the details
Product information
5506-231
Overview

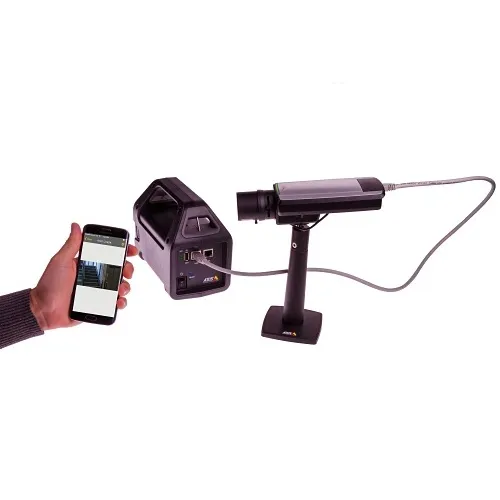

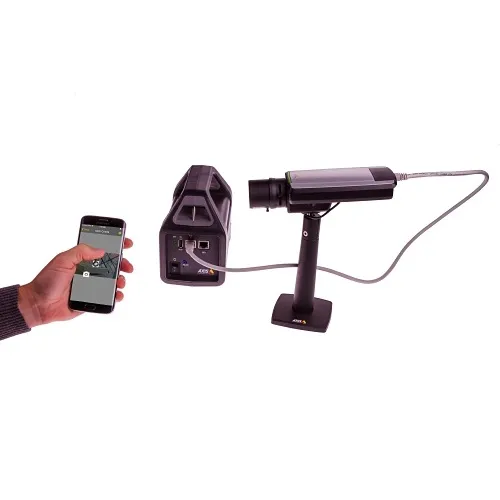

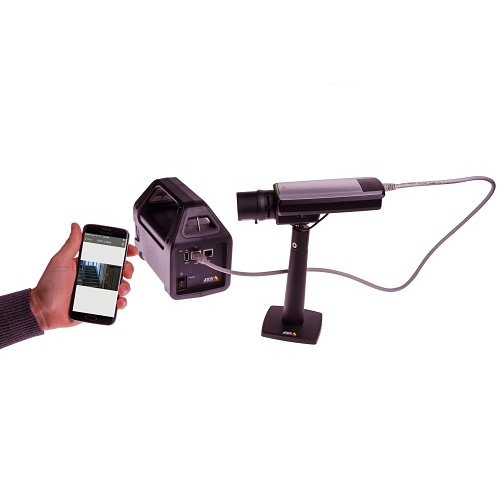

Get cameras operational faster with the AXIS T8415 Wireless Installation Tool from Axis Communications — a battery-driven, handheld PoE+ Wi‑Fi access point built for security and surveillance installers. Designed for IP camera testing and commissioning, the T8415 powers Axis PoE cameras up to 30 W for hours, so you can stream live video, set focus and adjust image rotation without relying on temporary power sources. The unit’s built-in Wi‑Fi links to an installer’s smartphone or tablet within seconds, and the free iOS/Android app provides an intuitive live view and basic camera controls.
On the networking side, two Fast Ethernet RJ45 ports and PoE+ support let you validate cabling, network connectivity and camera behavior on-site. Multiple camera discovery — including ONVIF — accelerates commissioning across mixed-brand deployments, reducing labor time and improving consistency in large surveillance and monitoring projects. Rated for typical installation temperatures and backed by a 3-year limited warranty, the AXIS T8415 is a rugged, practical choice for security professionals. Add the AXIS T8415 to your toolkit to streamline camera installs and site acceptance testing — order now or contact sales for volume deployments.
Features
- Powers Axis PoE cameras up to 30 W for hours, enabling uninterrupted on-site commissioning and fewer return visits
- Built-in WiFi connects to your smartphone or tablet in seconds for live video, focus adjustment and quick configuration via the free app
- PoE+ support with two RJ45 Fast Ethernet ports for flexible testing of network feeds and camera power
- Multiple camera discovery (including ONVIF) speeds deployment across mixed-brand surveillance and security systems
- Portable, battery-driven design and 3-year warranty give installers a reliable, field-ready tool for monitoring and setup
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | T |
| Product Name | AXIS T8415 WIRELESS INSTALL TOOL |
| Product Type | Installation Tools |
| Product Model | T8415 |
| Product Series | T84 |
| Application/Usage | IP Camera Testing |
| Country of Origin | CN |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 5506-231 |
| Technical Information | |
| Media Type Supported | Twisted Pair |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size Supported | Proprietary Battery Pack |
| Number of Batteries Supported | 1 |
| Certifications | |
| Certifications | EN 55032 Class A, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN32 Class B, KC KN35, VCCI Class B |
| Environmental Conditions | |
| Operating Temperature (T-T) | 0-50°C |
| Interfaces/Ports | |
| VGA | No |
| HDMI | No |
| Serial Port | No |
| Audio Line Out | No |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 100 Mbps (Fast Ethernet) |
| Physical Characteristics | |
| Depth | 8.10" |
| Width | 3.90" |
| Height | 5.90" |
| Power Description | |
| Input Voltage | 12V DC |
| PoE (RJ-45) Port | Yes |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 5900-144 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, RoHS, WEEE |
