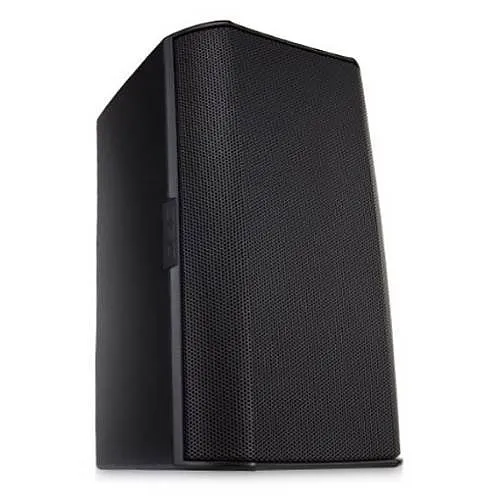

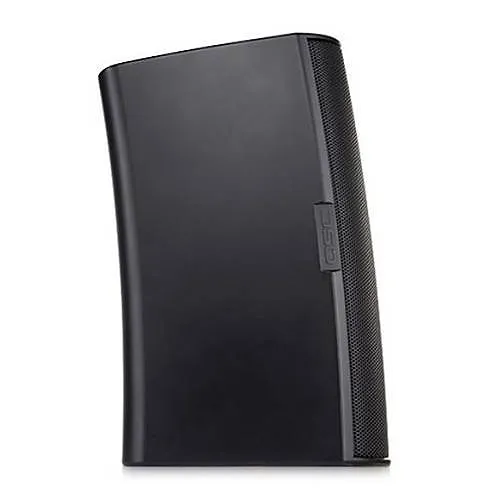

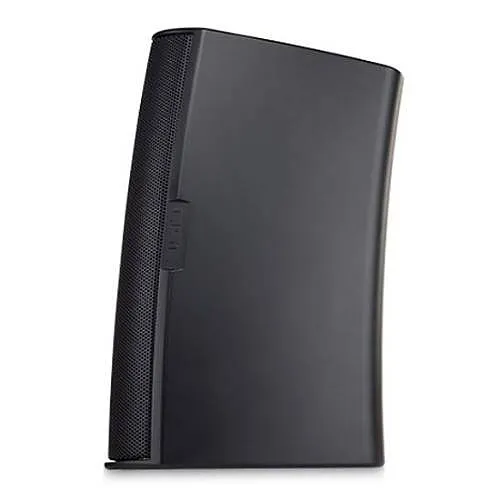

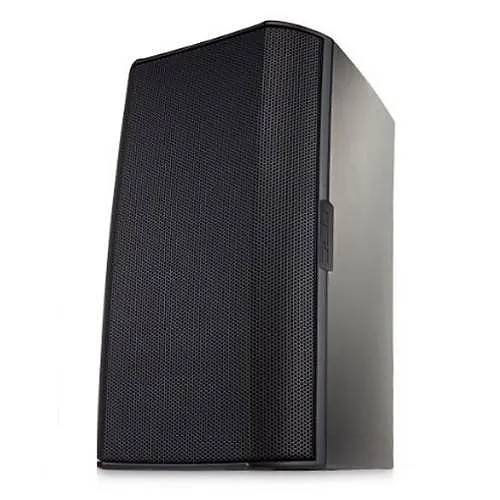

QSC AD-S6-BK AcousticDesign Series 6.5" 2-Way Weather Treated Surface Mount Speaker, 105° Conical DMT, Indoor Outdoor, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Clear, reliable audio for installed systems — 6.5" woofer and 1" tweeter deliver full-range sound for paging, background music, and voice intelligibility
- Consistent coverage with 105° Conical DMT — uniform frequency response reduces hotspots for predictable performance across venues
- Weather-resistant, long-life design (IP54) — dust and splash protection plus powder-coated grille for indoor/outdoor installations

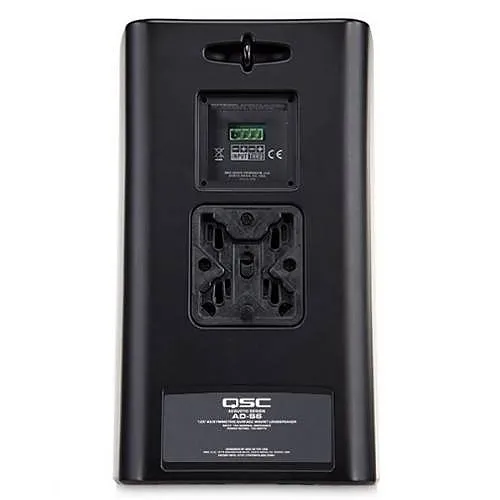

- Fast, secure installation with X-Mount system — adjustable surface-mounting that resists slippage and saves installation time
- Integrator-ready voicings via Q-SYS and lightweight ABS enclosure — simplifies system tuning and keeps load on mounts low
- High output capability (up to 116 dB peak) in a compact footprint — handles foreground announcements and security paging without distortion
Quick Specifications
- Product Model
- AD-S6-BK
- Brand Name
- QSC
- Product Line
- AcousticDesign
- Product Name
- QSC AcousticDesign Series AD-S6 6.5" Two-Way Surface Mount IP54 Passive Loudspeakers (Pair, Black)
Product Information Tabs
Overview
For professional installed sound where clarity, reliability, and durability matter, the QSC AD-S6 surface-mount speaker delivers dependable performance for retail, hospitality, campus, and security applications. This QSC AcousticDesign two-way loudspeaker pairs a weather-treated 6.5" woofer with a 1" silk-dome tweeter to produce articulate voice reproduction and music playback, with a rated sensitivity of 89 dB and peak output up to 116 dB to cover both background and foreground needs. The 105° Conical Directivity Matched Transition (DMT) provides even coverage across the listening area, reducing the need for extra cabinets and simplifying system design. Built to withstand dust and splashes (IP54), the AD-S6 features a sealed input panel and powder-coated aluminum grille for long-term outdoor or semi-exposed use. Installers appreciate the versatile X-Mount system and lightweight ABS enclosure, while integrators benefit from Advanced Intrinsic Correction voicings available via Q-SYS for fast tuning. Ideal for paging, monitoring, surveillance-linked audio cues, and general sound reinforcement — spec the AD-S6 for projects that require professional-grade, weather-resistant audio. Contact us to configure for your security or commercial audio deployment.
Features
- Clear, reliable audio for installed systems — 6.5" woofer and 1" tweeter deliver full-range sound for paging, background music, and voice intelligibility
- Consistent coverage with 105° Conical DMT — uniform frequency response reduces hotspots for predictable performance across venues
- Weather-resistant, long-life design (IP54) — dust and splash protection plus powder-coated grille for indoor/outdoor installations
- Fast, secure installation with X-Mount system — adjustable surface-mounting that resists slippage and saves installation time
- Integrator-ready voicings via Q-SYS and lightweight ABS enclosure — simplifies system tuning and keeps load on mounts low
- High output capability (up to 116 dB peak) in a compact footprint — handles foreground announcements and security paging without distortion
| General Information | |
|---|---|
| Brand Name | QSC |
| Manufacturer | QSC Audio |
| Product Line | AcousticDesign |
| Product Name | QSC AcousticDesign Series AD-S6 6.5" Two-Way Surface Mount IP54 Passive Loudspeakers (Pair, Black) |
| Product Type | Loudspeaker |
| Product Model | AD-S6-BK |
| Product Series | AD-S |
| Manufacturer Part Number | AD-S6-BK |
| Technical Information | |
| Impedance | 16 ohms |
| Sensitivity | 89dB |
| Crossover Type | 2-way |
| Audio | |
| Number of Speakers | 2 |
| Speaker Configuration | 2 |
| Environmental Conditions | |
| Sound Emission | 116 dB |
| Physical Characteristics | |
| Color | Black |
| Weight | 11.6lb |
| Durability | Dust Resistant, Splash Resistant |
| Enclosure Type | Sealed |
| Product Information | |
| Mount Type | Surface Mount |
| Miscellaneous | |
| Features | IP54 Dust and, Lightweight ABS Enclosure, Rated for Indoor or Outdoor Use, X-Mount System for Fast and Easy |
| Indoor/Outdoor | Indoor |
