LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Lens, White

SKU: AHD845AX28 MPN: AHD845AX2.8 Merit LILIN

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Focal Lens

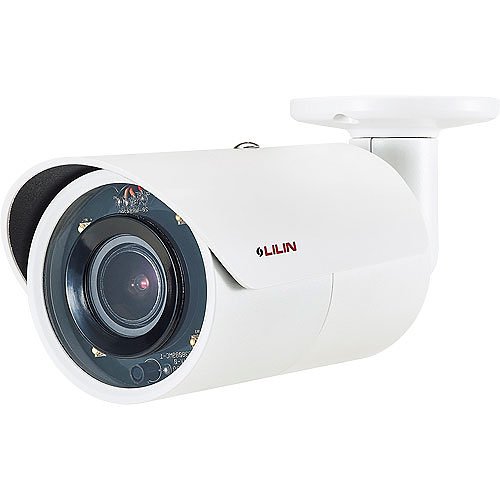

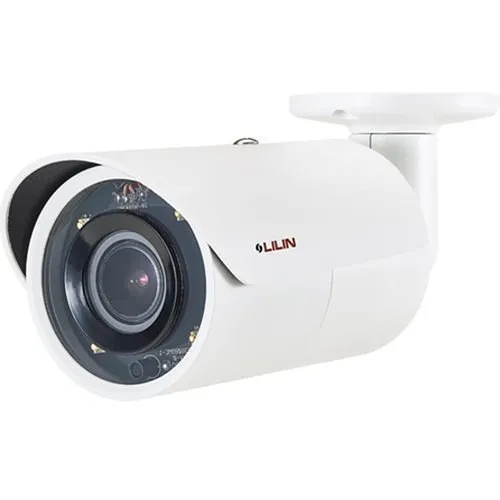

Product images for LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Capture critical detail for investigations and monitoring with true 5MP resolution (2592 x 1944) for sharper evidence-grade video.
  • Speed up installation and fine-tune coverage with motorized 2.8–12mm varifocal lens and autofocus—no manual focus adjustments needed on-site.
  • Maintain reliable 24/7 surveillance with built-in IR illumination up to 65 ft for clear night imaging in low-light environments.
  • Rugged IP66 weatherproof casing and wide operating temperatures protect outdoor deployments from dust, rain and extreme conditions.
  • Integrates easily into hybrid systems via AHD/CVBS/TVI/CVI outputs and runs on standard 12V DC power for flexible system upgrades.

Quick Specifications

Brand Name
Merit LILIN
Manufacturer
Merit LILIN Ent. Co., Ltd
Product Name
5MP Day & Night Auto Focus IR Bullet Camera
Product Type
Surveillance Camera
View Full Technical Specifications

Frequently Bought Together

This Item
LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Lens, White

LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Lens, White

Frequently Bought Together (2 items)

3 items selected

Total: $1,013.98

Product Information Tabs

Overview

Protect your perimeter and improve situational awareness with the Merit LILIN AHD845AX2.8 5MP Day & Night Auto Focus IR Bullet Camera. Built for commercial and outdoor surveillance, this Merit LILIN bullet camera delivers 2592 x 1944 resolution so security teams can identify faces, license plates, and other critical details. The motorized 2.8–12mm varifocal lens with autofocus simplifies setup and lets you remotely zoom and frame scenes without field adjustments—reducing installation time and call-backs. Advanced infrared LEDs extend night vision to approximately 65 feet, ensuring consistent monitoring after dark. With IP66-rated weatherproof housing and broad temperature tolerance, the AHD845AX2.8 performs reliably in parking lots, storefronts, campuses, and other demanding environments. Compatibility with AHD/CVBS/TVI/CVI outputs makes it an easy choice for hybrid systems and phased upgrades. Choose this Merit LILIN surveillance camera to enhance your security infrastructure with dependable, high-resolution monitoring. Add to your system today or contact sales for bulk purchasing and installation guidance.

Features

  • Capture critical detail for investigations and monitoring with true 5MP resolution (2592 x 1944) for sharper evidence-grade video.
  • Speed up installation and fine-tune coverage with motorized 2.8–12mm varifocal lens and autofocus—no manual focus adjustments needed on-site.
  • Maintain reliable 24/7 surveillance with built-in IR illumination up to 65 ft for clear night imaging in low-light environments.
  • Rugged IP66 weatherproof casing and wide operating temperatures protect outdoor deployments from dust, rain and extreme conditions.
  • Integrates easily into hybrid systems via AHD/CVBS/TVI/CVI outputs and runs on standard 12V DC power for flexible system upgrades.
General Information
Brand Name Merit LILIN
Manufacturer Merit LILIN Ent. Co., Ltd
Product Name 5MP Day & Night Auto Focus IR Bullet Camera
Product Type Surveillance Camera
Product Model AHD845AX2.8
Product Series AHD
Manufacturer Part Number AHD845AX2.8
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 4.3x
Field of View Diagonal, Horizontal, Vertical
Maximum Aperture f/1.6
Night Vision Type Infrared
Number of IR LEDs 7
Maximum Frame Rate 20fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 35°
Field of View (Horizontal) 47.2°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Night Vision Distance 65.62 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/50000 Second
Lens
Focal Length 12mm
Lens Included Yes
Maximum Focal Length 12mm
Physical Characteristics
Color White
Depth 8.4"
Width 2.7"
Height 2.7"
Weight 1.04lb
Durability Dust Resistant, Rain Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC
Storage
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format AHD, CVBS, CVI, TVI
Miscellaneous
Features 2D Noise Reduction, 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR)
Indoor/Outdoor Outdoor
Country of Origin TW
