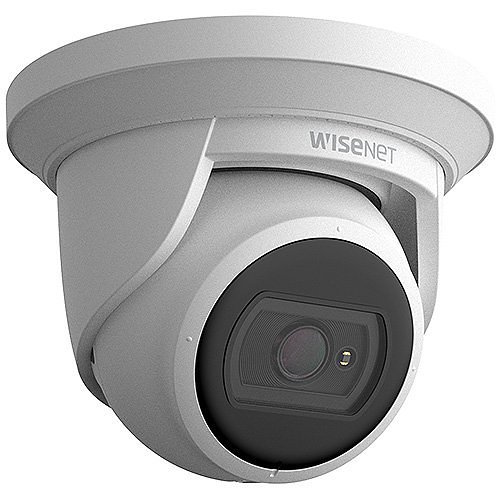

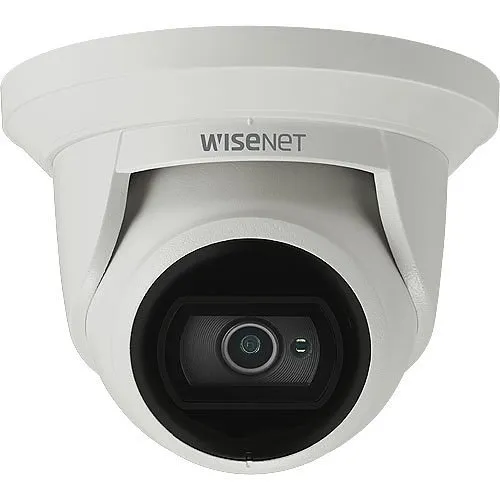

Hanwha ANE-L6012R 2MP Super-Compact Flateye IP Camera, 3mm Fixed Lens, IR 20m, WDR 120 dB, IP67, IK10
Image of 3
Key Features
- Reliable outdoor protection with IP67 and IK10 ratings—built to withstand weather, dust and impacts so you can trust continuous surveillance
- Clear, actionable imaging with 2MP 1080p resolution, 120 dB WDR and 20m IR for sharp day/night monitoring and fewer false alarms
- Fast, low-cost deployment via PoE and QR-code setup; reduces installation time and infrastructure costs
- Compact flateye turret design and 3mm wide-angle lens cover entrances and loading areas with fewer cameras
- Built-in analytics (line crossing, enter/exit, tamper, motion) enable proactive perimeter security and simplified event management
- NDAA-compliant and compatible with Hanwha A-Series NVRs for seamless integration into enterprise surveillance systems
Quick Specifications
- Product Model
- ANE-L6012R
- Brand Name
- Hanwha Vision
- Product Name
- 2MP Super-Compact IR Flateye Camera
- Product Type
- Flateye Camera
Frequently Bought Together
Hanwha ANE-L6012R 2MP Super-Compact Flateye IP Camera, 3mm Fixed Lens, IR 20m, WDR 120 dB, IP67, IK10
$154.80
8 items selected
Total: $1,582.29
Explore the details
Product information
ANE-L6012R
Overview
Optimize perimeter and entry-point security with the Hanwha Vision ANE-L6012R super-compact flateye IP camera. Designed for both commercial and residential surveillance, this turret-style camera delivers dependable 2MP (1080p) video with a 3mm fixed lens to capture wide coverage of entrances, loading docks and parking areas. Advanced 120 dB WDR and up to 20 m (65 ft) IR illumination ensure high-contrast images in challenging lighting and at night, while WiseStream II and H.265 support reduce bandwidth and storage costs for long-term monitoring. Built to perform in harsh environments, the ANE-L6012R carries IP67 ingress protection and IK10 impact resistance, so you can deploy it outdoors with confidence. PoE power and QR-code setup speed installation, and on-board analytics (virtual line crossing, motion and tamper detection) provide actionable alerts for rapid incident response. NDAA compliance and smooth compatibility with Hanwha A-Series NVRs make this camera a practical choice for integrators and facility managers seeking reliable, scalable security. Add the ANE-L6012R to your surveillance network for cost-effective, high-quality monitoring—contact sales or order now to secure vulnerable areas.
Features
- Reliable outdoor protection with IP67 and IK10 ratings—built to withstand weather, dust and impacts so you can trust continuous surveillance
- Clear, actionable imaging with 2MP 1080p resolution, 120 dB WDR and 20m IR for sharp day/night monitoring and fewer false alarms
- Fast, low-cost deployment via PoE and QR-code setup; reduces installation time and infrastructure costs
- Compact flateye turret design and 3mm wide-angle lens cover entrances and loading areas with fewer cameras
- Built-in analytics (line crossing, enter/exit, tamper, motion) enable proactive perimeter security and simplified event management
- NDAA-compliant and compatible with Hanwha A-Series NVRs for seamless integration into enterprise surveillance systems
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP Super-Compact IR Flateye Camera |
| Product Type | Flateye Camera |
| Product Model | ANE-L6012R |
| Country of Origin | VN |
| Manufacturer Part Number | ANE-L6012R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Aspect Ratio | 16:9 |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 3.00mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 59.00° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 65.62' |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 95% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.00mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.39lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Flateye |
| Product Information | |
| Diameter | 4.92" |
| Mount Type | Conduit Box Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | ,, 2 MP (1920 x 1080) resolution, 30fps at all resolutions (H.265/H.264), Built-in 3mm fixed lens, Day and Night (ICR), WDR (120dB), H.265/H.264, MJPEG codec supported, Multiple streaming, Hallway view, WiseStream II support, IR Viewable Length 20m, Micro SD/SDHC memory slot (Max. 32GB), PoE, support, Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection |
| Impact Protection Rating | IK10 |
