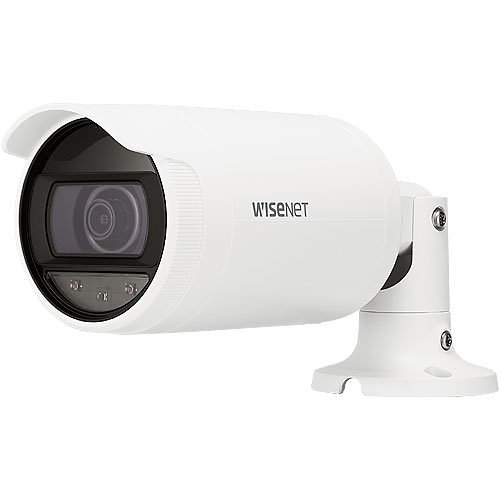

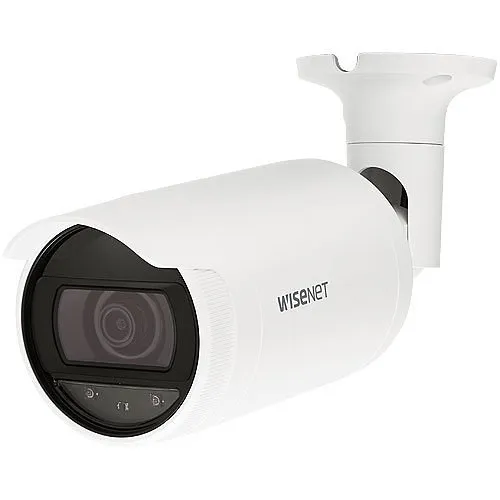

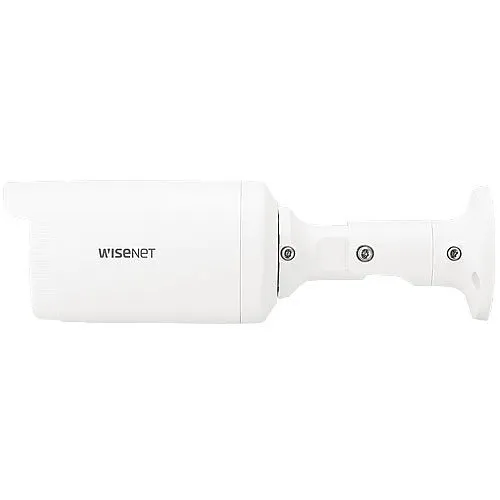

Hanwha ANO-L7022R A-Series 4MP Bullet Camera, 4mm Lens, White
Image of 4
Key Features
- Deliver crisp 4MP video with a 4mm wide-angle lens for clear identification and broader coverage
- Reduce storage and bandwidth costs with H.265 and WiseStream II while maintaining high-quality surveillance streams
- 24/7 reliable monitoring thanks to 120dB WDR and up to 25m IR illumination for low-light and backlit scenes
- Rugged, outdoor-ready IP66 and IK10 housing protects against weather and vandalism for perimeter security
- Easy, flexible deployment with PoE installation and onboard microSD recording for local backup during outages
Quick Specifications
- Product Model
- ANO-L7022R
- Brand Name
- Hanwha Vision
- Product Name
- 4MP IR Bullet
- Product Type
- Bullet Camera
Frequently Bought Together
Hanwha ANO-L7022R A-Series 4MP Bullet Camera, 4mm Lens, White
$135.77
7 items selected
Total: $2,342.75
Explore the details
Product information
ANO-L7022R
Overview
Built for reliable outdoor security and professional monitoring, the Hanwha Vision ANO-L7022R A-Series 4MP bullet camera delivers sharp, usable video where it matters most. Designed as an all-in-one surveillance solution, this 4MP camera captures detailed 2560 x 1440 footage at up to 30 fps using a 4mm fixed lens that balances wide coverage with identification capability. Advanced imaging features—120dB WDR and infrared illumination up to 25m—ensure clear images in challenging light, while H.265 with WiseStream II reduces bandwidth and storage without compromising quality. The ANO-L7022R simplifies installation with Power over Ethernet (PoE) and supports local microSD recording for redundancy. Built to last, its IP66 and IK10-rated housing withstands harsh weather and vandal attempts, making it ideal for parking lots, building perimeters, retail exteriors, and multi-site deployments. Integrate this Hanwha Vision bullet camera into your security system to improve situational awareness and continuous monitoring—order today to upgrade your surveillance coverage.
Features
- Deliver crisp 4MP video with a 4mm wide-angle lens for clear identification and broader coverage
- Reduce storage and bandwidth costs with H.265 and WiseStream II while maintaining high-quality surveillance streams
- 24/7 reliable monitoring thanks to 120dB WDR and up to 25m IR illumination for low-light and backlit scenes
- Rugged, outdoor-ready IP66 and IK10 housing protects against weather and vandalism for perimeter security
- Easy, flexible deployment with PoE installation and onboard microSD recording for local backup during outages
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP IR Bullet |
| Product Type | Bullet Camera |
| Product Model | ANO-L7022R |
| Product Series | A |
| Country of Origin | VN |
| Manufacturer Part Number | ANO-L7022R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Aspect Ratio | 16:9 |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 42.90° |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 82.02' |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 95% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4mm |
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 0.86lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Product Information | |
| Diameter | 3.07" |
| Mount Type | Backbox Mount, Corner Mount |
| Product Replacements & Other Alternatives | |
| Model Number Alternative | DS-2CD2087G2-L 4MM |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 4mm lens w/ 78.2° HFoV |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
