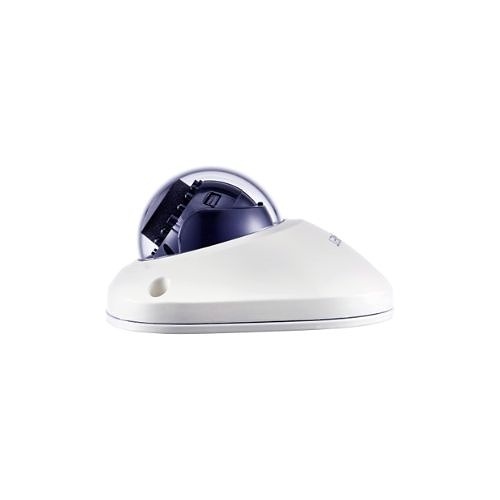

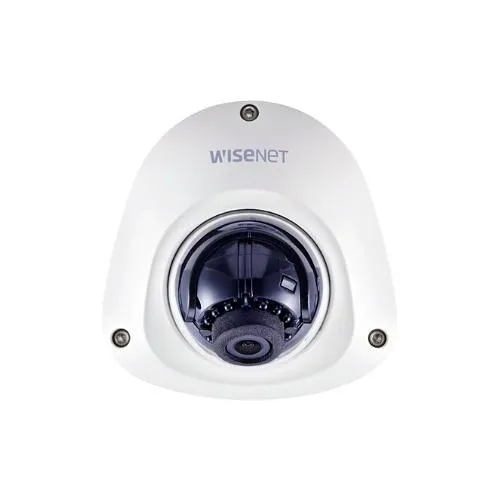

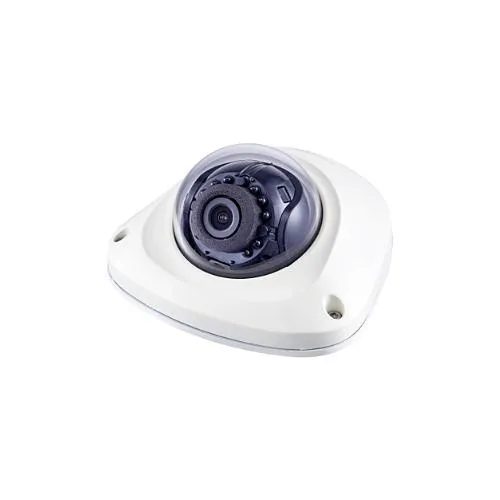

Hanwha ANV-L6023R Series 2MP Vandal Flateye Dome IP Camera, 3.6mm Fixed Lens, White

SKU: ANV-L6023R Hanwha Vision
Discount Hanwha ANV-L6023R A Series 2MP Vandal Dome Camera
Product images for Hanwha ANV-L6023R Series 2MP Vandal Flateye Dome IP Camera, 3.6mm Fixed Lens, White. 4 image(s) available. Click on image to view full size.
NDAA Compliant Sale 12% OFF

Key Features

  • Robust vandal- and weather-resistant housing (IK10, IP66) protects critical outdoor installations and reduces maintenance and replacement costs
  • Clear, reliable 2MP Full HD surveillance with 3.6mm wide-angle lens (94.8° HFoV) to cover entrances, corridors and perimeter areas with fewer cameras
  • Efficient H.265 + WiseStream II compression and PoE support lower bandwidth and simplify installation while preserving image quality
  • Day/night ICR, 15m IR range and 120dB WDR deliver usable color and detail in challenging light and nighttime monitoring
  • NDAA compliant with onboard microSD storage (up to 32GB) and advanced analytics (motion, defocus, tamper, directional) for flexible, secure edge recording and smart alerts

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
2MP IR Flateye Camera
Product Type
Flateye Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for dependable perimeter and facility monitoring, the Hanwha Vision ANV-L6023R Flateye Dome IP Camera combines rugged protection with intelligent imaging to keep your site secure. This 2MP Full HD surveillance camera delivers clear 1080p footage via a 3.6mm fixed lens (94.8° HFoV), so you can cover wide areas with fewer devices. Built-in PoE simplifies deployment while H.265 plus WiseStream II compression reduces bandwidth and storage costs. The camera’s day/night ICR, 120dB WDR and 15m IR range ensure usable images across harsh lighting conditions and at night, and onboard analytics — motion, defocus, directional and tamper detection — cut false alarms and focus attention where it matters. Rated IK10 and IP66 and NDAA compliant, the ANV-L6023R is purpose-built for outdoor security, public spaces and critical infrastructure. Choose this Hanwha Vision IP camera for reliable, low-maintenance surveillance and edge recording with optional microSD. Contact us to specify the ANV-L6023R for your next security or monitoring deployment.

Features

  • Robust vandal- and weather-resistant housing (IK10, IP66) protects critical outdoor installations and reduces maintenance and replacement costs
  • Clear, reliable 2MP Full HD surveillance with 3.6mm wide-angle lens (94.8° HFoV) to cover entrances, corridors and perimeter areas with fewer cameras
  • Efficient H.265 + WiseStream II compression and PoE support lower bandwidth and simplify installation while preserving image quality
  • Day/night ICR, 15m IR range and 120dB WDR deliver usable color and detail in challenging light and nighttime monitoring
  • NDAA compliant with onboard microSD storage (up to 32GB) and advanced analytics (motion, defocus, tamper, directional) for flexible, secure edge recording and smart alerts
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP IR Flateye Camera
Product Type Flateye Camera
Product Model ANV-L6023R
Product Series A
Manufacturer Part Number ANV-L6023R
Technical Information
Lens Type Fixed Focus
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.6mm
Connectivity Technology Wired
Field of View (Vertical) 49.3°
Field of View (Horizontal) 94.8°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.6mm
Lens Included Yes
Maximum Focal Length 3.6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QNV-6023R
Physical Characteristics
Color White
Weight 0.65lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Product Information
Mount Type Desktop Mount, Rack Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features ,, , NEMA4X support, 2 MP (1920 x 1080) resolution, 3.6mm lens w/ 94.8° HFoV, 30fps at all resolutions (H.265/H.264), Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, H.265/H.264, MJPEG codec support, Multiple streaming, Hallway View, WiseStream II support, IR viewable length 15m, Micro SD/SDHC memory slot (Max. 32GB), PoE
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
