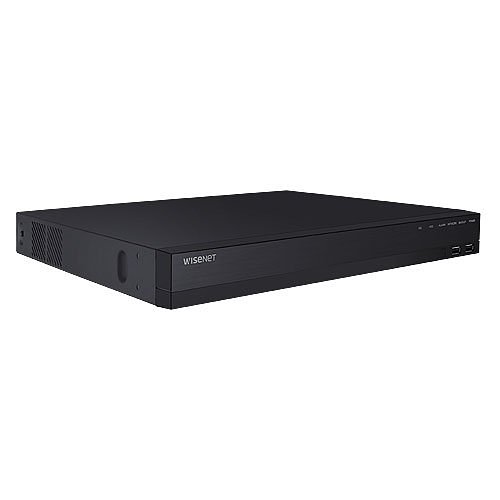

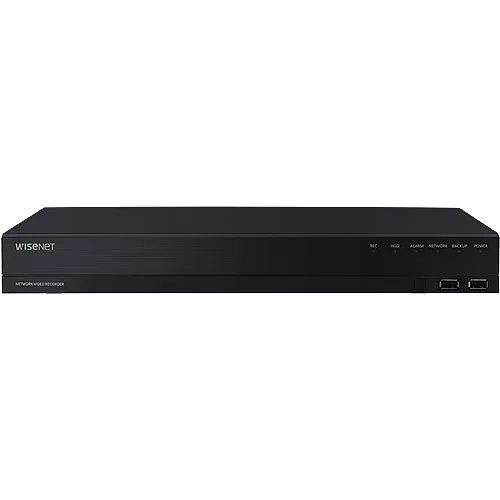

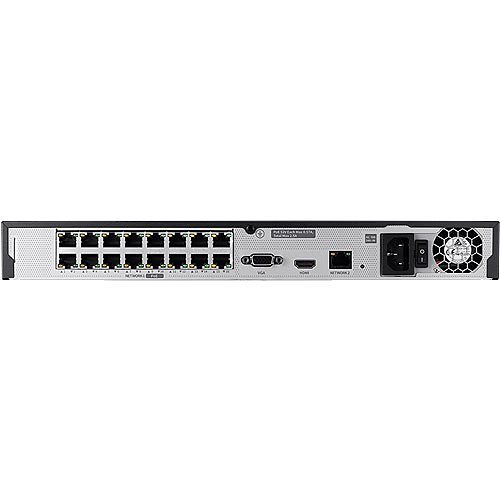

Hanwha ARN-1610S Series 16-Channel PoE NVR, 4TB, Black
Key Features
- Simplified deployment with 16 integrated PoE ports: power and network over a single cable reduces installation time and lowers infrastructure costs.
- Reliable 24/7 recording with 4TB onboard storage and support for up to 2 HDDs: retain critical footage locally for compliance and fast incident review.
- Efficient video compression (H.265 + WiseStream) minimizes bandwidth and storage use while preserving image quality for 8MP/4K cameras.
- Scalable 16-channel performance with up to 80 Mbps recording throughput: ideal for small-to-medium sites needing multi-camera surveillance.
- NDAA-compliant hardware with remote access (QR code P2P) and a 3-year limited warranty for secure, manageable network video recording.
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Group
- Product Name
- ARN-1610S 16 Channel PoE NVR
- Product Type
- Video Surveillance Station
Frequently Bought Together
Hanwha ARN-1610S Series 16-Channel PoE NVR, 4TB, Black
$602.99
13 items selected
Total: $2,265.81
Product Information Tabs
Overview
Designed for reliable, scalable security monitoring, the Hanwha Vision ARN-1610S Series 16-Channel PoE NVR delivers turnkey surveillance for retail, office, and campus environments. This network video recorder integrates 16 PoE ports with a 130W budget to power cameras directly, reducing cabling and simplifying installation. With a 4TB internal HDD and support for up to two drives, the ARN-1610S ensures continuous local recording and fast playback for incident response. Intelligent compression (H.265 plus WiseStream) lowers bandwidth and storage demands while keeping 4K/8MP image clarity for forensic analysis. Built-in features like dual-stream recording, HDMI output for local monitoring, and QR-code P2P connectivity make remote management and system expansion straightforward for IT and security teams. NDAA compliance and a 3-year limited warranty provide procurement confidence for government and enterprise projects. For reliable, low-latency surveillance and easy deployment across small-to-medium systems, choose the Hanwha ARN-1610S PoE NVR—perfect for 24/7 security, monitoring, and evidence capture. Contact us to specify or order this NVR for your next installation.
Features
- Simplified deployment with 16 integrated PoE ports: power and network over a single cable reduces installation time and lowers infrastructure costs.
- Reliable 24/7 recording with 4TB onboard storage and support for up to 2 HDDs: retain critical footage locally for compliance and fast incident review.
- Efficient video compression (H.265 + WiseStream) minimizes bandwidth and storage use while preserving image quality for 8MP/4K cameras.
- Scalable 16-channel performance with up to 80 Mbps recording throughput: ideal for small-to-medium sites needing multi-camera surveillance.
- NDAA-compliant hardware with remote access (QR code P2P) and a 3-year limited warranty for secure, manageable network video recording.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | ARN-1610S 16 Channel PoE NVR |
| Product Type | Video Surveillance Station |
| Product Model | ARN-1610S |
| Product Series | A |
| Manufacturer Part Number | ARN-1610S-4TB |
| Technical Information | |
| Video Formats | H.264, H.265, MJPEG |
| Storage Capacity | 4TB |
| Power Consumption | 188.20W |
| Maximum Frame Rate | 120fps |
| Number of Channels | 16 |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Certifications | |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 1 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 12.6" |
| Width | 14.6" |
| Height | 1.7" |
| Weight | 6.35 lb |
| Storage | |
| Recording Formats | 4K |
| Hard Drive Capacity | 4TB |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
