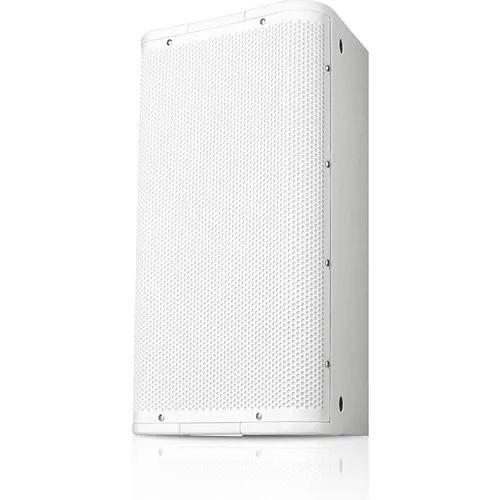

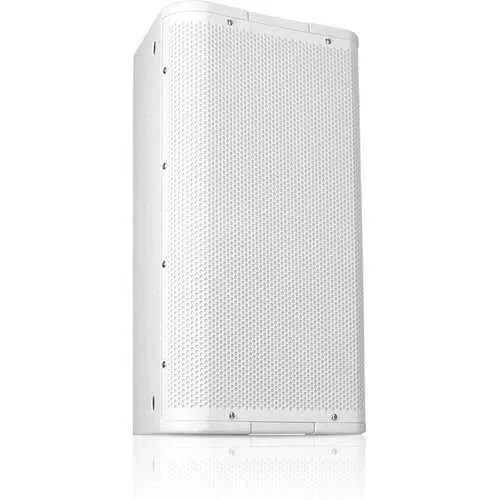

QSC AP-5102WH AcousticPerformance Series 10" 2-Way, High Power Loudspeaker, 105˚ Conical DMT 450W RMS, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Consistent, wide-area coverage with 105° Conical DMT for even sound across rooms, reducing hotspots and installers' tuning time
- High-impact, reliable output (450W RMS) that sustains clear foreground and background audio for large venues and paging systems
- Flexible installation: passive or bi-amp operation plus M10 fly points and optional yoke for fast, secure mounting in fixed installs
- Accurate voice reproduction from the 3" compression driver and 10" woofer for intelligible paging, monitoring and security audio
- Durable, unobtrusive design with powder-coated steel grille and white finish ideal for corporate, retail, surveillance and command-center environments
Quick Specifications
- Product Model
- AP-5102
- Brand Name
- QSC
- Product Line
- AcousticPerformance
- Product Name
- High-Power, 10" 2-Way, 105? Conical DMT
Product Information Tabs
Overview
Deliver powerful, intelligible installed audio wherever consistent coverage matters. The QSC AP-5102WH AcousticPerformance 10" 2-way pro speaker is engineered for high-power, installed sound reinforcement — from corporate AV and retail paging to security command centers and surveillance monitoring rooms. With 450W RMS handling and a 10" woofer paired to a 3" diaphragm compression driver, the AP-5102 produces full-range, articulate audio across a 60Hz–18kHz bandwidth. Its Directivity Matched Transition (DMT) and 105° conical waveguide deliver uniform on- and off-axis response, minimizing dropouts and reducing time spent tuning zones. Installers benefit from flyable M10 fittings, optional yoke bracket compatibility, and bi-amp/passive operation for flexible system design and amplifier efficiency. Built from Baltic birch with a powder-coated steel grille, the AP-5102 offers durable, low-profile aesthetics that blend into sensitive environments such as surveillance suites and public-safety facilities. Specify the QSC AP-5102WH for dependable, high-output performance in professional installations — contact sales or order now to optimize your next security, monitoring, or pro-audio deployment.
Features
- Consistent, wide-area coverage with 105° Conical DMT for even sound across rooms, reducing hotspots and installers' tuning time
- High-impact, reliable output (450W RMS) that sustains clear foreground and background audio for large venues and paging systems
- Flexible installation: passive or bi-amp operation plus M10 fly points and optional yoke for fast, secure mounting in fixed installs
- Accurate voice reproduction from the 3" compression driver and 10" woofer for intelligible paging, monitoring and security audio
- Durable, unobtrusive design with powder-coated steel grille and white finish ideal for corporate, retail, surveillance and command-center environments
| General Information | |
|---|---|
| Brand Name | QSC |
| Manufacturer | QSC Audio |
| Product Line | AcousticPerformance |
| Product Name | High-Power, 10" 2-Way, 105? Conical DMT |
| Product Type | Speaker |
| Product Model | AP-5102 |
| Product Series | AP |
| Manufacturer Part Number | AP-5102-WH |
| Technical Information | |
| Impedance | 8 ohms |
| Sensitivity | 94dB |
| Speaker Size | 10" |
| Crossover Type | 2-way |
| Application/Usage | Foreground and Background Sound Reinforecement |
| Audio | |
| RMS Output Power | 450W |
| Maximum Frequency Response | 18 kHz |
| Minimum Frequency Response | 60Hz |
| Physical Characteristics | |
| Size | 10" |
| Color | White |
| Depth | 10.5" |
| Width | 12" |
| Height | 22" |
| Weight | 48lb |
| Form Factor | Flyable |
| Product Information | |
| Diameter | 10" |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Directivity Matched Transition® (DMT) ensures smooth, coherent power response across the listening plane |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
