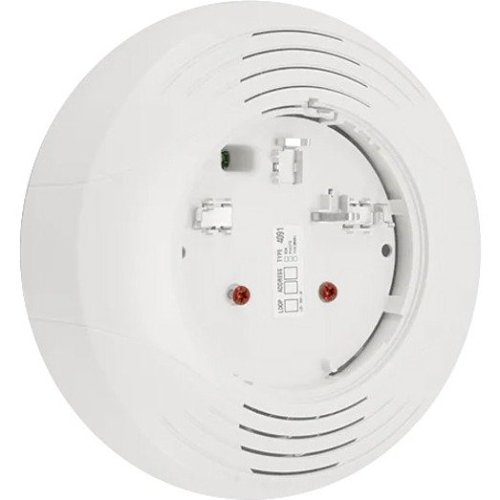

Fire-Lite B200S-LF-WH Intelligent Addressable Sounder Base, Low-Frequency, White
Image of 2
Key Features
- Proven low-frequency 520 Hz tone designed to wake sleeping occupants and improve life-safety response
- Integrated addressable sounder base simplifies installation and reduces field wiring and component count
- High audible output (greater than 85 dBA high, 75 dBA low) for code-compliant notification in commercial and residential settings
- Flexible installation with SEMS screws and 12–24 AWG support; operates on 16–33 VDC for broad system compatibility
- Compatible with System Sensor 7351 series detectors and meets UL/NFPA temporal pattern and UL268/UL464 requirements
Quick Specifications
- Product Model
- B200S-LF-WH
- Brand Name
- Fire-Lite Alarms by Honeywell
- Product Name
- B200S-LF-WH Addressable Sounder Base
- Product Type
- Detector Base
Frequently Bought Together
Fire-Lite B200S-LF-WH Intelligent Addressable Sounder Base, Low-Frequency, White
$139.19
6 items selected
Total: $399.87
Explore the details
Product information
B200S-LF-WH
Overview
Specifically engineered to improve occupant wake-up and life-safety outcomes, the Fire-Lite Alarms by Honeywell B200S-LF-WH intelligent addressable sounder base delivers dependable low-frequency notification for sleeping areas and high-risk zones. This detector base generates a 520 Hz low-frequency tone proven more effective at rousing people from sleep while providing a choice of tone patterns including ANSI Temporal 3 to meet NFPA 72 requirements. As an addressable detector base, it integrates cleanly into fire alarm control systems, supports System Sensor 7351 series detectors, and helps reduce labor and parts compared with separate sounders and bases. With high-volume output greater than 85 dBA (10 ft) and flexible 16–33 VDC operation, the unit supports a broad range of commercial, residential and healthcare monitoring applications. Installers benefit from SEMS screws and 12–24 AWG wiring support for fast, reliable terminations. Specify the B200S-LF-WH for code-compliant audible notification in your next fire alarm, security or life-safety system — contact us to order or for integration guidance.
Features
- Proven low-frequency 520 Hz tone designed to wake sleeping occupants and improve life-safety response
- Integrated addressable sounder base simplifies installation and reduces field wiring and component count
- High audible output (greater than 85 dBA high, 75 dBA low) for code-compliant notification in commercial and residential settings
- Flexible installation with SEMS screws and 12–24 AWG support; operates on 16–33 VDC for broad system compatibility
- Compatible with System Sensor 7351 series detectors and meets UL/NFPA temporal pattern and UL268/UL464 requirements
| General Information | |
|---|---|
| Brand Name | Fire-Lite Alarms by Honeywell |
| Manufacturer | Honeywell International, Inc |
| Product Name | B200S-LF-WH Addressable Sounder Base |
| Product Type | Detector Base |
| Product Model | B200S-LF-WH |
| Product Series | B200 |
| Country of Origin | MX |
| Manufacturer Part Number | B200S-LF-WH |
| Technical Information | |
| Device Supported | Detector, Sounder |
| Physical Characteristics | |
| Color | White |
| Miscellaneous | |
| Compatibility | System Sensor 7351 Series Detectors |
| Additional Information | Country of origin: Mexico. Country of origin is subject to change. |
