C2G C2G31012 HDMI HDBaseT and VGA, USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 5
Key Features
- Extend true 4K@60 over a single Cat6a cable to 130ft, enabling long-run AV installations without bulky HDMI cabling
- High-speed USB 2.0 over HDBaseT for KVM, cameras and touch displays up to 230ft, simplifying interactive whiteboard and surveillance integrations
- One-way PoH (Power over HDBaseT) powers the wall-plate transmitter from the receiver to eliminate a local power adapter and reduce installation cost
- HDCP 2.2 compliance and automatic source switching for secure content delivery and seamless source control in conference rooms and control centers
- Dual-input support (HDMI + VGA) plus analog audio passthrough provides flexible compatibility with legacy devices and modern 4K sources
Quick Specifications
- Product Model
- C2G31012
- Brand Name
- C2G by Legrand
- Product Name
- HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
- Product Type
- Audio and Video Extender
Frequently Bought Together
C2G C2G31012 HDMI HDBaseT and VGA, USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver
2 items selected
Total: $24.95
Product Information Tabs
Overview

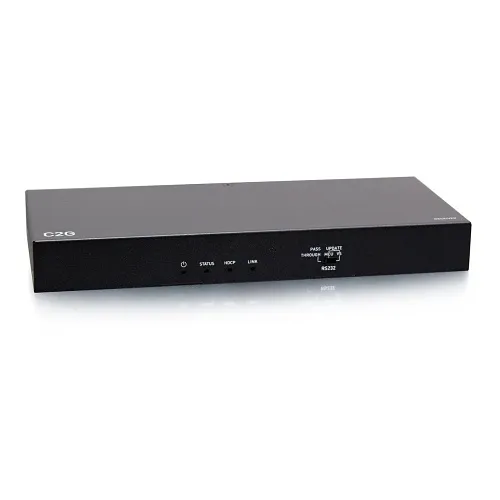

For installation environments that demand reliable long-distance AV and device control, the C2G by Legrand HDMI HDBaseT extender wall-plate transmitter to box receiver delivers a clean, professional solution. This HDMI HDBaseT extender supports 4K@60 video extension up to 130ft over Cat6a, while VGA and 1080p signals can reach farther distances for legacy displays. High-speed USB 2.0 pass-through over HDBaseT enables KVM control and USB camera connectivity up to 230ft—ideal for interactive whiteboards, lecture halls, secure conference rooms and surveillance/monitoring stations.

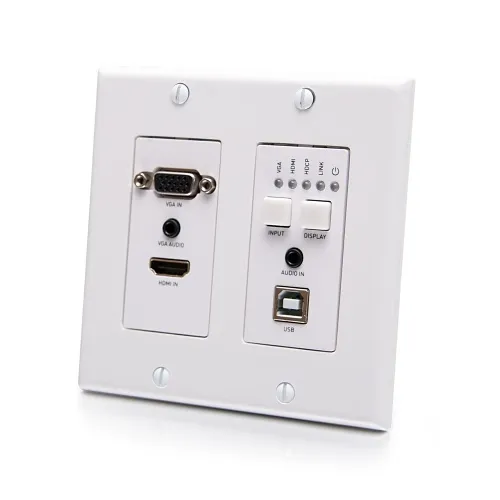

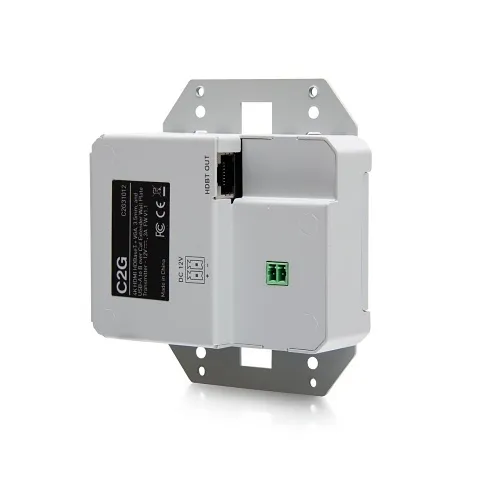

The unit supports PoH to power the wall-plate from the receiver, removing the need for local power at the transmitter and reducing installation complexity. HDCP 2.2 compliance and automatic source switching ensure secure, plug-and-play operation for AV, security and monitoring applications. Compact dual-gang wall-plate form factor keeps installations neat and professional and simplifies integration with structured network cabling.
Choose the C2G31012 for dependable long-run HDMI, VGA, audio and USB extension in corporate AV, education, control rooms and security deployments. Contact us for a site quote or add this HDBaseT extender to your next AV or surveillance project.
Features
- Extend true 4K@60 over a single Cat6a cable to 130ft, enabling long-run AV installations without bulky HDMI cabling
- High-speed USB 2.0 over HDBaseT for KVM, cameras and touch displays up to 230ft, simplifying interactive whiteboard and surveillance integrations
- One-way PoH (Power over HDBaseT) powers the wall-plate transmitter from the receiver to eliminate a local power adapter and reduce installation cost
- HDCP 2.2 compliance and automatic source switching for secure content delivery and seamless source control in conference rooms and control centers
- Dual-input support (HDMI + VGA) plus analog audio passthrough provides flexible compatibility with legacy devices and modern 4K sources
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Product Name | HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz |
| Product Type | Audio and Video Extender |
| Manufacturer Part Number | C2G31012 |
| Technical Information | |
| Cable Type | Category 5e, Category 6, Category 6a |
| Application/Usage | Commercial |
| Connector on Second End | 3.5mm, 4 USB Type A, DC Power Plug, HDMI, RJ-45 |
| Certifications | |
| TAA Compliant | No |
| Interfaces/Ports | |
| VGA In | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Color | White |
| Depth | 4.1" |
| Width | 3.5" |
| Height | 1.5" |
| Power Description | |
| Frequency | 60 Hz |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | NDAA 889, Prop 65, REACH, RoHS, TSCA |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, FCC, REACH |
