VIVOTEK CC9380-HV 5MP H.265 Fisheye 180° Panoramic IP Camera, 1.45mm Lens, White
Key Features
- Comprehensive 180° panoramic coverage from a single low-profile fisheye reduces blind spots and saves on installation and maintenance costs
- High-efficiency H.265 and 5MP imaging deliver crisp detail with lower bandwidth and storage needs for long-term surveillance
- IP66 weatherproof and IK10 vandal-resistant housing ensures reliable outdoor performance in harsh environments
- Anti-ligature design and compact form factor make it suitable for sensitive installations like healthcare and detention facilities

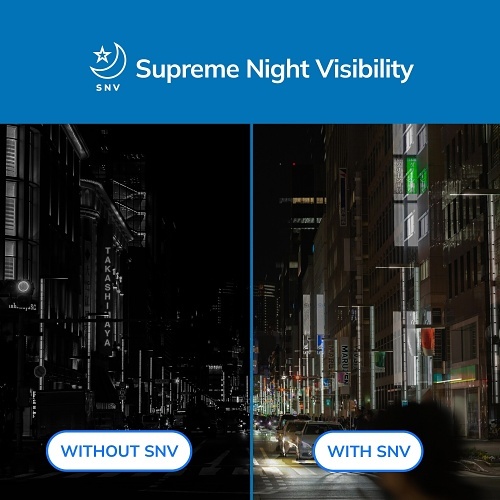

- Built-in WDR, SNV and 3D noise reduction improve visibility in challenging light and low-light conditions for consistent monitoring
Quick Specifications
- Brand Name
- VIVOTEK
- Manufacturer
- Vivotek, Inc
- Product Name
- Anti-Ligature Fisheye Network Camera
- Product Type
- Network Camera
Frequently Bought Together
VIVOTEK CC9380-HV 5MP H.265 Fisheye 180° Panoramic IP Camera, 1.45mm Lens, White
$414.71
5 items selected
Total: $2,059.83
Product Information Tabs
Overview
Protect large indoor and outdoor areas with a single camera that combines expansive panoramic coverage and resilient design. The VIVOTEK CC9380-HV panoramic IP camera provides a seamless 180° field of view using a 1.45mm fisheye lens, enabling close-range surveillance and reducing the number of cameras needed for corridors, lobbies and open spaces. With 5MP resolution and H.265 compression, the CC9380-HV delivers high-detail video while minimizing bandwidth and storage costs—critical for enterprise security and remote monitoring deployments. Built for demanding environments, the camera features IP66 weatherproofing and IK10 impact resistance plus an anti-ligature housing for safer installations in healthcare and correctional facilities. Advanced imaging tools including WDR Pro, SNV and 3D noise reduction ensure clear evidence-quality footage in high-contrast and low-light scenes. Integrated audio, local SD storage and secure networking round out a versatile solution for security integrators and facility managers. Ideal for transport hubs, campuses and sensitive public spaces—contact sales to specify the CC9380-HV for your next surveillance project.
Features
- Comprehensive 180° panoramic coverage from a single low-profile fisheye reduces blind spots and saves on installation and maintenance costs
- High-efficiency H.265 and 5MP imaging deliver crisp detail with lower bandwidth and storage needs for long-term surveillance
- IP66 weatherproof and IK10 vandal-resistant housing ensures reliable outdoor performance in harsh environments
- Anti-ligature design and compact form factor make it suitable for sensitive installations like healthcare and detention facilities
- Built-in WDR, SNV and 3D noise reduction improve visibility in challenging light and low-light conditions for consistent monitoring
| General Information | |
|---|---|
| Brand Name | VIVOTEK |
| Manufacturer | Vivotek, Inc |
| Product Name | Anti-Ligature Fisheye Network Camera |
| Product Type | Network Camera |
| Product Model | CC9380-HV |
| Product Series | C |
| Manufacturer Part Number | CC9380-HV |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.45mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/32000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.4mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.45mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | CC8370-HV |
| Physical Characteristics | |
| Color | White |
| Depth | 2.3" |
| Width | 2.6" |
| Height | 4.5" |
| Weight | 11.92oz |
| Durability | Dust Resistant, Impact Resistant, Vandalproof, Waterproof, Weatherproof |
| Form Factor | Fisheye |
| Product Information | |
| Mount Type | Bracket Mount |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 4-Year |
| Miscellaneous | |
| Features | 3D Noise Reduction, Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Defog, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | TW |
| Impact Protection Rating | IK10 |
