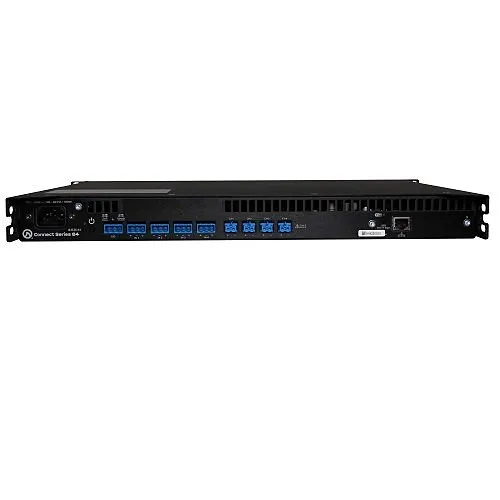

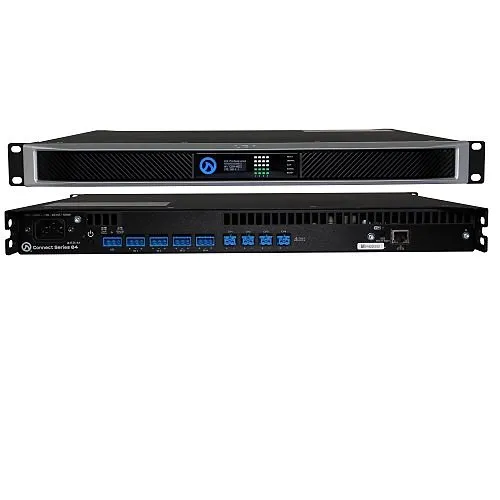

LEA Professional CONNECT 84 4-Channel Smart Amplifier, 80W per Channel
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Simple browser-based management and built-in Wi‑Fi hotspot for remote setup, monitoring and firmware updates — reduces site visits and keeps systems online.
- Flexible LoZ and HiZ outputs (4 channels) plus Smart Power Bridge for on-demand doubling of channel power — adapts to mixed speaker loads and paging zones.
- Integrated DSP (crossovers, EQ, limiting) lets you optimize audio for speech intelligibility in security, surveillance and public-address applications.
- High-efficiency Class D design lowers rack heat and energy costs while delivering 80W per channel for reliable, clear amplification.
- Six-year limited warranty and RoHS compliance for long-term, environmentally conscious installations in commercial and security environments.
Quick Specifications
- Product Model
- 84
- Brand Name
- LEA Professional
- Product Line
- CONNECT
- Product Name
- Connect 84 Amplifier
Explore the details
Product information
CONNECT 84
Overview
Deliver clear, dependable audio for security, surveillance and commercial AV systems with the LEA Professional CONNECT 84 4-channel smart amplifier. Designed for installers and system integrators, this pro amplifier combines 80W per channel power with an efficient Class D output stage and onboard DSP so paging, monitoring and background music sound consistent and intelligible across large coverage areas. The CONNECT 84 offers selectable LoZ and HiZ outputs (70V/100V) and a proprietary Smart Power Bridge to double a channel’s power when you need extra headroom—ideal for multi-zone installations or emergency voice evacuation. Manage and monitor the amplifier from any device via the web browser UI, built-in Wi‑Fi hotspot or Ethernet connection for fast configuration and remote health checks. With a compact 1U, 19" chassis and a 6‑year warranty, the CONNECT 84 minimizes rack space and long-term service risk. Specify the LEA Professional CONNECT 84 for your next security or surveillance audio project — contact sales or add to your system design today.
Features
- Simple browser-based management and built-in Wi‑Fi hotspot for remote setup, monitoring and firmware updates — reduces site visits and keeps systems online.
- Flexible LoZ and HiZ outputs (4 channels) plus Smart Power Bridge for on-demand doubling of channel power — adapts to mixed speaker loads and paging zones.
- Integrated DSP (crossovers, EQ, limiting) lets you optimize audio for speech intelligibility in security, surveillance and public-address applications.
- High-efficiency Class D design lowers rack heat and energy costs while delivering 80W per channel for reliable, clear amplification.
- Six-year limited warranty and RoHS compliance for long-term, environmentally conscious installations in commercial and security environments.
| General Information | |
|---|---|
| Brand Name | LEA Professional |
| Manufacturer | LEA Professional |
| Product Line | CONNECT |
| Product Name | Connect 84 Amplifier |
| Product Type | Amplifier |
| Product Model | 84 |
| Product Series | Connect |
| Manufacturer Part Number | CONNECT 84 |
| Technical Information | |
| Impedance | 8 ohms |
| Audio Channels | 4 |
| Classification | D |
| Audio | |
| RMS Output Power | 320W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20Hz |
| Total Harmonic Distortion (THD) | 0.1% |
| Energy & Performance | |
| Operating Power Consumption | 100W |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Width | 19" |
| Height | 1.8" |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Product Information | |
| Length | 14.3" |
| Warranty | |
| Limited Warranty | 6 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
