System Sensor COSMOD2W i4 Series, 2-Wire Interface Module (Required to use with COSMO-2W Models)

SKU: COSMOD2W System Sensor
System Sensor 2-wire Interface Module (Required to Use with COSMO-2W Models)

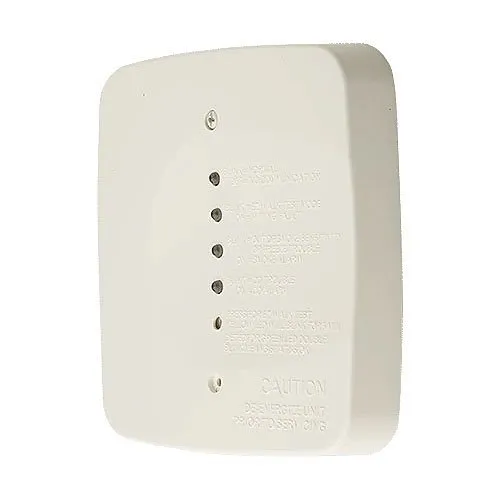

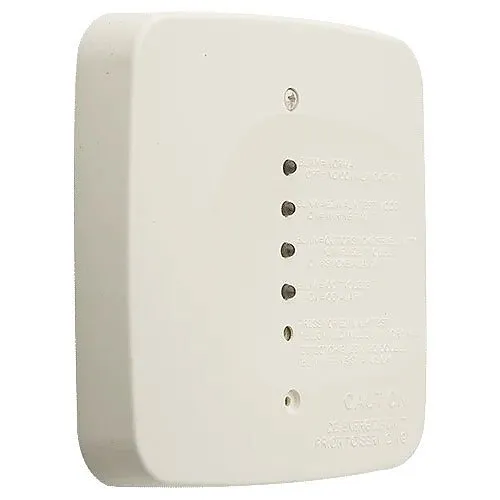

Product images for System Sensor COSMOD2W i4 Series, 2-Wire Interface Module (Required to use with COSMO-2W Models). 3 image(s) available. Click on image to view full size.

Key Features

  • Simplifies installation by integrating up to 12 COSMO/i4 detectors onto just 2–3 zones, reducing wiring and panel I/O requirements
  • Provides distinct smoke and CO signaling with interconnected sounders for site-wide alarm notification and faster occupant warning
  • Quick mounting to a 4 11/16" square back box and durable SEMS-screw terminals for reliable, time-saving installs
  • On-board LED status indicators show loop health, smoke, CO, maintenance and trouble conditions for fast field diagnostics
  • Supports optional trigger inputs to coordinate multiple modules, ideal for scalable fire alarm and security monitoring systems

Quick Specifications

Product Model
COSMOD2W
Brand Name
System Sensor
Product Name
2-wire Interface Module (Required to Use with COSMO-2W Models)
Product Type
Interface Module
View Full Technical Specifications

Frequently Bought Together

This Item
System Sensor COSMOD2W i4 Series, 2-Wire Interface Module (Required to use with COSMO-2W Models)

System Sensor COSMOD2W i4 Series, 2-Wire Interface Module (Required to use with COSMO-2W Models)

$76.24

Frequently Bought Together (2 items)

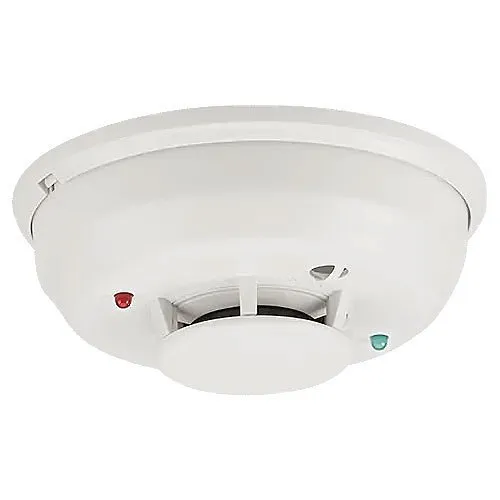

System Sensor 2WTA-B Photoelectric i3 Series Smoke Detector, 2-Wire with Thermal Sensor and Built-In Sounder, White

$71.51

System Sensor COSMO-2W i4 Series, 12/24V, 2-Wire, System-Connected, Combination Carbon Monoxide/Smoke Detector with RealTest Technology

$143.15

3 items selected

Total: $290.90

Explore the details

Product information

COSMOD2W

Overview

Simplify fire and CO detection integration while improving occupant safety with the System Sensor COSMOD2W i4 Series 2-Wire Interface Module. Designed for use with COSMO-2W and compatible i3/i4 detectors, this interface lets you connect up to 12 detectors to the fire alarm control panel using only 2–3 zones, cutting wiring complexity and conserving panel resources. The module reports distinct smoke and carbon monoxide events to the panel and can interconnect all detector sounders so a single alarm condition provides immediate, site-wide notification. Built for installers, the COSMOD2W mounts to a 4 11/16" square back box and uses SEMS screw terminals for secure, repeatable connections; it runs on 35V DC and includes LED indicators for loop status, trouble, maintenance and end-of-life. Ideal for commercial and residential security and fire alarm projects, this wired interface module streamlines monitoring, reduces service time, and enhances system reliability. Add the COSMOD2W to your surveillance and safety infrastructure for coordinated smoke and CO monitoring—order now or contact us for specification support.

Features

  • Simplifies installation by integrating up to 12 COSMO/i4 detectors onto just 2–3 zones, reducing wiring and panel I/O requirements
  • Provides distinct smoke and CO signaling with interconnected sounders for site-wide alarm notification and faster occupant warning
  • Quick mounting to a 4 11/16" square back box and durable SEMS-screw terminals for reliable, time-saving installs
  • On-board LED status indicators show loop health, smoke, CO, maintenance and trouble conditions for fast field diagnostics
  • Supports optional trigger inputs to coordinate multiple modules, ideal for scalable fire alarm and security monitoring systems
20 of 20 specifications
Technical specifications for System Sensor COSMOD2W i4 Series, 2-Wire Interface Module (Required to use with COSMO-2W Models)
General Information
Brand Name System Sensor
Manufacturer Honeywell International, Inc
Product Name 2-wire Interface Module (Required to Use with COSMO-2W Models)
Product Type Interface Module
Product Model COSMOD2W
Product Series i4
Application/Usage Smoke Detector
Country of Origin MX
Manufacturer Part Number COSMOD2W
Technical Information
Detectable Gas Carbon Monoxide
Connectivity Technology Wired
Controls/Indicators
Status Indicators Yes
Physical Characteristics
Depth 1.20"
Width 6.00"
Form Factor Ceiling Mount, Wall Mount
Power Description
Power Source DC Power
Input Voltage 35V DC
Product Information
Mount Type Ceiling Mount, Wall Mount
Installation Type Residential
Miscellaneous
Compatibility System Sensor Smoke Detectors: COSMO-2W 2WTA-B
