TP-Link CPE710 Outdoor CPE, 5 GHz, AC 867 Mbps, 23dBi

SKU: CPE710 TP-Link
Image of FP-CPE710
Product images for TP-Link CPE710 Outdoor CPE, 5 GHz, AC 867 Mbps, 23dBi. 10 image(s) available. Click on image to view full size.

Key Features

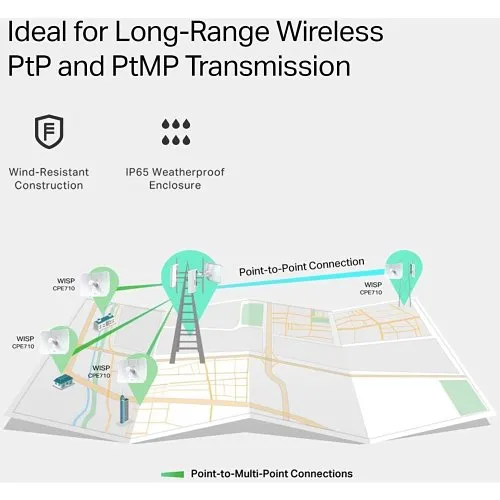

  • Deliver reliable long-range links for security, surveillance and remote site connectivity with a focused 23 dBi directional antenna
  • Support high-bandwidth video and data traffic using 5 GHz AC performance (up to 867 Mbps) and Gigabit Ethernet backhaul
  • Reduce interference and latency for consistent monitoring with 2x2 MIMO, NoWait and 80 MHz channel support

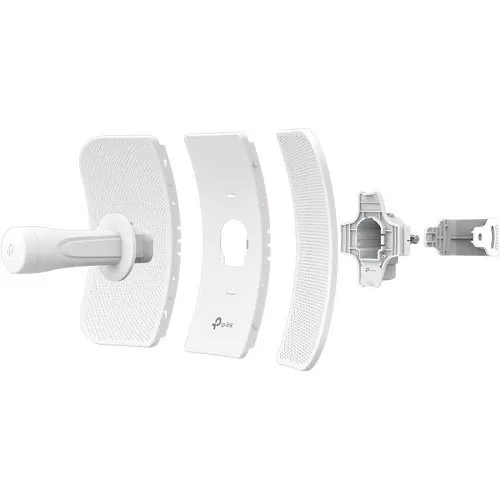

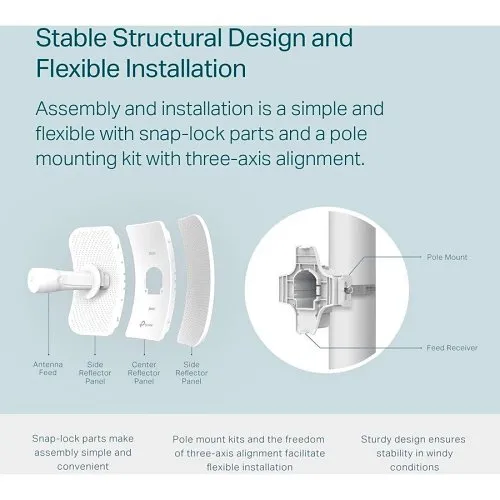

  • Simplify deployment and management with snap-lock assembly, three-axis pole mounting and centralized Pharos Control/PharOS management
  • Built for all-weather outdoor use: IP65-rated enclosure with 15kV ESD and 6kV lightning protection for resilient network bridging

Quick Specifications

Product Model
CPE710
Brand Name
TP-Link
Product Line
Pharos
Product Name
5GHz AC 867Mbps 23dBi Outdoor CPE
View Full Technical Specifications

Product Information Tabs

Overview

Optimize long-distance wireless links for security, surveillance and campus monitoring with the TP-Link CPE710 outdoor network bridge. Designed as a high-performance outdoor CPE, the CPE710 delivers 5 GHz AC connectivity with up to 867 Mbps throughput and a focused 23 dBi directional Cassegrain antenna to extend reliable, low-latency links between distant sites or camera clusters. Built-in Gigabit Ethernet provides a robust backhaul for high-definition video and data, while 2x2 MIMO and NoWait technology minimize interference and packet delay for smooth monitoring and remote access. Installation is fast and flexible—snap-lock assembly and three-axis pole mounting let you align the radio quickly, and centralized Pharos Control or the web-based PharOS interface simplifies fleet management, firmware updates and network diagnostics from a single PC. Rugged IP65 housing plus strong ESD and lightning protection keep the bridge online in harsh outdoor environments. Ideal for linking security cameras, connecting remote buildings, or creating long-range wireless backhaul, the TP-Link CPE710 is a cost-effective solution for professional network and surveillance deployments. Contact sales or add to cart to deploy reliable outdoor wireless links today.

Features

  • Deliver reliable long-range links for security, surveillance and remote site connectivity with a focused 23 dBi directional antenna
  • Support high-bandwidth video and data traffic using 5 GHz AC performance (up to 867 Mbps) and Gigabit Ethernet backhaul
  • Reduce interference and latency for consistent monitoring with 2x2 MIMO, NoWait and 80 MHz channel support
  • Simplify deployment and management with snap-lock assembly, three-axis pole mounting and centralized Pharos Control/PharOS management
  • Built for all-weather outdoor use: IP65-rated enclosure with 15kV ESD and 6kV lightning protection for resilient network bridging
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Line Pharos
Product Name 5GHz AC 867Mbps 23dBi Outdoor CPE
Product Type Outdoor Solutions, Wireless Bridge
Product Model CPE710
Manufacturer Part Number CPE710
Technical Information
Data Encryption Yes
MIMO Technology Yes
Wi-Fi Generation Wi-Fi 5
Wireless LAN Standard 802.11a/n/ac
Wireless Transmission Speed 867 Mbps
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Physical Characteristics
Color White
Depth 11"
Width 14.4"
Height 8.1"
Form Factor Pole Mount
Product Information
Mount Type Pole Mount
Tuner
Frequency Band 5GHz
Warranty
Limited Warranty 2-Year
Wireless Specifications
Encryption Standard AES, TKIP, WPA, WPA2, WPA2-PSK, WPA-PSK
Miscellaneous
Indoor/Outdoor Outdoor
Country of Origin VN
Environmentally Friendly Yes
