Marshall CV368 Compact Global Camera, CS Mount

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of 99-CV368
Product images for Marshall CV368 Compact Global Camera, CS Mount. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver crisp, motion-free 1080p60 video for live events and critical monitoring, improving clarity in fast-moving scenes.
  • Global shutter and 1/1.8" Sony Exmor sensor minimize motion blur and enhance image fidelity for broadcast and surveillance.
  • CS lens mount provides flexible lens choices so you can tailor field-of-view and low-light performance to each installation.

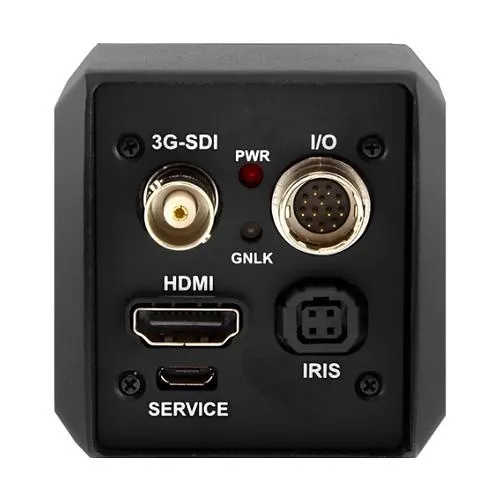

  • Tri-level Genlock and 3G/HD-SDI + HDMI outputs simplify multi-camera synchronization and integration into broadcast or security systems.
  • Rugged design and wide operating range (up to 122°F) ensure dependable operation for indoor and demanding outdoor surveillance deployments.

Quick Specifications

Product Model
CV368
Brand Name
Marshall Electronics
Manufacturer Part Number
CV368
View Full Technical Specifications

Product Information Tabs

Overview

Optimize live production and security monitoring with the Marshall Electronics CV368 Compact Global Camera — a compact video production camera engineered for broadcasters and surveillance professionals. The CV368 pairs a 1/1.8" Sony Exmor sensor with a global shutter to capture clean, motion-free 1080p60 images and deliver a 3.2MP effective resolution ideal for fast-paced environments and accurate incident review. CS lens compatibility gives you the freedom to choose optics for wide-area monitoring or detailed close-ups, while tri-level Genlock and 3G/HD-SDI plus HDMI outputs make multi-camera synchronization and system integration straightforward. Built for reliability, the CV368 tolerates a wide operating range and supports remote control via RS-485, making it a practical choice for stadiums, broadcast studios, control rooms, and perimeter surveillance. With low-light sensitivity (0.5 lux) and image stabilization features, it improves detection and clarity where it matters most. Upgrade your surveillance or production workflow with the Marshall CV368 — configure it for live events, security monitoring, or multi-camera broadcast setups today.

Features

  • Deliver crisp, motion-free 1080p60 video for live events and critical monitoring, improving clarity in fast-moving scenes.
  • Global shutter and 1/1.8" Sony Exmor sensor minimize motion blur and enhance image fidelity for broadcast and surveillance.
  • CS lens mount provides flexible lens choices so you can tailor field-of-view and low-light performance to each installation.
  • Tri-level Genlock and 3G/HD-SDI + HDMI outputs simplify multi-camera synchronization and integration into broadcast or security systems.
  • Rugged design and wide operating range (up to 122°F) ensure dependable operation for indoor and demanding outdoor surveillance deployments.
General Information
Brand Name Marshall Electronics
Manufacturer Part Number CV368
Technical Information
Effective Camera Resolution 3.2MP
Camera
Image Sensor Type CMOS
Environmental Conditions
Maximum Operating Temperature 122°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.5 lux
Warranty
Limited Warranty 1-Year
Miscellaneous
Features 1/1.8" 3.2MP Sony Exmor Sensor, 3G/HD-SDI and HDMI Outputs, Accepts C/CS Mount Lenses, Capture up to 1080p60 Video, Global Shutter, Tri-Level Genlock Sync, igital Image Stabilization, AWB, Image Flip/Mirror, Digital Zoom, Mic/Line-Level Audio Input Selection, RS-485 Control
