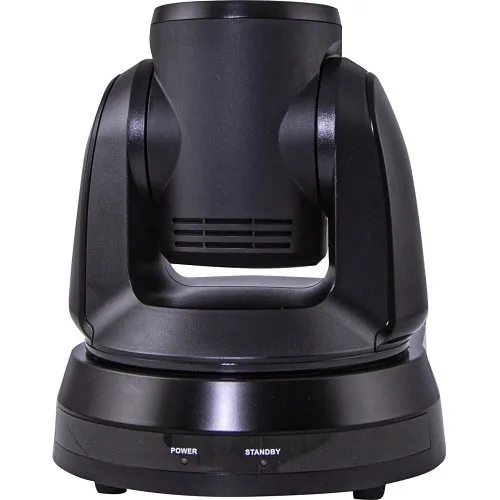

Marshall CV620-TBI Full HD PTZ Camera, Flexible Networkable IP Interface with Simultaneous 3GSDI and HDMI outputs, 20x Optical Zoom, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- AI-driven auto-track and frame keeps presenters and subjects centered with smooth, natural motion, reducing the need for an operator.
- Full HD 1080p60 imaging and 20x optical zoom capture crisp detail for conferencing, security, and remote monitoring.
- One-cable PoE+ setup delivers power, control and network video for faster, lower-cost installations.
- Simultaneous 3G-SDI, HDMI and IP outputs simplify integration with broadcast, AV and surveillance systems.
- Quiet, precision PTZ motion with wide pan/tilt range enables unobtrusive surveillance and professional camera moves.
- Built for flexible deployment—mount on wall or ceiling and integrate with VMS, streaming platforms and third-party control systems.
Quick Specifications
- Product Model
- CV620-TBI
- Brand Name
- Marshall Electronics
- Product Name
- 20x AI Track & Follow PTZ Camera
- Product Type
- Network Camera
Product Information Tabs
Overview
Designed for meeting rooms, lecture halls and security installations, the Marshall CV620-TBI PTZ camera delivers reliable, operator-free capture with professional image quality. This Marshall Electronics network camera combines AI facial learning for smooth auto-track and framing with a 20x optical zoom and Full HD 1080p60 output, so remote viewers get sharp, well-composed video whether you’re monitoring a campus, streaming a presentation, or recording a training session. PoE+ single-cable connectivity reduces installation time and cost while providing power, control and IP video. Simultaneous 3G-SDI, HDMI and H.264 IP outputs make integration straightforward for broadcast, AV and surveillance systems, and the quiet, adjustable PTZ motion preserves a distraction-free environment. With built-in stereo audio input and broad protocol support (RTSP/RTMP/SRT/DHCP/HTTPS), the CV620-TBI is ideal for security surveillance, live streaming, and enterprise video conferencing. Upgrade your monitoring and capture workflows with a camera that simplifies deployment and delivers dependable, professional-grade footage—contact sales or add it to your AV rack today.
Features
- AI-driven auto-track and frame keeps presenters and subjects centered with smooth, natural motion, reducing the need for an operator.
- Full HD 1080p60 imaging and 20x optical zoom capture crisp detail for conferencing, security, and remote monitoring.
- One-cable PoE+ setup delivers power, control and network video for faster, lower-cost installations.
- Simultaneous 3G-SDI, HDMI and IP outputs simplify integration with broadcast, AV and surveillance systems.
- Quiet, precision PTZ motion with wide pan/tilt range enables unobtrusive surveillance and professional camera moves.
- Built for flexible deployment—mount on wall or ceiling and integrate with VMS, streaming platforms and third-party control systems.
| General Information | |
|---|---|
| Brand Name | Marshall Electronics |
| Manufacturer | Marshall Electronics, Inc |
| Product Name | 20x AI Track & Follow PTZ Camera |
| Product Type | Network Camera |
| Product Model | CV620-TBI |
| Packaged Quantity | 1 |
| Manufacturer Part Number | CV620-TBI |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 20x |
| Field of View | 60° (Wide) to 3° (Tele) |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 5.3mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | Sony IMX327 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Exposure | |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Focal Length | 110mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 6.9" |
| Width | 7.3" |
| Height | 7.3" |
| Weight | 4.41lb |
| Power Description | |
| Input Voltage | 16V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Recording Formats | Full HD |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Features | 3D Noise Reduction, Auto Gain Control, Auto Tracking, Automatic White Balance, Microphone In, PTZ |
| Country of Origin | TW |
