Marshall CV620-TWI AI Track and Follow PTZ Camera, Flexible Networkable IP Interface with Simultaneous 3GSDI and HDMI Outputs, 20x Optcal Zoom, White

SKU: CV620-TWI Marshall Electronics

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

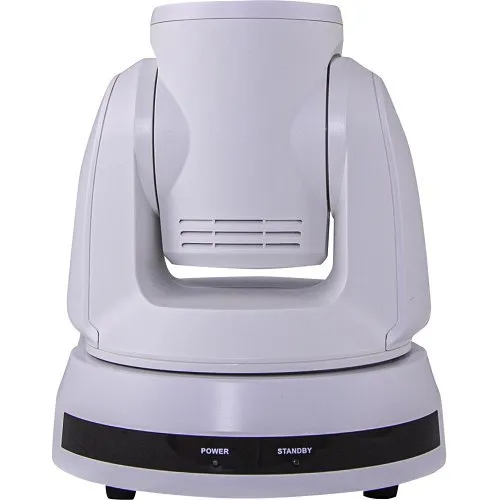

Image of 99-CV620TWI
Product images for Marshall CV620-TWI AI Track and Follow PTZ Camera, Flexible Networkable IP Interface with Simultaneous 3GSDI and HDMI Outputs, 20x Optcal Zoom, White. 2 image(s) available. Click on image to view full size.

Key Features

  • AI-driven auto-track and frame keeps presenters centered with smooth, natural movements, reducing viewer fatigue and eliminating the need for a dedicated camera operator.
  • Single-cable PoE+ network installation simplifies setup and lowers installation cost for conference rooms, lecture capture, and security monitoring.
  • Simultaneous IP (H.264), 3G-SDI and HDMI outputs provide flexible integration with streaming, recording and AV control systems.
  • 20x optical zoom with full HD 1080p60 delivers clear close-ups and readable detail for surveillance, presentations and remote collaboration.
  • Wide 340° pan and 120° tilt with quiet motors enables discreet, continuous coverage across large rooms and venues.

Quick Specifications

Product Model
CV620-TBI
Brand Name
Marshall Electronics
Product Name
20x AI Track & Follow PTZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Designed for conferencing, lecture capture and security monitoring, the Marshall Electronics CV620-TWI AI Track & Follow PTZ camera automates subject tracking so teams can focus on content, not camera control. This professional-grade video conference camera uses AI facial learning to anticipate movement and smoothly follow presenters, reducing jumpy transitions and improving viewer experience. Built on a 2MP Sony sensor, the CV620 outputs crisp Full HD at up to 1080p60 and pairs a 20x optical zoom (5.3–110mm) with smart autofocus to maintain sharp, readable imagery at distance. Integration is straightforward: one PoE+ Ethernet cable handles power, control, tally and IP video, while simultaneous 3G-SDI and HDMI outputs support broadcast and recording workflows. Robust network protocol support (RTSP, SRT, RTMP) and Visca control make it easy to connect with VMS, streaming platforms and third-party control systems for surveillance and remote monitoring. Lightweight and compact, the CV620-TWI is ideal for boardrooms, classrooms, houses of worship and security deployments. Add the CV620-TWI to your AV or security toolkit for reliable, automated tracking and versatile connectivity.

Features

  • AI-driven auto-track and frame keeps presenters centered with smooth, natural movements, reducing viewer fatigue and eliminating the need for a dedicated camera operator.
  • Single-cable PoE+ network installation simplifies setup and lowers installation cost for conference rooms, lecture capture, and security monitoring.
  • Simultaneous IP (H.264), 3G-SDI and HDMI outputs provide flexible integration with streaming, recording and AV control systems.
  • 20x optical zoom with full HD 1080p60 delivers clear close-ups and readable detail for surveillance, presentations and remote collaboration.
  • Wide 340° pan and 120° tilt with quiet motors enables discreet, continuous coverage across large rooms and venues.
General Information
Brand Name Marshall Electronics
Manufacturer Marshall Electronics, Inc
Product Name 20x AI Track & Follow PTZ Camera
Product Type Network Camera
Product Model CV620-TBI
Packaged Quantity 1
Manufacturer Part Number CV620-TWI
Technical Information
Lens Type Varifocal
Optical Zoom 20x
Field of View 60° (Wide) to 3° (Tele)
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 5.3mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type Sony IMX327
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Temperature 32°F (0°C)
Exposure
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/10000 Second
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Lens
Lens Included Yes
Minimum Aperture f/3.6
Maximum Focal Length 110mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 6.9"
Width 7.3"
Height 7.3"
Weight 4.41lb
Power Description
Input Voltage 16V DC
Product Information
Mount Type Ceiling Mount, Wall Mount
Storage
Recording Formats Full HD
Warranty
Limited Warranty 2-Year
Miscellaneous
Features 3D Noise Reduction, Auto Gain Control, Auto Tracking, Automatic White Balance, Microphone In, PTZ
Country of Origin TW
