Marshall CV730-ND3W Optical 30X Zoom 12G-SDI and HDMI Outputs with NDI-HX3 and USB3 Capability, White

SKU: CV730-ND3W Marshall Electronics

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

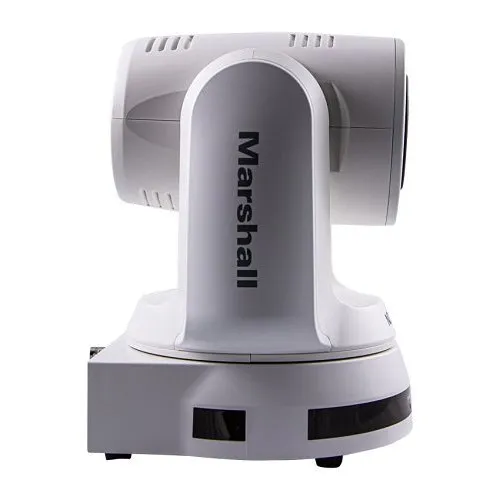

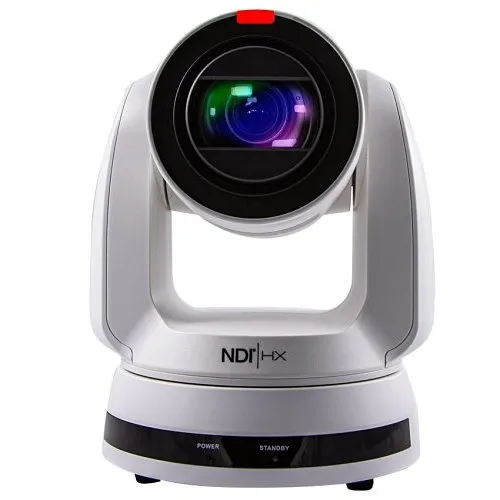

Image of 99-CV730ND3W
Product images for Marshall CV730-ND3W Optical 30X Zoom 12G-SDI and HDMI Outputs with NDI-HX3 and USB3 Capability, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Capture distant detail and maintain smooth framing with a 30x optical zoom and selectable pan/tilt speeds — perfect for surveillance, lecture capture and large-room conferencing.
  • Integrate quickly into IP, SDI and USB workflows using NDI|HX3, 12G-SDI, HDMI and USB3 outputs for low-latency streaming and simplified monitoring systems.
  • Deliver professional UHD 4K60 images from a 9.2MP Sony sensor with excellent low-light sensitivity (0.05 lux) for consistent security and broadcast quality.
  • Reduce installation time and cabling with PoE++ support plus included 12V power and stereo audio I/O for audio monitoring and feed integration.
  • Achieve reliable automated coverage with a 340° pan and 120° tilt range and selectable transition speeds for repeatable presets and patrol routines.

Quick Specifications

Product Model
CV730-ND3W
Brand Name
Marshall Electronics
Product Line
NDI
Product Name
30x UHD60 NDI|HX3 PTZ Camera
View Full Technical Specifications

Product Information Tabs

Overview

For demanding pro AV, security and monitoring deployments, the Marshall CV730-ND3W PTZ camera delivers dependable, broadcast-quality video with the connectivity modern operations require. This Marshall Electronics video conference camera pairs a 9.2MP Sony UHD sensor and 30x optical zoom to capture crisp 4K60 (3840x2160p60) imagery across large spaces and long distances — even in low light (0.05 lux). Built for flexible integration, the CV730-ND3W offers simultaneous 12G-SDI, HDMI, USB3 and NDI|HX3 outputs so operators can stream low-latency, frame-accurate video over IP or connect directly to production switchers and recording equipment. PoE++ power plus a bundled 12V supply and stereo audio I/O speed installation and reduce cabling complexity for surveillance, lecture capture, broadcast and conferencing applications. Robust pan/tilt ranges and adjustable transition speeds enable precise automated monitoring and repeatable preset positions. Choose the CV730-ND3W when you need a versatile PTZ camera that bridges security, conferencing and broadcast workflows — add it to your AV, surveillance or monitoring system today.

Features

  • Capture distant detail and maintain smooth framing with a 30x optical zoom and selectable pan/tilt speeds — perfect for surveillance, lecture capture and large-room conferencing.
  • Integrate quickly into IP, SDI and USB workflows using NDI|HX3, 12G-SDI, HDMI and USB3 outputs for low-latency streaming and simplified monitoring systems.
  • Deliver professional UHD 4K60 images from a 9.2MP Sony sensor with excellent low-light sensitivity (0.05 lux) for consistent security and broadcast quality.
  • Reduce installation time and cabling with PoE++ support plus included 12V power and stereo audio I/O for audio monitoring and feed integration.
  • Achieve reliable automated coverage with a 340° pan and 120° tilt range and selectable transition speeds for repeatable presets and patrol routines.
General Information
Brand Name Marshall Electronics
Manufacturer Marshall Electronics
Product Line NDI
Product Name 30x UHD60 NDI|HX3 PTZ Camera
Product Type Camera
Product Model CV730-ND3W
Product Series CV730
Manufacturer Part Number CV730-ND3W
Technical Information
Optical Zoom 30x
Maximum Aperture f/4.8
Minimum Focal Length 6.5mm
Effective Camera Resolution 9MP
Camera
Image Sensor Type CMOS
Environmental Conditions
Maximum Operating Temperature 40°C
Minimum Operating Temperature 0°C
Exposure
Longest Shutter Speed 1/10,000 sec
Shortest Shutter Speed 1/1 sec
Lens
Minimum Aperture f/1.6
Maximum Focal Length 201.98mm
Physical Characteristics
Color White
Weight 3 kg
Miscellaneous
Features Best of Class, Ease of Use, Flexible Zoom Range, Professional Broadcast Performance
