Marshall CV730-NDIW NDI 4K UHD60 PTZ Camera, 30x Optical Zoom, White

SKU: CV730-NDIW Marshall Electronics

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Marshall CV730-NDIW 8.5 Megapixel 4K Network Camera - Color

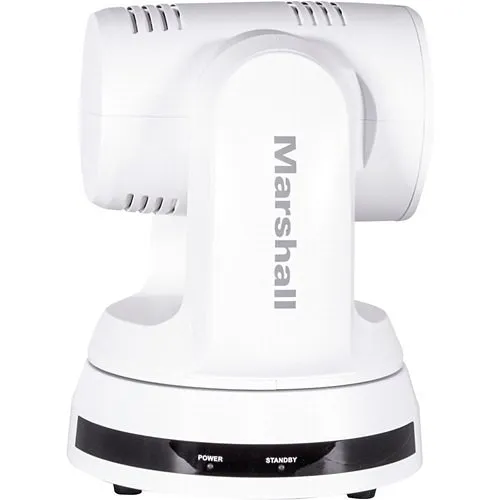

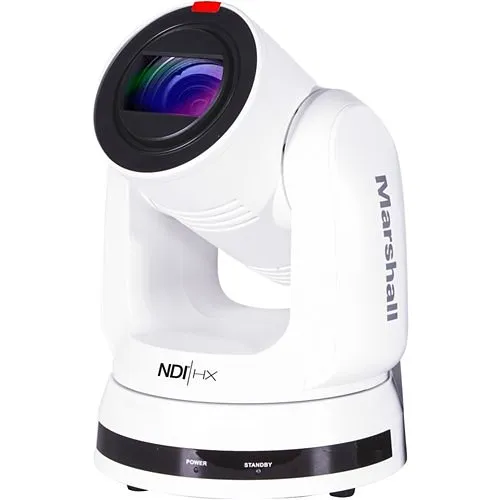

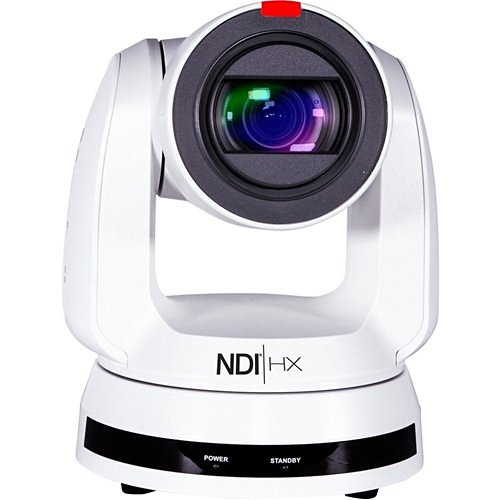

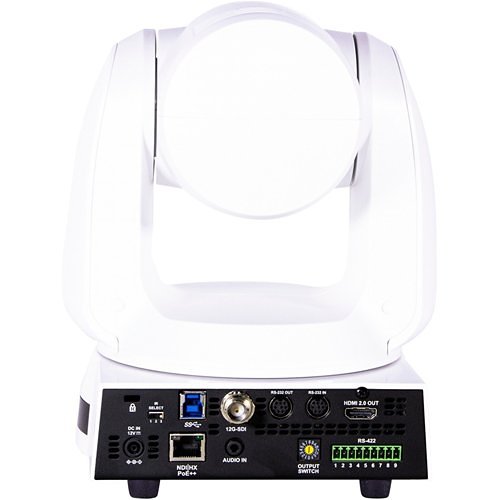

Product images for Marshall CV730-NDIW NDI 4K UHD60 PTZ Camera, 30x Optical Zoom, White. 5 image(s) available. Click on image to view full size.

Key Features

  • Deliver broadcast-quality 4K UHD60 video for clearer meetings, live production, and surveillance
  • 30x optical zoom captures distant details without sacrificing image clarity for monitoring and evidence capture
  • NDI HX over a single Ethernet cable plus 12G-SDI and HDMI2.0 outputs to simplify integration with AV and security systems
  • Smooth PTZ control and 65° horizontal field of view for flexible coverage of conference rooms, auditoriums, and large spaces
  • Professional 1/1.8" Sony sensor for reliable low-light performance and accurate color in demanding environments

Quick Specifications

Brand Name
Marshall Electronics
Manufacturer
Marshall Electronics, Inc
Product Name
30x UHD60 NDI PTZ Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Achieve professional-grade video for conferencing, live production, and security monitoring with the Marshall Electronics CV730-NDIW NDI 4K UHD60 PTZ Camera. Designed for enterprise AV and surveillance applications, this network camera delivers crisp 4K resolution at 60fps and a powerful 30x optical zoom so you can capture fine detail across large rooms or expansive sites. The CV730-NDIW streamlines deployment with NDI HX over a single Ethernet cable while offering simultaneous 12G-SDI and HDMI2.0 outputs for redundant feeds or integration into broadcast and VMS platforms. A 1/1.8" Sony sensor provides strong low-light sensitivity and accurate color reproduction, and a wide 65° horizontal field of view ensures broad scene coverage with smooth pan, tilt, and zoom control. Compact, white housing and wall-mount compatibility make the camera unobtrusive in corporate boardrooms, lecture halls, places of worship, and security operations centers. Upgrade your visual communications and surveillance infrastructure with a versatile PTZ camera built for reliability and clarity—contact us to spec the CV730-NDIW for your next deployment or add it to your AV/security toolkit today.

Features

  • Deliver broadcast-quality 4K UHD60 video for clearer meetings, live production, and surveillance
  • 30x optical zoom captures distant details without sacrificing image clarity for monitoring and evidence capture
  • NDI HX over a single Ethernet cable plus 12G-SDI and HDMI2.0 outputs to simplify integration with AV and security systems
  • Smooth PTZ control and 65° horizontal field of view for flexible coverage of conference rooms, auditoriums, and large spaces
  • Professional 1/1.8" Sony sensor for reliable low-light performance and accurate color in demanding environments
General Information
Brand Name Marshall Electronics
Manufacturer Marshall Electronics, Inc
Product Name 30x UHD60 NDI PTZ Camera
Product Type Network Camera
Product Model CV730-NDIW
Manufacturer Part Number CV730-NDIW
Technical Information
Lens Type Varifocal
Optical Zoom 30x
Field of View Horizontal
Maximum Frame Rate 60fps
Minimum Focal Length 6.5mm
Connectivity Technology Wired
Field of View (Horizontal) 65°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Maximum Operating Temperature 40°C
Minimum Operating Temperature 0°C
Exposure
Minimum Illumination 1 lux
Longest Shutter Speed 1/1 Second
Shortest Shutter Speed 1/10000 Second
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Lens
Lens Included Yes
Maximum Focal Length 202mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 7"
Width 9"
Height 7"
Weight 6.60lb
Power Description
Input Voltage 12V DC
Product Information
Mount Type Wall Mount
Storage
Recording Formats 4K
Video
Analog Video Signal Format 12G-SDI, 3G-SDI, 6G-SDI
Miscellaneous
Features PTZ
Country of Origin TW
