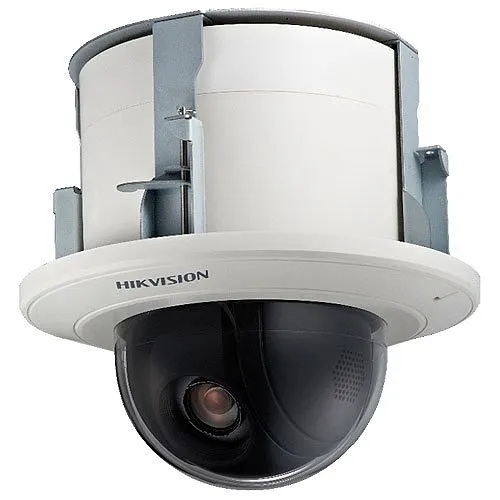

Hikvision DS-2AE5232T-A3 Pro Series TurboHD 2MP 5" Indoor WDR Speed Dome PTZ Analog Camera, 4.8-120mm Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Capture critical detail at distance with 32x optical zoom and a 4.8–120mm varifocal lens for reliable identification and situational awareness
- Maintain clear images in challenging lighting with 120dB True WDR and 3D-DNR for consistent surveillance where highlights and shadows coexist
- Smooth Full HD monitoring at 2MP / 1080p and up to 30fps for crisp evidence-grade video and live monitoring
- Easy retrofit into existing analog systems with TurboHD multiprotocol output (TVI/AHD/CVI/CVBS) to reduce upgrade cost and complexity
- Compact 5" PTZ dome with flexible ceiling/wall/pole mounting and a 36-month limited warranty for dependable, long-term operation
Quick Specifications
- Brand Name
- Hikvision
- Manufacturer
- Hikvision
- Product Name
- 2 MP 32× Indoor TurboHD PTZ Speed Dome
- Product Type
- Analog Camera
Frequently Bought Together
Hikvision DS-2AE5232T-A3 Pro Series TurboHD 2MP 5" Indoor WDR Speed Dome PTZ Analog Camera, 4.8-120mm Lens, White
5 items selected
Total: $1,126.69
Product Information Tabs
Overview
Designed for mission-critical indoor surveillance, the Hikvision DS-2AE5232T-A3 TurboHD PTZ Speed Dome delivers actionable video so security teams can monitor large areas with confidence. This Hikvision PTZ camera combines Full HD 2MP resolution with a powerful 32x optical zoom (4.8–120mm) to identify faces, license plates and incidents from a distance. True 120dB WDR and 3D digital noise reduction ensure usable footage in high-contrast scenes such as lobbies and loading bays, while smooth 30fps output supports real-time monitoring and evidence capture. Multiprotocol TurboHD compatibility (TVI/AHD/CVI/CVBS) simplifies integration into existing analog DVR networks, lowering upgrade costs and deployment time. The 5" dome form factor and multiple mount options make installation flexible across retail, corporate, campus and warehouse environments. For reliable indoor security and video monitoring that balances image quality and system compatibility, choose the Hikvision DS-2AE5232T-A3—contact sales or add to cart to upgrade your facility’s surveillance today.
Features
- Capture critical detail at distance with 32x optical zoom and a 4.8–120mm varifocal lens for reliable identification and situational awareness
- Maintain clear images in challenging lighting with 120dB True WDR and 3D-DNR for consistent surveillance where highlights and shadows coexist
- Smooth Full HD monitoring at 2MP / 1080p and up to 30fps for crisp evidence-grade video and live monitoring
- Easy retrofit into existing analog systems with TurboHD multiprotocol output (TVI/AHD/CVI/CVBS) to reduce upgrade cost and complexity
- Compact 5" PTZ dome with flexible ceiling/wall/pole mounting and a 36-month limited warranty for dependable, long-term operation
| General Information | |
|---|---|
| Brand Name | Hikvision |
| Manufacturer | Hikvision |
| Product Name | 2 MP 32× Indoor TurboHD PTZ Speed Dome |
| Product Type | Analog Camera |
| Product Model | DS-2AE5232T-A3 |
| Product Series | Turbo HD Cameras |
| Manufacturer Part Number | DS-2AE5232T-A3 |
| Technical Information | |
| Lens Type | Varifocal |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 30fps |
| Video Signal Format | NTSC |
| Minimum Focal Length | 4.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 32.4° |
| Field of View (Horizontal) | 55.6° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | No |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | No |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Exposure | |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.4 |
| Maximum Focal Length | 120mm |
| Network & Communication | |
| Remote Management | No |
| Physical Characteristics | |
| Color | White |
| Height | 9.6" |
| Weight | 6.61 lb |
| Form Factor | PTZ |
| Power Description | |
| Input Voltage | 24V AC |
| Product Information | |
| Diameter | 6.1" |
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 2MP |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
| Warranty | |
| Limited Warranty | 36-Month |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
