Hikvision DS-2CD6924G0-IHS Smart Series PanoVu 8MP Outdoor 180° Stitched Panoramic Dome IP Camera, 2.8mm Lenses, White

SKU: DS-2CD6924G0-IHS-28MM MPN: DS-2CD6924G0-IHS 2.8MM Hikvision
Hikvision PanoVu DS-2CD6924G0-IHS 8 Megapixel Network Camera - Dome

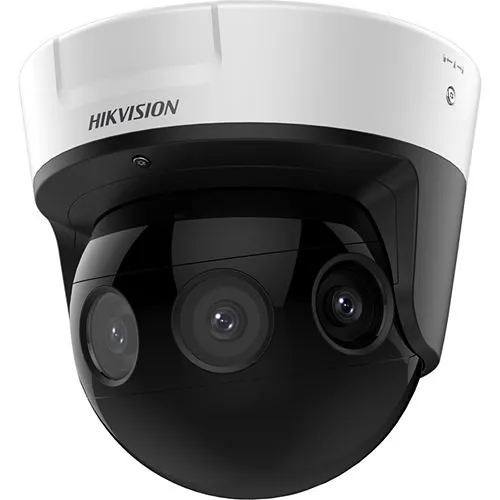

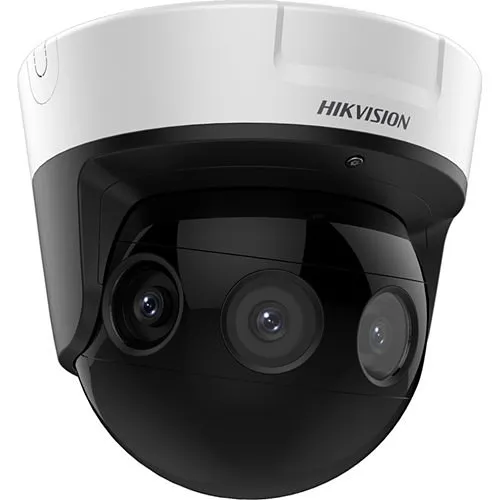

Product images for Hikvision DS-2CD6924G0-IHS Smart Series PanoVu 8MP Outdoor 180° Stitched Panoramic Dome IP Camera, 2.8mm Lenses, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Seamless 180° panoramic coverage stitched from four 2.8mm lenses to eliminate blind spots across large outdoor areas
  • 8MP sensor with H.265+ compression delivers detailed images while minimizing bandwidth and storage costs for efficient network surveillance
  • Rugged, weather- and vandal-resistant housing (IP67, IK10) plus built-in heater for dependable operation down to -40°C
  • Integrated IR illumination up to 20 m (66 ft), WDR and 3D DNR for clear day/night monitoring in challenging lighting
  • Embedded smart analytics (human density counting, public behavior analysis) for proactive security insights and operational reporting

Quick Specifications

Product Model
DS-2CD6924G0-IHS
Brand Name
Hikvision
Product Name
8 MP 180° PanoVu Network Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Protect wide outdoor spaces with the Hikvision DS-2CD6924G0-IHS PanoVu 8MP panoramic dome camera — engineered to provide continuous, single-camera coverage of high-traffic areas for security, surveillance and monitoring applications. The DeepinView network camera stitches four 2.8mm lenses into a seamless 180° panorama, reducing installation complexity and the number of required cameras while capturing fine detail with an 8MP sensor. H.265+ compression preserves image quality and slashes bandwidth and storage demands, making it ideal for networked systems.

Built for real-world deployments, this Hikvision outdoor panoramic camera features IP67 weatherproofing, IK10 vandal resistance and a built-in heater for reliable startup in temperatures down to -40°C. Day/night performance is enhanced by four IR LEDs (up to 20 m), WDR and defog capabilities. On-camera analytics — including smart human density counting and public behavior analysis — support operational monitoring, crowd management and automated alerts.

Choose the DS-2CD6924G0-IHS for streamlined panoramic surveillance across campuses, transit hubs, parking areas and public spaces — contact us to specify or integrate this network camera into your next security project.

Features

  • Seamless 180° panoramic coverage stitched from four 2.8mm lenses to eliminate blind spots across large outdoor areas
  • 8MP sensor with H.265+ compression delivers detailed images while minimizing bandwidth and storage costs for efficient network surveillance
  • Rugged, weather- and vandal-resistant housing (IP67, IK10) plus built-in heater for dependable operation down to -40°C
  • Integrated IR illumination up to 20 m (66 ft), WDR and 3D DNR for clear day/night monitoring in challenging lighting
  • Embedded smart analytics (human density counting, public behavior analysis) for proactive security insights and operational reporting
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name 8 MP 180° PanoVu Network Camera
Product Type Network Camera
Product Model DS-2CD6924G0-IHS
Product Series DeepInView
Manufacturer Part Number DS-2CD6924G0-IHS 2.8MM
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.4
Night Vision Type Infrared
Number of IR LEDs 4
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP68
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1/25 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces DS-2CD6924F-IS 4MMDS-2CD6924F-I(S), DS-2CD6924G0-IHSY(2.8MM)
Physical Characteristics
Color White
Width 8.2"
Weight 6.61 lb
Durability Dust Resistant, Impact Resistant, Vandalproof, Waterproof
Power Description
Input Voltage 12V DC
Product Information
Length 8.1"
Mount Type Wall Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 2MP
Warranty
Limited Warranty 36-Month
Miscellaneous
Features 3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in Heater, Built-in HLC, Day/Night, Defog, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification REACH, RoHS, WEEE
