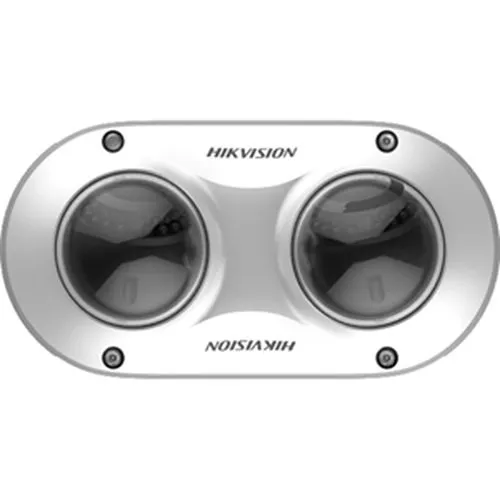

Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White

SKU: DS-2CD6D52G0-IHS-28MM MPN: DS-2CD6D52G0-IHS 2.8MM Hikvision
Discount Hikvision Panoramic DS-2CD6D52G0-IHS 5 Megapixel Network Camera
Product images for Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual-Directional IP Camera, 2.8mm Lens, White. 2 image(s) available. Click on image to view full size.
Sale 22% OFF

Key Features

  • Reduce blind spots and installation costs by covering two wide-angle views with a single dual‑directional camera.
  • Capture crisp 5MP imagery with a 2.8mm wide-angle lens for clear identification across large areas.
  • Save bandwidth and storage with H.265 compression while retaining image quality for long-term surveillance.
  • Rugged outdoor reliability with IP67 weatherproofing and IK10 vandal resistance for perimeter and parking applications.
  • Local failover recording on microSD (up to 256GB) plus smart detections (motion, tamper, privacy masking) for uninterrupted monitoring.

Quick Specifications

Product Model
DS-2CD6D52G0-IHS
Brand Name
Hikvision
Product Name
Dual-Directional Multi-Sensor PanoVu Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Eliminate coverage gaps and simplify deployments with the Hikvision DS-2CD6D52G0-IHS Smart Series PanoVu 5MP Dual‑Directional IP Camera. Built for professional security and surveillance, this panoramic camera delivers two simultaneous wide‑angle views from a single housing—reducing hardware and installation costs while improving situational awareness. The 5MP sensors and 2.8mm lenses provide high-resolution detail across broad scenes, and H.265 video compression lowers bandwidth and storage requirements without sacrificing image quality. Nighttime monitoring is assured with infrared illumination up to 10 meters (33 ft), while 120 dB WDR preserves clarity in mixed lighting. Designed for demanding outdoor environments, the unit meets IP67 ingress protection and IK10 impact resistance, and operates in extreme temperatures from -40°F to 140°F. Built-in microSD storage (up to 256GB), audio I/O, and advanced alarm features (motion detection, tamper, privacy masking) make this Hikvision panoramic camera a flexible option for perimeter, campus, retail, and parking surveillance. Streamline your security footprint and improve monitoring coverage—contact sales to specify the PanoVu for your next deployment.

Features

  • Reduce blind spots and installation costs by covering two wide-angle views with a single dual‑directional camera.
  • Capture crisp 5MP imagery with a 2.8mm wide-angle lens for clear identification across large areas.
  • Save bandwidth and storage with H.265 compression while retaining image quality for long-term surveillance.
  • Rugged outdoor reliability with IP67 weatherproofing and IK10 vandal resistance for perimeter and parking applications.
  • Local failover recording on microSD (up to 256GB) plus smart detections (motion, tamper, privacy masking) for uninterrupted monitoring.
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name Dual-Directional Multi-Sensor PanoVu Camera
Product Type Network Camera
Product Model DS-2CD6D52G0-IHS
Product Series DeepInView
Manufacturer Part Number DS-2CD6D52G0-IHS2.8MM
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Lens Mount Type M12
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 32.81 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP69
Display & Graphics
Maximum Video Resolution 2560 x 1920
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces DS-2CD6D52G0-IHS 4MM, DS-2CD6D82G0-IHS 2.8MM, DS-2CD6D82G0-IHS 4MM
Physical Characteristics
Color White
Width 6.5"
Height 3.3"
Weight 1.70 lb
Durability Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Power Description
Input Voltage 12V DC
Product Information
Length 2.7"
Mount Type Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 5MP
Miscellaneous
Features 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Day/Night, Defog, Electronic Image Stabilization, Heater, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin CN
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification REACH, RoHS, WEEE
