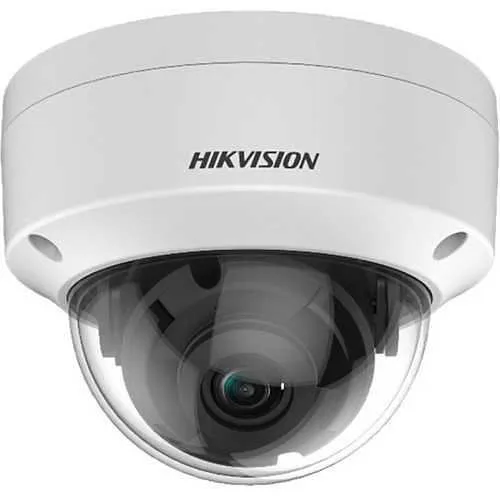

Hikvision DS-2CE57H0T-VPITF TurboHD 5MP Outdoor IR Dome Analog Camera, 2.8mm Lens, White
Image of 1
Key Features
- Deliver crisp evidence-grade video with 5MP (2560 x 1944) resolution for improved identification and incident review
- TurboHD over coax reduces installation cost by using existing cabling for high-definition surveillance
- EXIR 2.0 night vision up to 20 meters ensures reliable 24/7 monitoring in low light
- Rugged IP67 and IK10 ratings protect against weather and vandalism for dependable outdoor operation
- 4-in-1 switchable output (TVI/AHD/CVI/CVBS) maximizes compatibility with most DVRs and future-proofs your CCTV system
Quick Specifications
- Product Model
- DS-2CE57H0T-VPITF
- Brand Name
- Hikvision
- Product Name
- 5 MP Outdoor Analog Dome Camera
- Product Type
- Analog Camera
Frequently Bought Together
Hikvision DS-2CE57H0T-VPITF TurboHD 5MP Outdoor IR Dome Analog Camera, 2.8mm Lens, White
$69.58
13 items selected
Total: $1,726.16
Product Information Tabs
Overview
Protect perimeter and storefronts with clear, cost-effective HD surveillance from the Hikvision DS-2CE57H0T-VPITF TurboHD 5MP outdoor dome analog camera. Designed for security installers and facilities managers, this Hikvision dome camera delivers 5MP (2560 x 1944) resolution and a 2.8mm fixed lens to capture wide-area detail for identification and evidence. TurboHD technology transmits high-definition video over existing coaxial cable, lowering retrofit labor and cabling costs during upgrades.
Built for continuous monitoring, the camera features EXIR 2.0 infrared illumination with up to 20 meters of night visibility and DWDR to balance challenging lighting scenes. With 4-in-1 video output (TVI/AHD/CVI/CVBS) and robust IP67/IK10 ratings, it’s ideal for outdoor CCTV applications where weather resistance and vandal protection matter. The DS-2CE57H0T-VPITF is an economical, high-performance choice for retail, parking lots, and perimeter security. Add it to your system to upgrade surveillance coverage and simplify installation.
Features
- Deliver crisp evidence-grade video with 5MP (2560 x 1944) resolution for improved identification and incident review
- TurboHD over coax reduces installation cost by using existing cabling for high-definition surveillance
- EXIR 2.0 night vision up to 20 meters ensures reliable 24/7 monitoring in low light
- Rugged IP67 and IK10 ratings protect against weather and vandalism for dependable outdoor operation
- 4-in-1 switchable output (TVI/AHD/CVI/CVBS) maximizes compatibility with most DVRs and future-proofs your CCTV system
| General Information | |
|---|---|
| Brand Name | Hikvision |
| Manufacturer | Hikvision |
| Product Name | 5 MP Outdoor Analog Dome Camera |
| Product Type | Analog Camera |
| Product Model | DS-2CE57H0T-VPITF |
| Product Series | Turbo HD Cameras |
| Manufacturer Part Number | DS-2CE57H0T-VPITF 2.8MM |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Video Signal Format | NTSC, PAL |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 110°, 63°, 85° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | No |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1/25 Second |
| Shortest Shutter Speed | 1/50000 Second |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Others | |
| Model Number Replaces | DS-2CE56H0T-VPITF 2.8MM, DS-2CE57H8T-VPITF 2.8MM |
| Physical Characteristics | |
| Color | White |
| Height | 3.2" |
| Weight | 12.77 oz |
| Durability | Dust Resistant, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4" |
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
| Miscellaneous | |
| Features | 2D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
