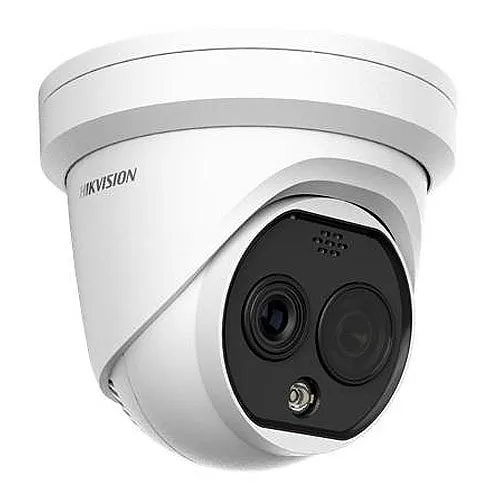

Hikvision DS-2TD1228-2/QA HeatPro Series Thermal and Optical Bi-Spectrum Turret IP Camera, 2.1mm Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Dual thermal and 4MP optical sensors for continuous detection and visual verification, reducing false alarms
- Built-in temperature-exception alarm for early fire detection and industrial monitoring
- Deep learning VCA for accurate perimeter protection and real-time intrusion alerts
- IP67-rated, wide operating temperature range (-40°F to 149°F) for reliable outdoor performance
- H.265 compression, SD local storage and RJ-45 networking for efficient bandwidth use and easy integration
Quick Specifications
- Product Model
- DS-2TD1228-2/QA
- Brand Name
- Hikvision
- Product Name
- Thermal & Optical Bi-Spectrum Network Turret Camera
- Product Type
- Network Camera
Frequently Bought Together
Hikvision DS-2TD1228-2/QA HeatPro Series Thermal and Optical Bi-Spectrum Turret IP Camera, 2.1mm Lens, White
$594.08
11 items selected
Total: $1,471.24
Product Information Tabs
Overview
Protect critical assets day and night with the Hikvision DS-2TD1228-2/QA HeatPro Thermal and Optical Bi-Spectrum Turret IP Camera — engineered for accurate security monitoring and early hazard detection. This HeatPro series network camera combines a thermal sensor with a 4MP optical camera (2.1mm fixed lens) to provide simultaneous heat-based detection and high-resolution visual verification, making it ideal for perimeter protection, industrial sites, parking lots and warehouse monitoring. Advanced deep-learning video content analytics (VCA) delivers precise intrusion and cross-line detection while the temperature-exception alarm supports early fire prevention and process monitoring. With H.265 video compression, SD card local storage and a rugged IP67 enclosure rated for -40°F to 149°F, the unit minimizes bandwidth and performs reliably in harsh outdoor environments. Easy RJ-45 network integration and support for common video formats simplify deployment into existing security systems. Choose the Hikvision DS-2TD1228-2/QA for dependable thermal imaging, surveillance accuracy and 24/7 monitoring — contact us for system quotes or add it to your security solution today.
Features
- Dual thermal and 4MP optical sensors for continuous detection and visual verification, reducing false alarms
- Built-in temperature-exception alarm for early fire detection and industrial monitoring
- Deep learning VCA for accurate perimeter protection and real-time intrusion alerts
- IP67-rated, wide operating temperature range (-40°F to 149°F) for reliable outdoor performance
- H.265 compression, SD local storage and RJ-45 networking for efficient bandwidth use and easy integration
| General Information | |
|---|---|
| Brand Name | Hikvision |
| Manufacturer | Hikvision |
| Product Name | Thermal & Optical Bi-Spectrum Network Turret Camera |
| Product Type | Network Camera |
| Product Model | DS-2TD1228-2/QA |
| Product Series | DeepInView |
| Manufacturer Part Number | DS-2TD1228-2/QA |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | 90.0° × 65.4° (H × V), 117.8° × 70.4° (H × V) |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1 |
| Night Vision Type | Infrared/Color |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.2mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | No |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2688 x 1520 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 149°F (65°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.1mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.2mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | DS-2TD1217-2/PA |
| Physical Characteristics | |
| Color | White |
| Weight | 2.07 lb |
| Durability | Dustproof, Waterproof |
| Form Factor | Turret |
| Product Information | |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 4MP |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Auto Gain Control, Built-in IR LED, Cross Line Detection, HTTPS Encryption, SD Card Local Storage, Surge Protection, Wide Dynamic Range |
