Warehouse: United States

Hikvision DS-2TD2628T-3/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 3.5mm Lens, White

SKU: DS-2TD2628T-3QA MPN: DS-2TD2628T-3/QA Hikvision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Hikvision DS-2TD2628T-3/QA Thermography Bi-Spectrum IP Bullet Camera, 3.5mm Lens

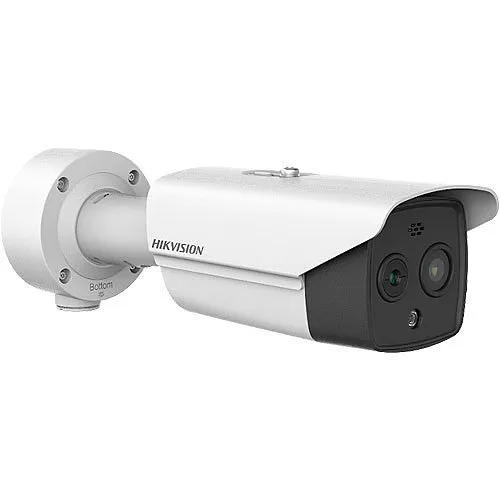

Product images for Hikvision DS-2TD2628T-3/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 3.5mm Lens, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Fast, reliable temperature screening for early fire detection and fever or hotspot monitoring, reducing response time and risk exposure.
  • Bi-spectrum thermography combines a 256×192 thermal sensor with a 4MP optical camera for clear situational awareness day or night.
  • Deep-learning VCA with human/vehicle classification minimizes false alarms and focuses security staff on real threats.
  • Accurate temperature measurement from -20°C to 550°C with ±2°C tolerance for industrial and critical-infrastructure monitoring.
  • PoE networking and IP67 weatherproof housing simplify installation and ensure continuous perimeter surveillance in harsh environments.

Quick Specifications

Product Model
DS-2TD2628T-3/QA
Brand Name
Hikvision
Product Name
Bi-spectrum Thermography Network Bullet Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hikvision DS-2TD2628T-3/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 3.5mm Lens, White

Hikvision DS-2TD2628T-3/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 3.5mm Lens, White

$945.98

Frequently Bought Together (5 items)

6 items selected

Total: $1,671.95

Product Information Tabs

Overview

Protect assets and people with high-confidence thermal surveillance. The Hikvision DS-2TD2628T-3/QA HeatPro bi-spectrum thermography bullet camera is a purpose-built network camera for perimeter security, industrial monitoring, and rapid temperature screening. Its 256×192 VOx thermal sensor and 3.5mm lens detect heat anomalies while the 4MP optical channel (up to 2688×1520) provides sharp visual verification for investigations. Built-in deep-learning VCA enables human/vehicle classification to cut nuisance alarms, and the camera reports temperature exceptions from -20°C to 550°C with ±2°C accuracy—ideal for fire prevention and process monitoring. With PoE support, H.265 compression, SD local recording and an IP67-rated enclosure, this Hikvision thermal imaging camera installs easily and runs reliably in outdoor conditions. Use it for perimeter intrusion detection, industrial equipment monitoring, or mass-entry health screening. Contact your reseller to specify the DS-2TD2628T-3/QA for your security and monitoring deployment.

Features

  • Fast, reliable temperature screening for early fire detection and fever or hotspot monitoring, reducing response time and risk exposure.
  • Bi-spectrum thermography combines a 256×192 thermal sensor with a 4MP optical camera for clear situational awareness day or night.
  • Deep-learning VCA with human/vehicle classification minimizes false alarms and focuses security staff on real threats.
  • Accurate temperature measurement from -20°C to 550°C with ±2°C tolerance for industrial and critical-infrastructure monitoring.
  • PoE networking and IP67 weatherproof housing simplify installation and ensure continuous perimeter surveillance in harsh environments.
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name Bi-spectrum Thermography Network Bullet Camera
Product Type Network Camera
Product Model DS-2TD2628T-3/QA
Product Series DeepInView
Manufacturer Part Number DS-2TD2628T-3/QA
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View 50.0° × 37.3° (H × V) , 84.0° ×43.1° (H × V)
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Video Resolution 256 x 192
Night Vision Type Infrared
Maximum Frame Rate 30fps
Video Signal Format NTSC, PAL
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 2688 x 1520
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 149°F (65°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.6mm, 4.3mm
Lens Included Yes
Maximum Focal Length 4mm
Maximum Thermal Focal Length 3.56mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 3.42lb
Durability Dustproof, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 4MP
Miscellaneous
Features 3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Cross Line Detection, HTTPS Encryption, Human Detection, SD Card Local Storage, Smoke Detector, Surge Protection, White Balance
Indoor/Outdoor Outdoor
Country of Origin CN
