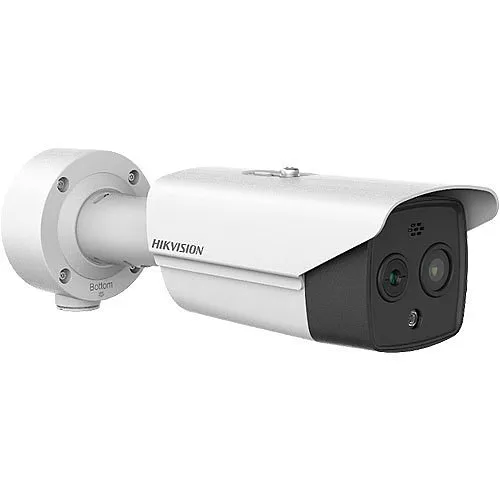

Hikvision DS-2TD2628T-7/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 7mm Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Automated thermography alarms for early fire, overheating and process-anomaly detection, reducing downtime and loss.
- Bi‑spectrum imaging that pairs a 256×192 thermal detector (12 µm, NETD <40 mK) with a 4MP visual sensor for rapid verification and forensic-quality evidence.
- Intelligent analytics including human/vehicle classification, smoking detection and cross-line protection to cut false alarms and streamline monitoring.
- Rugged outdoor design (IP67, IK10) and wide operating range for reliable perimeter security and industrial surveillance in harsh environments.
- Network-ready with RJ-45 connectivity and H.264/H.265 support for efficient recording, remote management and easy integration into existing security systems.
Quick Specifications
- Product Model
- DS-2TD2628T-7/QA
- Brand Name
- Hikvision
- Product Name
- Bi-spectrum Thermography Network Bullet Camera
- Product Type
- Network Camera
Frequently Bought Together
Hikvision DS-2TD2628T-7/QA HeatPro Series Thermography Bi-Spectrum Bullet IP Camera, 7mm Lens, White
$945.98
6 items selected
Total: $1,671.95
Product Information Tabs
Overview
Designed for industrial and perimeter security, the Hikvision HeatPro DS-2TD2628T-7/QA Thermal Bi‑Spectrum Bullet IP Camera delivers fast, actionable temperature monitoring to detect fires, equipment overheating and other thermal events before they escalate. This Hikvision thermal imaging camera combines a 256×192 thermal detector (12 µm, NETD <40 mK) with a 4MP visual sensor and a 7 mm lens to provide both accurate temperature measurement (‑20°C to 550°C) and clear visual verification for incident investigation.
Built for demanding outdoor use, the camera’s IP67 and IK10 rated housing and wide operating temperature range ensure continuous surveillance at warehouses, construction sites, waste facilities and manufacturing plants. Intelligent video analytics — including human/vehicle classification and smoking detection — reduce false positives and prioritize real threats. With standard network interfaces, H.264/H.265 encoding and remote management, it integrates easily into enterprise security deployments.
Choose the Hikvision DS-2TD2628T-7/QA to add thermal monitoring, fire detection and enhanced perimeter surveillance to your security strategy — ideal for facilities, logistics hubs and critical infrastructure. Contact sales or add to your security system today.
Features
- Automated thermography alarms for early fire, overheating and process-anomaly detection, reducing downtime and loss.
- Bi‑spectrum imaging that pairs a 256×192 thermal detector (12 µm, NETD <40 mK) with a 4MP visual sensor for rapid verification and forensic-quality evidence.
- Intelligent analytics including human/vehicle classification, smoking detection and cross-line protection to cut false alarms and streamline monitoring.
- Rugged outdoor design (IP67, IK10) and wide operating range for reliable perimeter security and industrial surveillance in harsh environments.
- Network-ready with RJ-45 connectivity and H.264/H.265 support for efficient recording, remote management and easy integration into existing security systems.
| General Information | |
|---|---|
| Brand Name | Hikvision |
| Manufacturer | Hikvision |
| Product Name | Bi-spectrum Thermography Network Bullet Camera |
| Product Type | Network Camera |
| Product Model | DS-2TD2628T-7/QA |
| Product Series | DeepInView |
| Manufacturer Part Number | DS-2TD2628T-7/QA |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | 53.0° ×28.0° (H × V) |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1 |
| Video Resolution | 256 x 192 |
| Night Vision Type | Infrared/Color |
| Maximum Frame Rate | 30fps |
| Video Signal Format | NTSC, PAL |
| Minimum Focal Length | 6.4mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | No |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2688 x 1520 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 149°F (65°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 6.4mm, 6.9mm |
| Lens Included | Yes |
| Maximum Focal Length | 6.4mm |
| Maximum Thermal Focal Length | 6.86mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 3.42lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 4MP |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Alarm Detection, Audio Compression, Auto Gain Control, Cross Line Detection, Fire Detection, HTTPS Encryption, Human Detection, Smoke Detector, Vehicle Detection |
| Indoor/Outdoor | Outdoor |
| Country of Origin | CN |
| Impact Protection Rating | IK10 |
