Hikvision DS-2XM6522G0-IM/ND 2MP Outdoor WDR Mobile IP Camera, Four-Core M12, PoE, 4mm Lens, Black

SKU: DS-2XM6522G0-IMND4MM MPN: DS-2XM6522G0-IM/ND(4MM) Hikvision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Hikvision DS-2XM6522G0-IM/ND 2 Megapixel Full HD Network Camera - Color

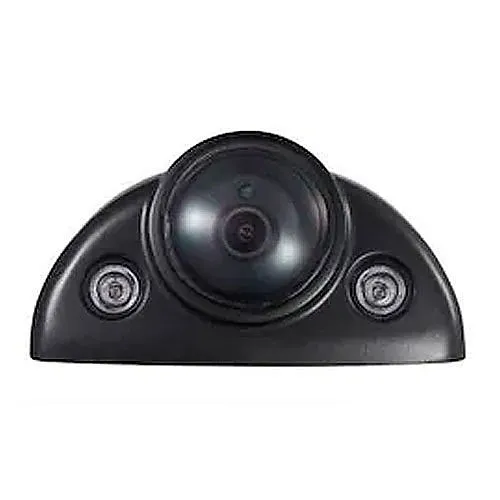

Product images for Hikvision DS-2XM6522G0-IM/ND 2MP Outdoor WDR Mobile IP Camera, Four-Core M12, PoE, 4mm Lens, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Purpose-built mobile surveillance: rugged IP67 ingress protection and IK10 vandal resistance keep your camera operational in harsh vehicle and outdoor environments.
  • Clear evidence capture in all light: 2MP resolution with 120 dB trueWDR ensures readable details in challenging backlight and high-contrast scenes.
  • Efficient storage and bandwidth: H.265+ compression reduces network load and recording costs for fleet-scale deployments.
  • Vehicle-ready connectivity: PoE power and robust M12 four-core interface simplify installation and reliable data/power delivery on moving platforms.
  • Remote monitoring and resilience: advanced streaming, 3D DNR and built-in IR support smooth live view and clear night-time monitoring for security teams on the go.

Quick Specifications

Product Model
DS-2XM6522G0-IM/ND
Brand Name
Hikvision
Product Name
2 MP Mobile Network Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Designed for dependable vehicle and outdoor security, the Hikvision DS-2XM6522G0-IM/ND 2MP mobile IP camera delivers clear, actionable video for fleet, transit and mobile surveillance applications. This Hikvision IP mobile camera pairs 2MP resolution with 120 dB trueWDR to capture readable license plates and faces in high-contrast or backlit scenes. H.265+ compression and 3D DNR lower storage and bandwidth costs while preserving image quality — ideal for multi-camera fleet deployments. Built to perform on the move, the camera features PoE power, a rugged M12 four‑core connector for secure installation, and industrial protection (IP67 / IK10) against dust, water and impact. Night-time monitoring is supported by built-in IR and optimized streaming that maintains smooth live view over weak networks. Manage devices remotely via Hik-Connect for centralized monitoring and rapid incident response. For transportation, law enforcement, delivery fleets or any mobile security application, this unit provides a resilient, high-quality imaging solution — order now to upgrade your vehicle surveillance.

Features

  • Purpose-built mobile surveillance: rugged IP67 ingress protection and IK10 vandal resistance keep your camera operational in harsh vehicle and outdoor environments.
  • Clear evidence capture in all light: 2MP resolution with 120 dB trueWDR ensures readable details in challenging backlight and high-contrast scenes.
  • Efficient storage and bandwidth: H.265+ compression reduces network load and recording costs for fleet-scale deployments.
  • Vehicle-ready connectivity: PoE power and robust M12 four-core interface simplify installation and reliable data/power delivery on moving platforms.
  • Remote monitoring and resilience: advanced streaming, 3D DNR and built-in IR support smooth live view and clear night-time monitoring for security teams on the go.
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name 2 MP Mobile Network Camera
Product Type Network Camera
Product Model DS-2XM6522G0-IM/ND
Product Series Special
Manufacturer Part Number DS-2XM6522G0-IM/ND(4MM)
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Vertical
Video Formats H.264, H.265, MJPEG
Lens Mount Type M12
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant No
NDAA Compliant No
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm, 4mm, 6mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Black
Width 6.4"
Height 4.8"
Weight 11.64oz
Durability Dust Resistant, Impact Resistant, Waterproof
Power Description
Input Voltage 24V DC
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in IR LED, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, Face Detection, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin CN
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification REACH, RoHS, WEEE
