Hikvision DS-K1T804BMFO-STD Value Series Fingerprint Access Control Terminal, M1 Card, LCD Display, Black

SKU: DS-K1T804BMFO-STD MPN: DS-K1T804BMF(O-STD) Hikvision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Hikvision DS-K1T804BMF(O-STD) Value Series Fingerprint Access Control Terminal, M1 Card, LCD Display, Black

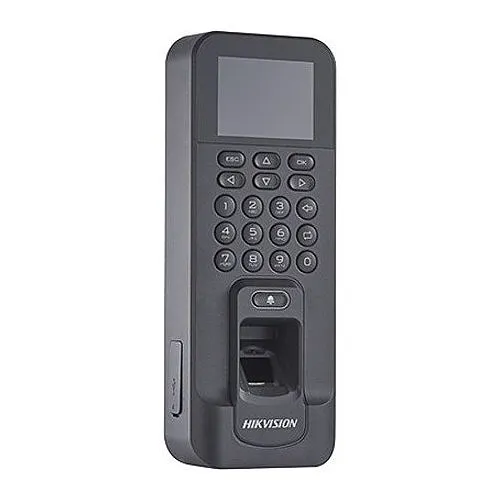

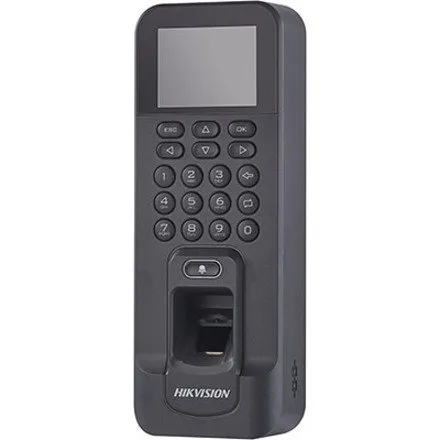

Product images for Hikvision DS-K1T804BMFO-STD Value Series Fingerprint Access Control Terminal, M1 Card, LCD Display, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Strengthen entry security with fast fingerprint authentication and M1 card support to prevent unauthorized access.
  • Scale for enterprise use: supports up to 3,000 users and retains 100,000 event records for audit-ready monitoring.
  • Flexible network integration via TCP/IP, Wiegand and optional Wi-Fi for straightforward installation into existing security systems.
  • Streamline workforce management with built-in attendance tracking and easy access to event logs for compliance and reporting.
  • User-friendly indoor design with a 2.4-inch LCD for quick enrollment, clear prompts and low-maintenance operation.

Quick Specifications

Product Model
DS-K1T804BMF
Brand Name
Hikvision
Product Name
Fingerprint Access Control Terminal (Thermometric Teminal)
Product Type
Biometric Card Reader, Keypad Access Device
View Full Technical Specifications

Product Information Tabs

Overview

Secure and streamline access for offices, server rooms and sensitive areas with the Hikvision DS-K1T804BMFO-STD fingerprint access control terminal. This biometric reader combines fingerprint, M1 proximity card and keypad identification to deliver reliable, convenient entry for staff while reducing tailgating and credential-sharing risks. Designed for business environments, it supports up to 3,000 users and stores as many as 100,000 event records, giving security teams the capacity and retention needed for incident investigation and compliance. The built-in 2.4-inch LCD provides intuitive prompts for rapid enrollment and daily use, while dual connectivity options—Fast Ethernet (TCP/IP), Wiegand and optional Wi‑Fi—allow seamless integration with your existing access control and surveillance infrastructure. Ideal for indoor deployments, the terminal doubles as an attendance and monitoring endpoint, helping HR and security managers reconcile timekeeping and access logs. Choose the Hikvision DS-K1T804BMFO-STD to improve perimeter security, simplify access management and support operational reporting—order now to upgrade entry control across your facility.

Features

  • Strengthen entry security with fast fingerprint authentication and M1 card support to prevent unauthorized access.
  • Scale for enterprise use: supports up to 3,000 users and retains 100,000 event records for audit-ready monitoring.
  • Flexible network integration via TCP/IP, Wiegand and optional Wi-Fi for straightforward installation into existing security systems.
  • Streamline workforce management with built-in attendance tracking and easy access to event logs for compliance and reporting.
  • User-friendly indoor design with a 2.4-inch LCD for quick enrollment, clear prompts and low-maintenance operation.
General Information
Brand Name Hikvision
Manufacturer Hikvision
Product Name Fingerprint Access Control Terminal (Thermometric Teminal)
Product Type Biometric Card Reader, Keypad Access Device
Product Model DS-K1T804BMF
Product Series Pro
Manufacturer Part Number DS-K1T804BMF(O-STD)
Technical Information
Number of Doors 1
Number of Users 3000
Operating Range 1.77"
Application/Usage Door
Identification Method Fingerprint, Key Code, Proximity
Certifications
TAA Compliant No
NDAA Compliant No
Interfaces/Ports
Wiegand Yes
Network (RJ-45) Yes
Network & Communication
Ethernet Technology Fast Ethernet
Others
Model Number Replaces DS-K1T804MF
Physical Characteristics
Depth 8.1"
Width 3"
Height 1.5"
Power Description
Input Voltage 12V DC
Product Information
Display Screen Type LCD
Miscellaneous
Indoor/Outdoor Indoor
Country of Origin CN
