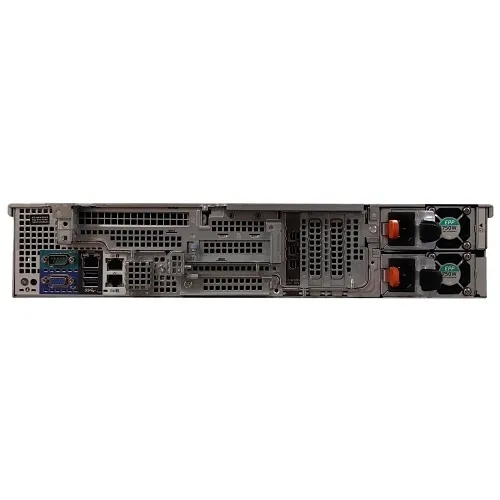

Digital Watchdog DW-BJRR2P120TLX6 Blackjack Rack 2U 12-Bay Server, Linux Ubuntu Desktop 20.04.5 LTS OS, 32GB RAM, Dual Processor, RAID 6, 120TB
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Enterprise-grade 24/7 recording reliability with dual Intel Xeon processors and redundant power to keep critical surveillance online
- Scalable, secure storage: 120TB raw capacity with RAID6 protects video retention and simplifies long-term evidence management
- High-throughput performance: supports up to 600 Mbps of camera video so you can record multi-megapixel and multi-sensor streams without compromise
- Ready-to-deploy: preloaded DW Spectrum with eight recording licenses and Ubuntu 20.04 LTS on a separate NVMe OS drive for fast, secure commissioning
- Service continuity: hot-swappable drives, dual NICs and NDAA/UL/TAA certifications reduce downtime and meet enterprise compliance needs
Quick Specifications
- Product Model
- DW-BJRR2P120TLX6
- Brand Name
- Digital Watchdog
- Product Line
- Blackjack
- Product Name
- DW-BJRR2P120TLX6 Servers
Frequently Bought Together
Digital Watchdog DW-BJRR2P120TLX6 Blackjack Rack 2U 12-Bay Server, Linux Ubuntu Desktop 20.04.5 LTS OS, 32GB RAM, Dual Processor, RAID 6, 120TB
$30,870.17
10 items selected
Total: $40,510.25
Product Information Tabs
Overview
Built for mission-critical security and large-scale surveillance deployments, the Digital Watchdog Blackjack Rack 2U server delivers dependable recording and monitoring for enterprise, campus and city-wide systems. This video surveillance server combines dual Intel Xeon processors with 32GB RAM and a dedicated NVMe OS drive running Linux Ubuntu Desktop 20.04.5 LTS to ensure responsive system management and uninterrupted operation. With 120TB raw internal storage configured in RAID6 and hot-swappable bays, the server protects video evidence while enabling simple expansion and fast drive replacement in the field. Rated for up to 600 Mbps throughput and ONVIF compatibility, it reliably ingests multi-megapixel and multi-sensor camera streams and comes preloaded with DW Spectrum IPVMS plus eight transferable recording licenses to accelerate deployment. Redundant power supplies, dual NICs and a dedicated GPU for client applications reduce single points of failure and streamline monitoring performance. Ideal for enterprise security teams, transit hubs, retail chains and critical infrastructure, the Blackjack Rack server provides the stability and scalability your surveillance program needs—contact us to configure or order for your next security project.
Features
- Enterprise-grade 24/7 recording reliability with dual Intel Xeon processors and redundant power to keep critical surveillance online
- Scalable, secure storage: 120TB raw capacity with RAID6 protects video retention and simplifies long-term evidence management
- High-throughput performance: supports up to 600 Mbps of camera video so you can record multi-megapixel and multi-sensor streams without compromise
- Ready-to-deploy: preloaded DW Spectrum with eight recording licenses and Ubuntu 20.04 LTS on a separate NVMe OS drive for fast, secure commissioning
- Service continuity: hot-swappable drives, dual NICs and NDAA/UL/TAA certifications reduce downtime and meet enterprise compliance needs
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Product Line | Blackjack |
| Product Name | DW-BJRR2P120TLX6 Servers |
| Product Model | DW-BJRR2P120TLX6 |
| Product Series | Rack P |
| Manufacturer Part Number | DW-BJRR2P120TLX6 |
| Minimum Storage Drive Space | 1TB |
| Maximum Supported Storage Capacity | 120TB |
| Technical Information | |
| Video Formats | H.264, MJPEG |
| Audio | |
| Recording Modes | Continuous, Motion detection, Motion Plus Low Res Always, Motion Plus Object, Motion Plus Object Plus Low Res, Object Only, Object Plus Low Res |
| Controllers | |
| RAID Levels | RAID 6 |
| Environmental Conditions | |
| Operating Humidity | 20-90% RH |
| Operating Temperature (T-T) | 41-104°F |
| Interfaces/Ports | |
| Output Ports | Mini DisplayPort |
| Number of Ethernet Ports | 4 |
| License Information | |
| License Quantity | 8 |
| Media & Performance | |
| Data Transfer Rate | 600 Mbps |
| Network & Communication | |
| Remote Management | Yes |
| Ethernet Technology | 1 Gigabit Ethernet |
| Physical Characteristics | |
| Weight | 66 lb |
| Dimensions | 3.41†x 18.97†x 28.4†|
| Software | |
| Software Included | Yes |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, ONVIF, TAA, UL Listed |
| Package Contents | Keyboard, Mouse |
| Operating System Compatibility | Linux |
