Digital Watchdog DWC-MB45WI650TW MEGApix IVA 5MP Bullet Camera, 6-50mm Varifocal Lens, White

SKU: DWC-MB45WI650TW Digital Watchdog

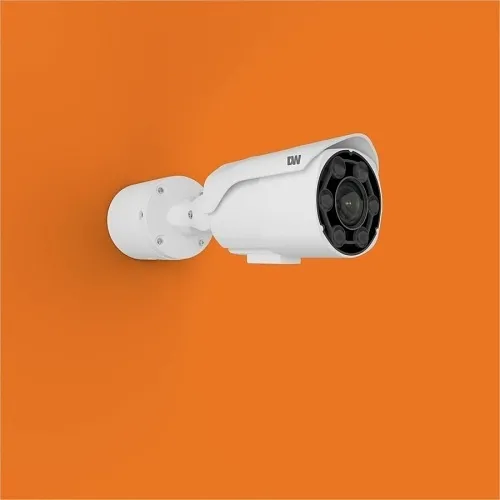

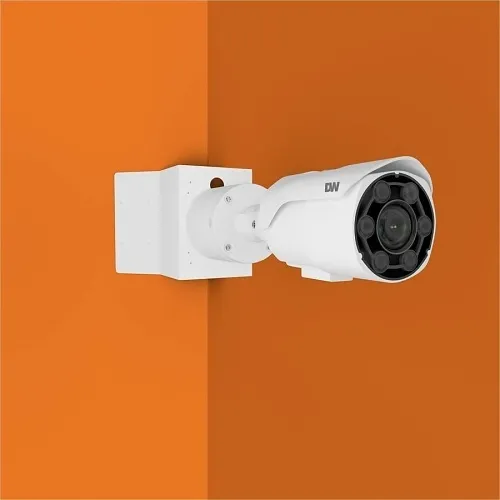

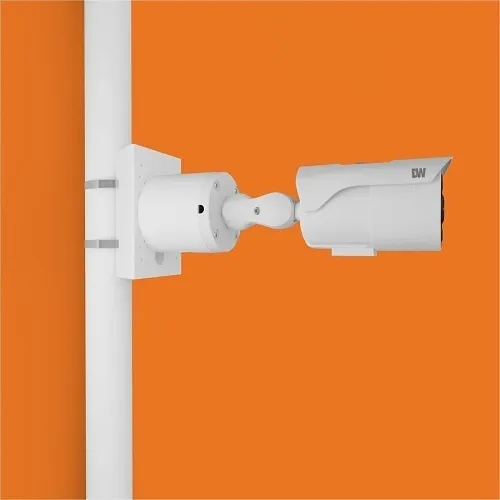

Image of 6K-MB45WI65T
Product images for Digital Watchdog DWC-MB45WI650TW MEGApix IVA 5MP Bullet Camera, 6-50mm Varifocal Lens, White. 4 image(s) available. Click on image to view full size.

Key Features

  • Capture actionable evidence with 5MP resolution at 30fps for crisp, high-detail surveillance across large areas
  • Maintain color imaging in near-total darkness with Star-Light Plus and up to 140 ft IR—better identification and fewer blind spots
  • Reduce false alarms and optimize storage using built-in IVA analytics and smart recording rules
  • Remote framing and focus with a 6–50mm motorized varifocal P-iris lens for long-range monitoring and simplified installation
  • Rugged, all-weather IP66/IK09 housing and -40°F cold-start rating for reliable outdoor security in extreme conditions

Quick Specifications

Product Model
DWC-MB45WI650TW
Brand Name
Digital Watchdog
Product Line
MEGApix
Product Name
5MP color in near-total darkness long-range bullet IP camera with IVA
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect critical sites with analytics-driven, day/night monitoring from the Digital Watchdog MEGApix DWC-MB45WI650TW 5MP bullet camera. Designed for security professionals, this network camera delivers real-time 5MP video at 30fps and long-range coverage using a 6–50mm motorized varifocal P-iris lens—so you can remotely zoom and focus to capture license plates, faces, and perimeter activity with confidence. Star-Light Plus low-light performance preserves color detail where conventional cameras fail, while Intelligent Video Analytics (IVA+) reduces false alarms and triggers smarter recording to save bandwidth and storage.

Built for outdoor surveillance, the IP66/IK09-rated aluminum housing and -40°F cold-start capability ensure continuous operation in harsh environments. Seamless integration with DW Spectrum® and support for H.265/H.264/MJPEG provide flexible streaming and network management for enterprise deployments. Ideal for perimeter protection, parking lots, campuses, and industrial facilities, this Digital Watchdog bullet camera combines advanced monitoring, durability, and remote management to simplify installation and improve situational awareness. Add it to your security system to upgrade monitoring reliability and forensic capability.

Features

  • Capture actionable evidence with 5MP resolution at 30fps for crisp, high-detail surveillance across large areas
  • Maintain color imaging in near-total darkness with Star-Light Plus and up to 140 ft IR—better identification and fewer blind spots
  • Reduce false alarms and optimize storage using built-in IVA analytics and smart recording rules
  • Remote framing and focus with a 6–50mm motorized varifocal P-iris lens for long-range monitoring and simplified installation
  • Rugged, all-weather IP66/IK09 housing and -40°F cold-start rating for reliable outdoor security in extreme conditions
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix
Product Name 5MP color in near-total darkness long-range bullet IP camera with IVA
Product Type Network Camera
Product Model DWC-MB45WI650TW
Product Series MB45
Manufacturer Part Number DWCMB45WI650TW
Supported Network Protocols IPv4
Technical Information
Material Aluminum Die-cast
Lens Type P-iris, Varifocal, Zoom
Protocols Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, uPNP, Zeroconf (AutoIP)
Night Vision Yes
Optical Zoom 8x
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 12V DC
Maximum Aperture f/1.6
Motion Detection Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
American Wire Gauge 18AWG
Minimum Focal Length 6mm
Illumination Distance 140'
Connectivity Technology Wired
Effective Camera Resolution 5MP
Audio
Audio Encoding G.711
Memory Card Slot Yes
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 140 ft
Certifications
Ingress Protection Rating IP66
Display & Graphics
Image Sensor Size 1/2.8"
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90% (Non-condensing)
Operating Temperature (T-T) -40-122°F
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.08 lux (color)
Longest Shutter Speed 1/15 Second
Shortest Shutter Speed Off, x15, x2, x3, x4, x5, x6, x7.5
Aspect Ratio 4:3
Interfaces/Ports
Network (RJ-45) Yes
Number of Audio Line In 1
Number of Audio Line Out 1
Lens
Focus Modes Auto, Manual
Focal Length 6-50mm
Maximum Focal Length 50mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces DWC-MB45W650W, DWC-MB45WI650T, DWC-MPB45WI650TW
Physical Characteristics
Color White
Weight 1.98 lb
Durability Weather Resistant
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type Memory Card
TBD
Amperage 750mA
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Video Management System
Certifications CE, FCC, NDAA, UL Listing
Environmentally Friendly Yes
Impact Protection Rating IK09
Environmental Certification RoHS
