Digital Watchdog DW-BJCX8T-LX Blackjack CX 4K 16-Channel PoE NVR with Virtual Channels, 80Mbps, Linux OS, 8TB HDD
Image of 5
Key Features
- Plug-and-play PoE simplifies installation: 16-channel PoE NVR with 15W per port reduces wiring and speeds deployment for faster monitoring
- Reliable, enterprise-grade recording: 80Mbps throughput and 8TB onboard storage provide continuous 4K surveillance and long retention for critical evidence
- DW Spectrum optimized with cloud management: preloaded DW Spectrum server and lifetime updates enable centralized, scalable security management and remote access
- Hardened Linux Ubuntu OS for stability: quick setup, minimal maintenance, NDAA/TAA compliant for government and enterprise projects
- Proactive alerts and virtual channels: real-time notifications and 8 virtual channels expand camera coverage without extra hardware
Quick Specifications
- Product Model
- DW-BJCX8T-LX
- Brand Name
- Digital Watchdog
- Product Line
- Blackjack
- Product Name
- DW-BJCX Blackjack CX 16-channel PoE NVR with 8 virtual channels
Frequently Bought Together
Digital Watchdog DW-BJCX8T-LX Blackjack CX 4K 16-Channel PoE NVR with Virtual Channels, 80Mbps, Linux OS, 8TB HDD
$3,943.98
14 items selected
Total: $13,097.45
Explore the details
Product information
DW-BJCX8T-LX
Overview
Designed for mission-critical security and efficient surveillance operations, the Digital Watchdog Blackjack CX PoE NVR delivers dependable, easy-to-manage video recording for businesses and integrators. This 16-channel PoE network video recorder comes preloaded and optimized for DW Spectrum, offering rapid deployment with four recording channels active out of the box and lifetime software updates. With up to 80Mbps recording throughput and an 8TB hard drive, the Blackjack CX captures 4K video while maintaining long retention periods for evidence and compliance.
Built on a hardened Linux (Ubuntu) OS, the Blackjack CX prioritizes system stability and fast setup, while 15W-per-port PoE enables simple plug-and-play camera connections. Cloud-managed access, real-time alerts, and support for virtual channels let security teams scale monitoring and respond faster across sites. NDAA/TAA and ONVIF conformance make it suitable for government, retail, education, and enterprise deployments. Backed by a 5-year limited warranty, the Blackjack CX is ideal for integrators needing reliable, scalable surveillance. Order now to streamline your security monitoring and deploy robust video surveillance with minimal downtime.
Features
- Plug-and-play PoE simplifies installation: 16-channel PoE NVR with 15W per port reduces wiring and speeds deployment for faster monitoring
- Reliable, enterprise-grade recording: 80Mbps throughput and 8TB onboard storage provide continuous 4K surveillance and long retention for critical evidence
- DW Spectrum optimized with cloud management: preloaded DW Spectrum server and lifetime updates enable centralized, scalable security management and remote access
- Hardened Linux Ubuntu OS for stability: quick setup, minimal maintenance, NDAA/TAA compliant for government and enterprise projects
- Proactive alerts and virtual channels: real-time notifications and 8 virtual channels expand camera coverage without extra hardware
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | Blackjack |
| Product Name | DW-BJCX Blackjack CX 16-channel PoE NVR with 8 virtual channels |
| Product Type | PoE NVR |
| Product Model | DW-BJCX8T-LX |
| Product Series | CX |
| Manufacturer Part Number | DW-BJCX8T-LX |
| Minimum Storage Drive Space | 8TB |
| Maximum Supported Storage Capacity | 8TB |
| Technical Information | |
| Video Formats | H.264 / AVC, MJPEG |
| Power Consumption | 410.0000W |
| Software Included | Yes |
| Maximum Frame Rate | 30fps |
| Number of Channels | 16 |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Audio | |
| Recording Modes | Motion Plus – Low Resolution Always |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | CE, FCC, NDAA, ONVIF, TAA |
| Controllers | |
| RAID Levels | RAID 0, RAID 1, RAID 5, RAID 6 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 10-90% RH |
| Operating Temperature (T-T) | 32-104°F |

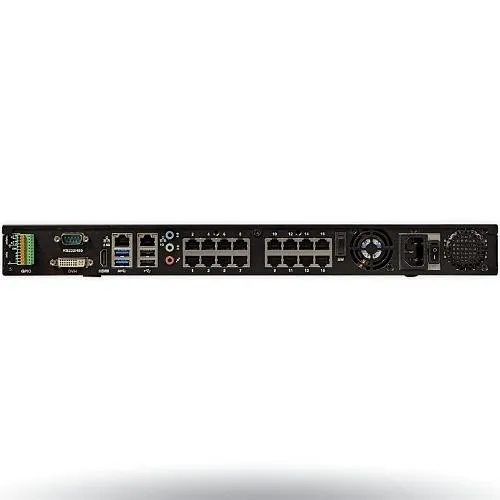

| Interfaces/Ports | |
| Serial Port | Yes |
| Output Ports | DVI-I |
| Number of USB Ports | 1 |
| Number of Audio Line In | 1 |
| Number of Audio Line Out | 1 |
| Number of Ethernet Ports | 2 |
| License Information | |
| License Quantity | 4 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Physical Characteristics | |
| Depth | 13.70" |
| Height | 1.70" |
| Dimensions | 1.75” x 16.92” x 13.7” |
| Power Description | |
| PoE Budget | 15W |
| Input Voltage | 110-240V AC |
| Storage | |
| Hard Drive Capacity | 8TB |
| Number of Hard Drives Supported | 2 |
| Video | |
| Maximum Resolution | 4K |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Compatibility | Blackjack NVRs (DW-BJ) |
| Package Contents | Keyboard, Mouse |
| Environmental Certification | TAA |
