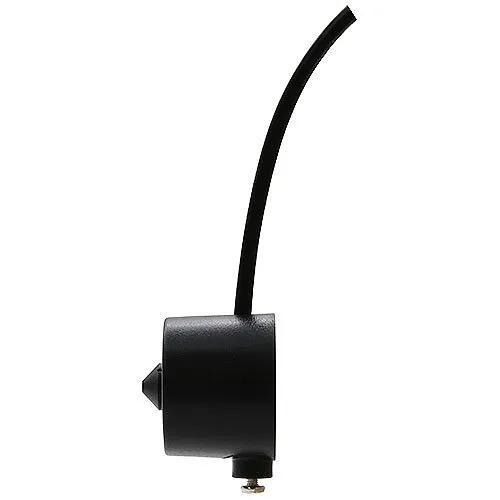

Digital Watchdog DWC-MPH2W28TW MEGApix IVA 2.1MP Mini Pinhole IP Camera, 2.8 mm Fixed Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Discreet, tamper-resistant pinhole design for covert ATM and retail surveillance
- Built-in IVA analytics and Smart DNR reduce false alarms and improve evidence quality
- True WDR and 2.1MP/1080p resolution deliver clear images in challenging lighting and glare
- NDAA-compliant and ONVIF-conformant for secure, standards-based deployments
- H.265/H.264 triple-codec streaming and smart recording optimize bandwidth and storage
Quick Specifications
- Product Model
- DWC-MPH2W28TW
- Brand Name
- Digital Watchdog
- Product Line
- MEGApix
- Product Series
- MPH2
Frequently Bought Together
Digital Watchdog DWC-MPH2W28TW MEGApix IVA 2.1MP Mini Pinhole IP Camera, 2.8 mm Fixed Lens, White
$712.19
12 items selected
Total: $31,091.05
Product Information Tabs
Overview
Protect high-risk points like ATMs, teller windows and retail counters with a compact, professional-grade covert camera designed for reliable close-range monitoring. The Digital Watchdog MEGApix DWC-MPH2W28TW mini pinhole IP camera delivers 2.1MP (1080p) resolution at 30fps and a 2.8mm fixed lens to capture sharp facial and transaction detail without drawing attention. Integrated IVA (Intelligent Video Analytics) reduces false alarms and pairs seamlessly with DW Spectrum IPVMS, enabling rule-based recording and efficient event management.
Built for demanding security environments, the camera offers True Wide Dynamic Range (WDR) for balanced exposure in mixed lighting, Smart DNR for cleaner low-light images, and NDAA compliance for procurement-ready installations. Support for H.265/H.264 and ONVIF profile S ensures flexible network integration and lower storage costs, while a rugged aluminum die-cast housing resists tampering. Whether you’re upgrading ATM monitoring, covert retail loss-prevention, or branch security, this MEGApix pinhole camera delivers discreet, high-quality surveillance. Add the DWC-MPH2W28TW to your security strategy or contact us for integration and deployment guidance.
Features
- Discreet, tamper-resistant pinhole design for covert ATM and retail surveillance
- Built-in IVA analytics and Smart DNR reduce false alarms and improve evidence quality
- True WDR and 2.1MP/1080p resolution deliver clear images in challenging lighting and glare
- NDAA-compliant and ONVIF-conformant for secure, standards-based deployments
- H.265/H.264 triple-codec streaming and smart recording optimize bandwidth and storage
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Product Line | MEGApix |
| Product Model | DWC-MPH2W28TW |
| Product Series | MPH2 |
| Manufacturer Part Number | DWC-MPH2W28TW |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast, Plastic |
| Lens Type | Fixed |
| Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Output Voltage | 12V DC |
| Motion Detection | Yes |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Effective Camera Resolution | 2MP |
| Audio | |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -4-122°F |
| Exposure | |
| Minimum Illumination | 0.065 lux (color) |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.8mm |
| Media & Performance | |
| Network Technology | 10 Base-T Ethernet, 100 Base-T Ethernet |
| Physical Characteristics | |
| Color | White |
| Weight | 0.92 lb |
| Form Factor | Pinhole |
| TBD | |
| Amperage | 300mA |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, UL Listing |
| Country of Origin | KR |
