Digital Watchdog DWC-VSTB04BI MEGApix 4MP WDR Turret IP Camera with Smart IR, 2.8mm Fixed Lens, White

SKU: DWC-VSTB04BI Digital Watchdog

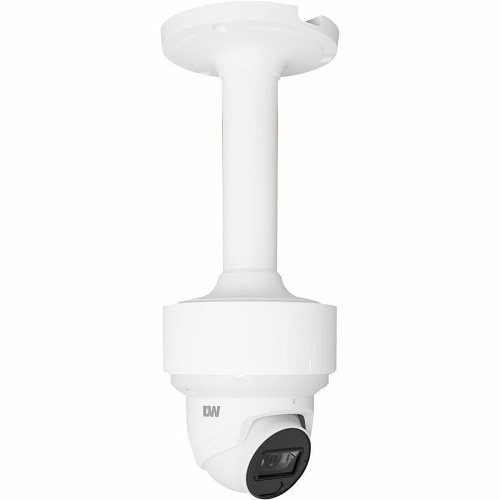

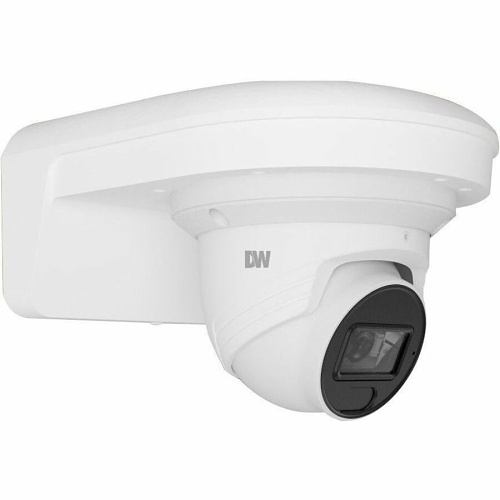

Image of 6K-VSTB04BI
Product images for Digital Watchdog DWC-VSTB04BI MEGApix 4MP WDR Turret IP Camera with Smart IR, 2.8mm Fixed Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Capture actionable detail with 4MP resolution at 30fps for clear identification and smooth live monitoring
  • 100' Smart IR and low-light sensitivity deliver reliable night surveillance without extra lighting
  • True WDR balances bright and dark scenes so critical evidence is visible in challenging lighting
  • Rugged IP67 and IK10-rated housing withstands weather and impact for dependable outdoor security
  • ONVIF compatibility, dual streams and efficient codecs simplify VMS integration and bandwidth control
  • 2.8mm fixed lens with 360° gimbal provides wide coverage and fast, flexible installation for ceilings or walls

Quick Specifications

Brand Name
Digital Watchdog
Manufacturer
Digital Watchdog
Product Line
MEGApix
Product Name
MEGApix 4MP turret IP camera with fixed lens and IR
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for professional security and surveillance deployments, the Digital Watchdog MEGApix DWC-VSTB04BI turret IP camera delivers crisp, dependable monitoring where it matters most. This MEGApix network camera captures 4MP video at 30fps using a 2.8mm fixed lens, making it easy to identify people and incidents across parking lots, building perimeters, and retail environments. True Wide Dynamic Range (WDR) ensures usable footage in high-contrast scenes while Smart IR extends clear night vision up to 100 feet without additional lighting. Built for real-world installations, the aluminum die-cast turret is IP67 weatherproof and IK10 impact resistant for reliable outdoor operation. IT-friendly features such as ONVIF conformance, dual streaming, multiple codecs and robust protocol support simplify integration with existing VMS and network infrastructure. Advanced analytics—line crossing, perimeter intrusion and tamper detection—help reduce false alarms and focus operator attention on threats. Backed by NDAA compliance and a 5-year limited warranty, this camera is a solid choice for enterprise-grade surveillance and monitoring. Add the MEGApix 4MP turret camera to your security system for proven performance and easy deployment.

Features

  • Capture actionable detail with 4MP resolution at 30fps for clear identification and smooth live monitoring
  • 100' Smart IR and low-light sensitivity deliver reliable night surveillance without extra lighting
  • True WDR balances bright and dark scenes so critical evidence is visible in challenging lighting
  • Rugged IP67 and IK10-rated housing withstands weather and impact for dependable outdoor security
  • ONVIF compatibility, dual streams and efficient codecs simplify VMS integration and bandwidth control
  • 2.8mm fixed lens with 360° gimbal provides wide coverage and fast, flexible installation for ceilings or walls
General Information
Brand Name Digital Watchdog
Manufacturer Digital Watchdog
Product Line MEGApix
Product Name MEGApix 4MP turret IP camera with fixed lens and IR
Product Type Network Camera
Product Model DWC-VSTB04BI
Product Series V-Class
Manufacturer Part Number DWC-VSTB04BI
Supported Network Protocols IPv4, IPv6
Technical Information
Material Aluminum Die-cast
Lens Type Fixed
Protocols 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, uPNP
Night Vision Yes
Programmable Yes
Field of View Horizontal, Vertical
Video Formats H.264, MJPEG
Output Voltage 12V DC
Maximum Aperture f/1.6
Motion Detection Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
Built-in Microphone Yes
Minimum Focal Length 2.8mm
Illumination Distance 100'
Connectivity Technology Wired
Effective Camera Resolution 4MP
Audio
Audio Encoding G.711
Memory Card Slot Yes
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 100 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Image Sensor Size 1/3"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0-95% RH (Non-condensing)
Operating Temperature (T-T) -22-140°F
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Minimum Illumination 0.0 lux (B/W), 0.005 lux (color)
Longest Shutter Speed 1/2 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focus Modes Auto, Manual
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Media & Performance
Network Technology 10 Base, 100 Base
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.01 lb
Durability Dustproof, Impact Resistant, Waterproof, Weather Resistant
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Junction Box Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats 2K
TBD
Amperage 416.6mA
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Defog, Dual Stream, Dynamic Noise Reduction, Privacy Masking, Video Content Analytics, Wide Dynamic Range
Certifications CE, FCC, NDAA, ONVIF
Country of Origin TW
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
