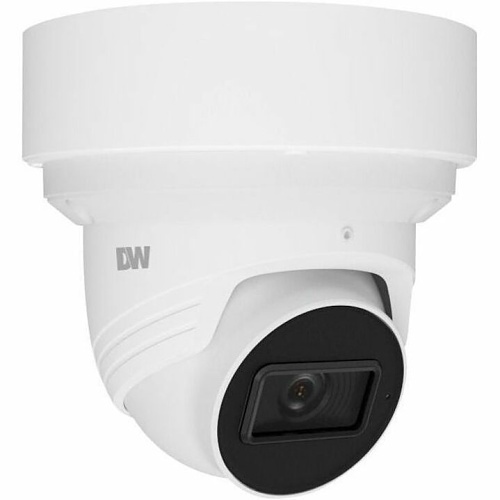

Digital Watchdog DWC-VSTB04MI MEGApix 4MP WDR Turret IP Camera with Smart IR, 2.8-12mm Varifocal Lens, NDAA Compliant, White
Key Features
- Capture actionable detail for identification and incident review with true 4MP resolution and 30 fps performance
- Reduce site visits with motorized 2.8–12mm varifocal lens and autofocus for remote zoom and precise field-of-view adjustments
- Maintain clear images in high-contrast scenes using True WDR and Smart IR up to 164' for reliable day/night surveillance
- Simplify integration and compliance: ONVIF-conformant and NDAA compliant to meet enterprise procurement and multi-vendor systems
- Rugged, tamper-resistant design (IP67, IK10, aluminum die-cast) and a 5-year limited warranty for dependable outdoor monitoring
Quick Specifications
- Brand Name
- Digital Watchdog
- Manufacturer
- Digital Watchdog
- Product Line
- MEGApix
- Product Name
- MEGApix 4MP turret IP camera with a vari-focal lens and IR
Frequently Bought Together
Digital Watchdog DWC-VSTB04MI MEGApix 4MP WDR Turret IP Camera with Smart IR, 2.8-12mm Varifocal Lens, NDAA Compliant, White
$230.82
14 items selected
Total: $15,155.53
Product Information Tabs
Overview
Optimize perimeter security and facility monitoring with the Digital Watchdog MEGApix 4MP turret IP camera. Designed for professional security and surveillance deployments, the DWC-VSTB04MI delivers crisp 4MP imagery at real-time 30 fps so operators and analytics can detect and verify events faster. The motorized 2.8–12mm varifocal lens with autofocus enables remote framing and zoom without on-site adjustments, saving installation time and ongoing maintenance costs.
Engineered for challenging lighting, True WDR plus Smart IR (effective to 164') preserve detail in shadows and highlights across day/night conditions. The camera supports advanced analytics—line crossing, perimeter intrusion and tamper detection—while ONVIF compatibility and NDAA compliance ensure seamless integration with enterprise VMS and networked security systems. Built from aluminum with IP67 and IK10 ratings, it withstands harsh outdoor environments for continuous 24/7 monitoring. Backed by a 5-year limited warranty, the MEGApix turret is ideal for commercial, campus, and critical infrastructure surveillance. Add this Digital Watchdog turret camera to your security solution to improve detection, reduce false alarms, and simplify system deployment.
Features
- Capture actionable detail for identification and incident review with true 4MP resolution and 30 fps performance
- Reduce site visits with motorized 2.8–12mm varifocal lens and autofocus for remote zoom and precise field-of-view adjustments
- Maintain clear images in high-contrast scenes using True WDR and Smart IR up to 164' for reliable day/night surveillance
- Simplify integration and compliance: ONVIF-conformant and NDAA compliant to meet enterprise procurement and multi-vendor systems
- Rugged, tamper-resistant design (IP67, IK10, aluminum die-cast) and a 5-year limited warranty for dependable outdoor monitoring
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Manufacturer | Digital Watchdog |
| Product Line | MEGApix |
| Product Name | MEGApix 4MP turret IP camera with a vari-focal lens and IR |
| Product Type | Network Camera |
| Product Model | DWC-VSTB04MI |
| Product Series | V-Class |
| Manufacturer Part Number | DWC-VSTB04MI |
| Supported Network Protocols | IPv4, IPv6 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Varifocal, Zoom |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, uPNP |
| Night Vision | Yes |
| Optical Zoom | 4.3x |
| Programmable | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, MJPEG |
| Output Voltage | 12V DC |
| Maximum Aperture | f/1.4 |
| Motion Detection | Yes |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.8mm |
| Illumination Distance | 164' |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Audio | |
| Audio Encoding | G.711 |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 164 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/3" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Operating Temperature (T-T) | -22-140°F |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Longest Shutter Speed | 1/2 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.8-12mm |
| Lens Included | Yes |
| Maximum Focal Length | 12mm |
| Media & Performance | |
| Network Technology | 10 Base, 100 Base |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.41 lb |
| Durability | Weather Resistant |
| Form Factor | Turret |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Junction Box Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 2K |
| TBD | |
| Amperage | 666.6mA |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, HTTPS Encryption, Motion Detection, Privacy Masking, Removable IR Cut-off Filter, Tamper Detection, Wide Dynamic Range |
| Certifications | CE, FCC, NDAA, ONVIF |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | RoHS |
