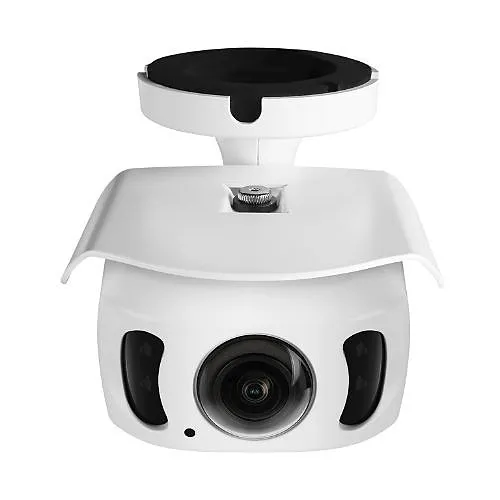

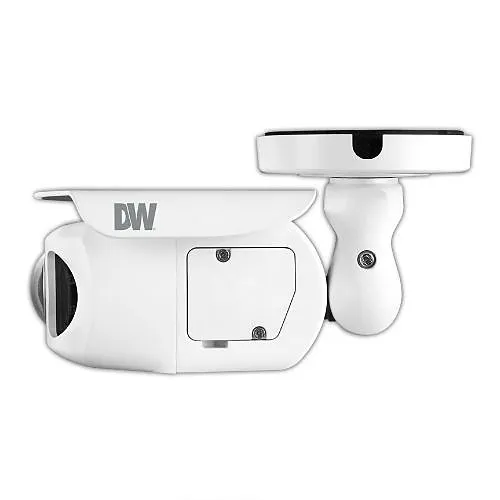

Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Capture actionable wide-area surveillance with a 2.3mm ultra-wide lens that delivers edge-to-edge 4K clarity for situational awareness
- Reduce false alarms and save storage with on-board MEGApix Ai deep learning analytics for accurate object detection and zone-based rules
- Maintain color detail in low light with Star-Light Plus and IR night vision up to 100' for 24/7 monitoring
- Rugged, outdoor-ready design (IP67, IK09) ensures reliable perimeter and site protection in extreme temperatures
- Seamless integration with DW Spectrum and ONVIF-compatible VMS for straightforward deployment and networked security management
- NDAA/TAA-compliant hardware and a 5-year limited warranty for long-term enterprise-grade security reliability
Quick Specifications
- Product Model
- DWC-XSBC08BI
- Brand Name
- Digital Watchdog
- Product Line
- MEGApix Ai
- Product Name
- MEGApix Ai 4K bullet IP camera with ultra-wide fixed lens, IR and an AI engine
Frequently Bought Together
Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
$1,433.65
14 items selected
Total: $20,694.52
Product Information Tabs
Overview
Designed for wide-area security and real-time monitoring, the Digital Watchdog MEGApix Ai 4K bullet IP camera provides crystal-clear situational awareness for parking lots, campuses, retail exteriors and perimeter protection. This panoramic IP camera combines a 2.3mm ultra-wide fixed lens with an 8MP 4K sensor at 30 fps to capture edge-to-edge detail without pixel loss, while Star-Light Plus and IR illumination extend reliable color and black-and-white imaging into near-total darkness. The onboard AI deep learning engine evaluates objects at the edge—reducing false alarms, cutting review time, and optimizing recording storage through smart rules and up to 40 custom detection zones. Built for demanding environments, the aluminum die-cast housing carries IP67 and IK09 ratings and supports temperature extremes for consistent outdoor operation. Network-ready with GigE, ONVIF support and native DW Spectrum integration, deployment is fast and manageable across enterprise security systems. Choose this NDAA/TAA-compliant MEGApix Ai camera to strengthen your surveillance footprint—contact sales to specify this unit for perimeter, parking, or campus monitoring.
Features
- Capture actionable wide-area surveillance with a 2.3mm ultra-wide lens that delivers edge-to-edge 4K clarity for situational awareness
- Reduce false alarms and save storage with on-board MEGApix Ai deep learning analytics for accurate object detection and zone-based rules
- Maintain color detail in low light with Star-Light Plus and IR night vision up to 100' for 24/7 monitoring
- Rugged, outdoor-ready design (IP67, IK09) ensures reliable perimeter and site protection in extreme temperatures
- Seamless integration with DW Spectrum and ONVIF-compatible VMS for straightforward deployment and networked security management
- NDAA/TAA-compliant hardware and a 5-year limited warranty for long-term enterprise-grade security reliability
| General Information | |
|---|---|
| Brand Name | Digital Watchdog |
| Product Line | MEGApix Ai |
| Product Name | MEGApix Ai 4K bullet IP camera with ultra-wide fixed lens, IR and an AI engine |
| Product Type | IP Camera |
| Product Model | DWC-XSBC08BI |
| Manufacturer Part Number | DWC-XSBC08BI |
| Supported Network Protocols | IPv4 |
| Technical Information | |
| Material | Aluminum Die-cast |
| Lens Type | Fixed |
| Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Output Voltage | 12V DC |
| Motion Detection | Yes |
| Maximum Frame Rate | 30fps |
| American Wire Gauge | 18AWG |
| Built-in Microphone | Yes |
| Illumination Distance | 100' |
| Effective Camera Resolution | 8MP |
| Audio | |
| Audio Encoding | G.711 ulaw |
| Memory Card Slot | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 10-90% (Non-condensing) |
| Operating Temperature (T-T) | -40-122°F |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Exposure | |
| Minimum Illumination | 0.0 lux (B/W), 0.15 lux (color) |
| Longest Shutter Speed | 1/15 Second |
| Shortest Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| Image | |
| Aspect Ratio | 4:3 |
| Lens | |
| Focus Modes | Auto, Manual |
| Focal Length | 2.3mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.3mm |
| Media & Performance | |
| Network Technology | 1000 Base-T Ethernet |
| Physical Characteristics | |
| Depth | 3.8" |
| Width | 8.75" |
| Height | 5.03" |
| Weight | 2.13lb |
| Durability | Weather Resistant |
| Form Factor | Bullet, Panoramic |
| Power Description | |
| Frequency | 50 Hz |
| Input Voltage | 12V DC |
| TBD | |
| Amperage | 1.83A |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | CE, FCC, NDAA, ONVIF, TAA, UL Listing |
| Impact Protection Rating | IK09 |
